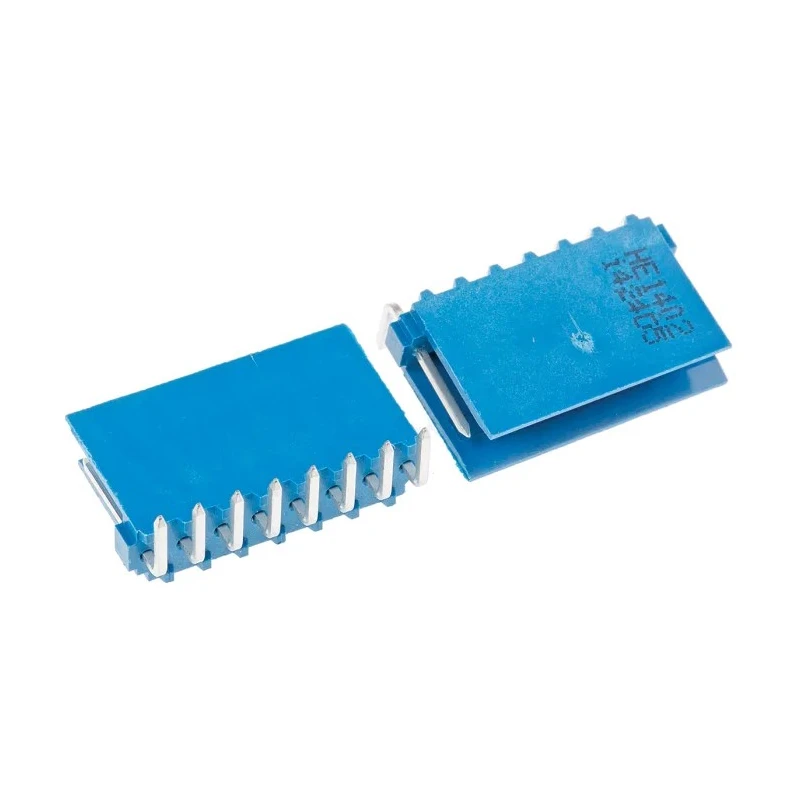

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole Shrouded PCB Header 8 Contacts 2.54 mm Pitch HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- The shrouded design protects pins during handling and mating.
- Thermoplastic housing supports operating temperatures from -40°C to 105°C.
- Compatible with AMPMODU HE14 IDC receptacles for wire-to-board connections.
- Phosphor bronze contacts plated with tin ensure excellent conductivity.
- Integrated friction lock secures mating connection reliably.
- Rated for 3A current and 500V voltage applications.
- Single row with 2.79 mm tail pin length for solder termination.
- Suitable for automotive, industrial, telecommunications, medical, and computing equipment.
Product Description
TE Connectivity HE14 Shrouded PCB Header, model HE14, is a high-quality right angle through hole connector featuring 8 contacts on a 2.54 mm pitch in a single row configuration. It features a blue high-temperature UL 94V-0 rated thermoplastic housing for excellent durability and insulation.
The shrouded design protects the male phosphor bronze contacts which are tin plated for corrosion resistance and improved electrical performance. The integrated friction lock mechanism ensures secure mating with AMPMODU HE14 IDC receptacles designed for terminating discrete wires or 2.54 mm centreline ribbon cables.
Designed to operate reliably at currents up to 3 amperes and withstand voltages up to 500 volts, this PCB header is capable of functioning in temperatures ranging from -40°C to 105°C, making it suitable for various industrial and commercial applications.
Applications include use in automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and household appliances. The robust construction and reliable connection make it ideal for demanding environments requiring accurate signal and power transmission.
The right angle orientation and through hole mounting type simplify PCB layout in compact assemblies, while polarization prevents mismating to enhance system reliability. The shrouded design protects pins during handling and mating.
Thermoplastic housing supports operating temperatures from -40°C to 105°C. Compatible with AMPMODU HE14 IDC receptacles for wire-to-board connections. Phosphor bronze contacts plated with tin ensure excellent conductivity.
Integrated friction lock secures mating connection reliably. Rated for 3A current and 500V voltage applications. Single row with 2.79 mm tail pin length for solder termination. Suitable for automotive, industrial, telecommunications, medical, and computing equipment.
Browse the TE Connectivity range and PCB Headers category on EnvMart for additional connectors and compatible accessories to complement your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 500V.
This model is rated for a maximum current of 3A.
The pitch size of the contacts is 2.54 mm.
This connector uses through hole mounting type.
The housing is made of thermoplastic, and the contacts are phosphor bronze plated with tin.
It operates reliably within a temperature range of -40°C to 105°C.
The HE14 series header features 8 contacts.
The tail pin length for solder termination is 2.79 mm.
Yes, it is compatible with AMPMODU HE14 IDC receptacles for wire-to-board connections.
This PCB header has a right angle orientation.
This model is suitable for automotive, industrial, telecommunications, medical, and computing equipment applications.
It features an integrated friction lock that secures the mating connection reliably.
