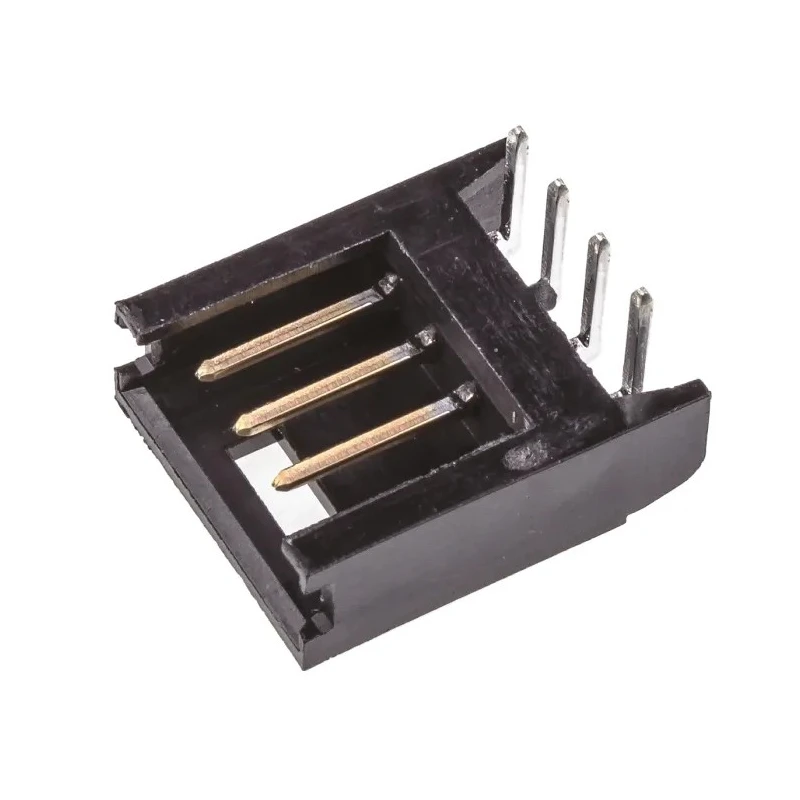

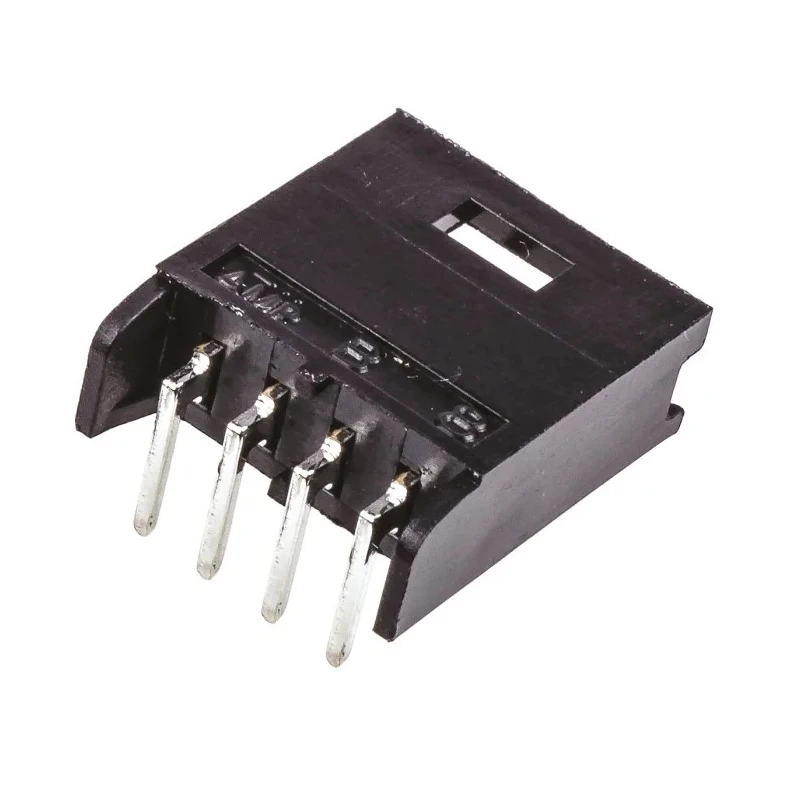

TE Connectivity AMPMODU Mod II 2.54 mm Shrouded Right Angle Through Hole PCB Header, 4 Contacts, 1 Row, Brass Gold 280378-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | 280378-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- The PCB header features brass contacts with gold plating for excellent conductivity and corrosion resistance.
- Shrouded housing provides pin protection and ensures correct mating alignment.
- Right angle orientation and through hole mount type allow robust PCB connection.
- Operating temperature range from -65°C to 105°C ensures reliable performance in harsh conditions.
- The connector system incorporates a detent positive locking mechanism for secure connections.
- Ideal for automotive controls, industrial equipment, computers, telecommunications, medical instruments, and storage devices.
- Offers a voltage rating of 750V for stable electrical performance.
- Tail pin length is 3.5mm, supporting secure solder termination.
Product Description
TE Connectivity 280378-2 AMPMODU Mod II 2.54 mm Shrouded PCB Header is a right angle through-hole connector with 4 contacts and a single row configuration. Designed for board-to-board and wire-to-board applications, this header provides reliable electrical connections with brass contacts plated in gold for superior conductivity and resistance to corrosion. The shrouded design offers pin protection and polarization to prevent mismatching during assembly.
Constructed with a thermoplastic housing, this connector supports high durability and insulation properties under a wide operating temperature range from -65°C to 105°C, making it suitable for demanding industrial environments. The tail pin length of 3.5mm supports secure soldered connections, ensuring mechanical stability on the PCB.
The connector operates reliably at voltages up to 750V and features a detent positive locking mechanism that ensures secure mating with compatible connectors. The right angle and through-hole mounting further enhance mechanical robustness, suitable for applications involving vibration or mechanical stress.
This AMPMODU Mod II series header is widely used across various industries including automotive controls, industrial test equipment, computer hardware, telecommunications, medical instrumentation, and storage devices. Its compact 2.54 mm pitch and single-row layout optimize space while maintaining electrical performance.
Brass contacts with gold plating ensure excellent electrical conductivity and corrosion resistance. Shrouded housing design provides pin protection and prevents mismating. Right angle through-hole mount provides robust PCB connection.
Wide operating temperature range from -65°C to 105°C for reliable performance. Detent positive locking for secure and stable connector mating. Suitable for automotive, industrial, computing, telecom, medical, and storage applications.
Explore more high-quality PCB connectors and components at EnvMart to support your industrial and commercial electronic assembly requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 750V, ensuring stable electrical performance in various applications.
This model operates reliably within a temperature range of -65°C to 105°C, making it suitable for harsh environments.
The header features 4 contacts in a single row configuration, designed for efficient electrical connectivity.
It supports through-hole mounting, providing a robust connection to the PCB.
The housing is made from thermoplastic, while the contacts are brass with gold plating for excellent conductivity and corrosion resistance.
The tail pin length is 3.5mm, which supports secure solder termination on the PCB.
Yes, it incorporates a detent positive locking mechanism to ensure secure connections during use.
This header is ideal for automotive controls, industrial equipment, computers, telecommunications, medical instruments, and storage devices.
The pitch size of this model is 2.54 mm, optimizing space while maintaining electrical performance.
This connector is shrouded, providing pin protection and preventing mismating during assembly.
It supports both board-to-board and wire-to-board connections, making it versatile for various applications.
The country of origin for this PCB header is India.
