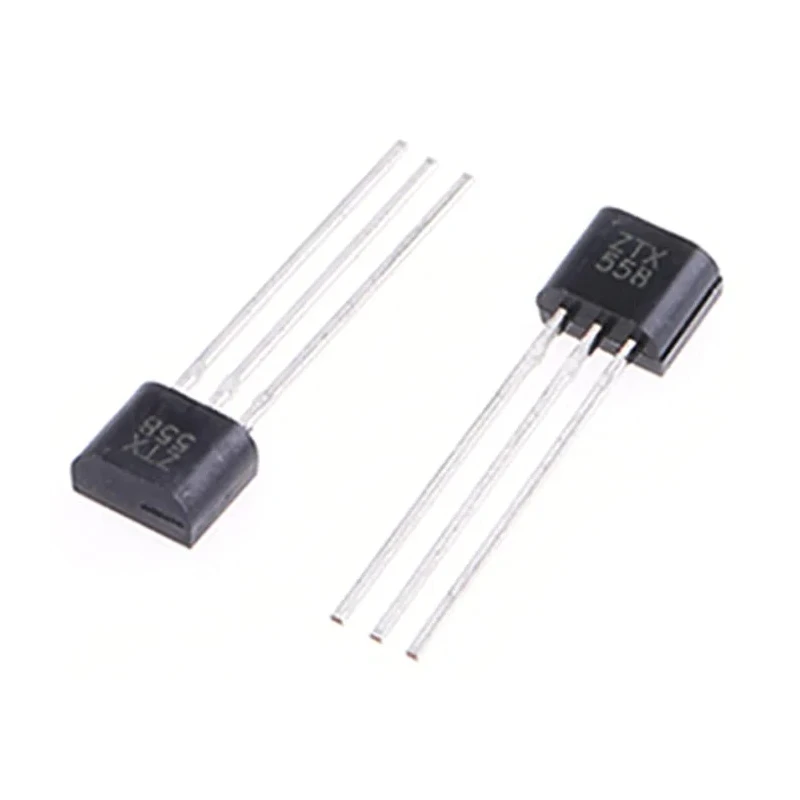

DiodesZetex High Voltage PNP Transistor ZTX558, 200 mA, 400 V, TO-92 Package

DiodesZetex ZTX558 is a high voltage PNP bipolar transistor designed for industrial and commercial electronic applications requiring reliable high voltage switching and amplification. Featuring a TO-92 package with a compact 3-pin layout, it is ideal for through-hole mounting in printed circuit boards.

This transistor supports a maximum collector current of 200 mA and withstands a collector-emitter voltage of up to 400 V, making it suitable for high voltage signal control circuits and power applications. The device dissipates up to 1 watt of power, operating efficiently over a broad temperature range from -55 degrees Celsius to 200 degrees Celsius, ensuring stability in harsh environments.

With a minimum DC current gain (hFE) of 100, the ZTX558 transistor provides strong amplification for signal fidelity. Additionally, it performs up to a transition frequency of 50 MHz, making it suitable for fast switching roles in electronic equipment.

The device meets RoHS compliance standards, supporting usage in environmentally conscientious designs. It is a single transistor configuration optimized for PNP polarity applications.

TO-92 package and 3-pin through-hole mount design. High voltage capability with 400 V collector-emitter voltage rating. Maximum collector current of 200 mA. Power dissipation rating of 1 watt. Wide operating temperature range from -55°C to 200°C.

Minimum current gain (hFE) of 100 for reliable amplification. Maximum transition frequency of 50 MHz suitable for switching. RoHS compliant for environmental safety.

This transistor is widely used in industrial electronics, communication equipment, and power regulation circuits. It fits well within electronic component inventories requiring robust performance and adherence to modern safety standards. Browse the Bipolar Transistors category at EnvMart for compatible components and advanced semiconductor devices.
