| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5818 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N581x |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 875mV |

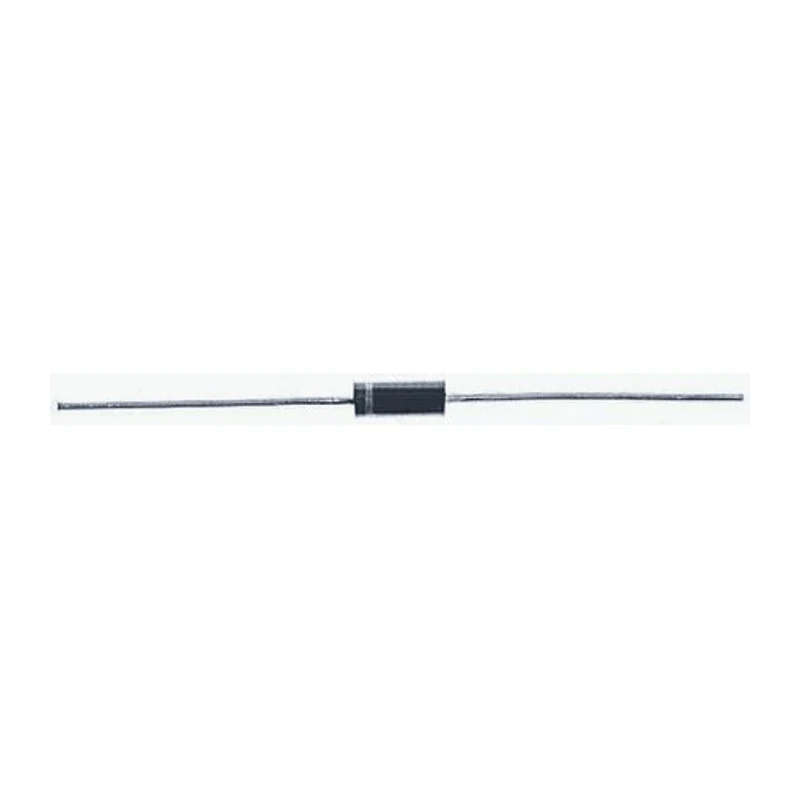

Taiwan Semiconductor 1N5818 Schottky Diode Rectifier delivers reliable performance with a peak reverse repetitive voltage of 30 V and maximum continuous forward current of 1 A. Its through hole DO-41 package offers easy mounting in a variety of electronic devices. Designed for low power loss, the Schottky barrier diode features a low forward voltage of 875 mV to improve energy efficiency.
The diode supports a wide operating temperature range from -65°C to 125°C, making it suitable for various industrial and automotive environments. It complies with the AEC-Q101 automotive standard, assuring quality and durability in vehicle electronics.
This 2-pin diode has compact physical dimensions of 5.2 mm length, 2.7 mm width and height, and a pin diameter of 2.7 mm, facilitating integration in tight circuit layouts. With a peak non-repetitive forward surge current of 30 A and a peak reverse current of only 1 mA, it ensures robust operation and low leakage currents.
Applications include power management, rectification in power supplies, and protection circuits in industrial, automotive, and commercial electronic systems. The Taiwan Semiconductor 1N5818 is ideal for use where efficient and reliable rectification is required.
Compact through hole DO-41 package suitable for PCB mounting. Peak non-repetitive forward surge current of 30 A. Low forward voltage drop of 875 mV optimizes power efficiency. Wide operating temperature range from -65°C to 125°C.
Compliant with automotive standard AEC-Q101. Physical dimensions: Length 5.2 mm, Diameter and Width 2.7 mm. Peak reverse current of 1 mA ensures minimal leakage. Robust construction suitable for industrial and automotive electronics.
Single diode configuration ideal for rectification applications. Explore a wide range of high-quality semiconductor components and diodes at EnvMart for your electronic component and power connector needs.
