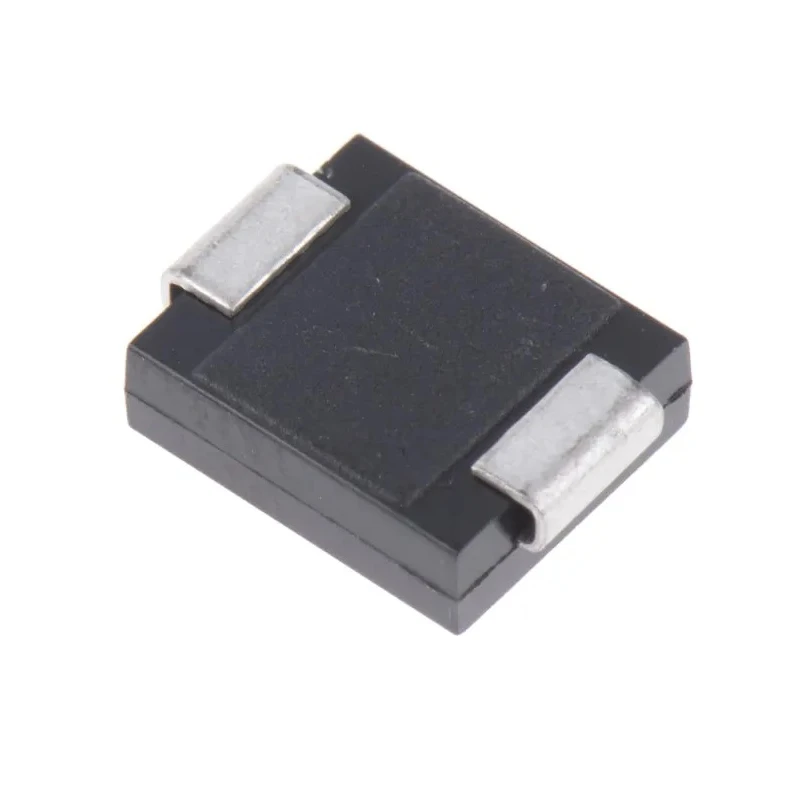

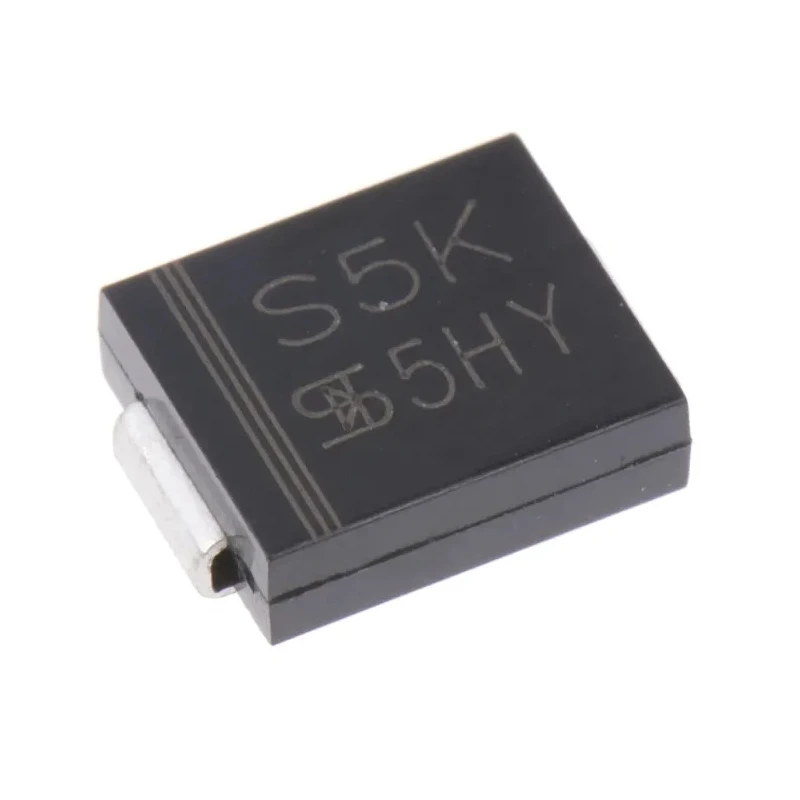

Taiwan Semiconductor 800 V 5 A Diode Recovery 2-Pin DO-214AB S5K

Taiwan Semiconductor S5K Diode Recovery 2-Pin DO-214AB is a high-performance rectifier diode designed for power semiconductor applications. It features a surface mount DO-214AB package, making it suitable for modern printed circuit boards requiring compact form factors.

With a maximum continuous forward current of 5 amperes and peak reverse repetitive voltage of 800 volts, this diode is ideal for power conversion, switching, and rectification in industrial, automotive, and consumer electronics sectors.

The recovery-type diode delivers a peak reverse recovery time of 1500 nanoseconds, contributing to efficient switching performance and reduced energy losses. It operates over a broad temperature range from -55°C to 150°C, enabling reliable operation in harsh environments.

The device's maximum forward voltage of 1.15 volts minimizes conduction losses, enhancing overall system efficiency. Its peak non-repetitive forward surge current rating of 100 amperes ensures robustness against transient current spikes.

The diode measures 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, making it suitable for use in compact electronic assemblies. The 2-pin configuration is optimized for surface mounting onto PCBs, facilitating automated assembly processes.

This product is commonly used in industrial power supplies, automotive electronic systems, and consumer electronics for power rectification and voltage regulation tasks. Its design emphasizes reliability, durability, and efficiency critical for demanding semiconductor applications.

Maximum continuous forward current of 5 amperes for reliable operation. Peak reverse repetitive voltage rated at 800 volts. Recovery type rectifier diode designed for power applications. Compact surface mount package DO-214AB with 2 pins for easy PCB mounting.

Peak reverse recovery time of 1500 nanoseconds to ensure efficient switching. Operates reliably from -55°C to 150°C ambient temperatures. Maximum forward voltage drop of 1.15 volts to minimize power loss. Peak non-repetitive forward surge current of 100 amperes for transient durability.

Compact dimensions support integration in space-constrained designs. Explore the full range of semiconductor components and power rectifiers at EnvMart for your next industrial or electronic project.
