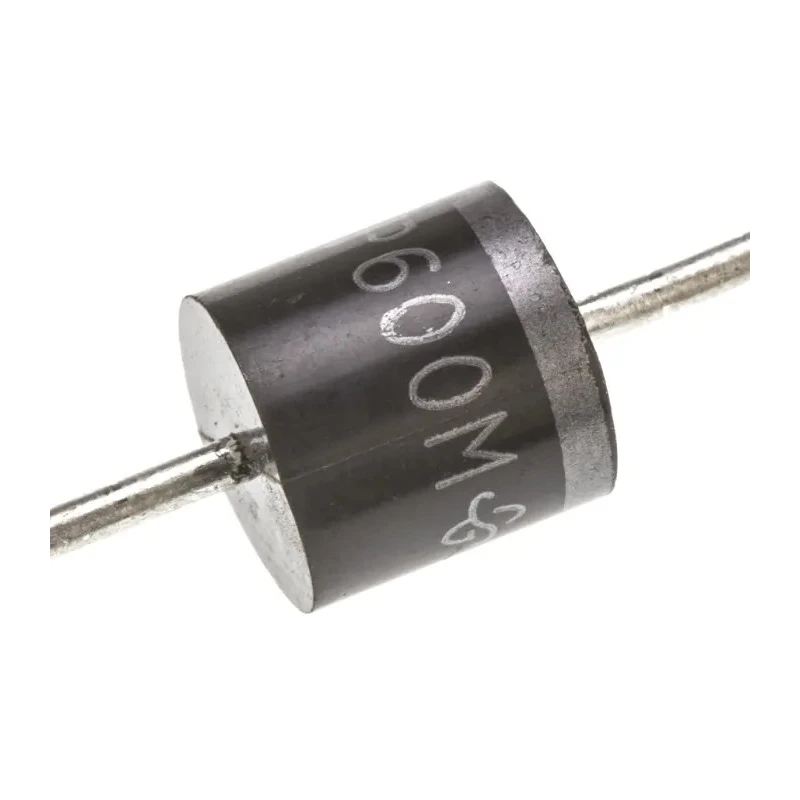

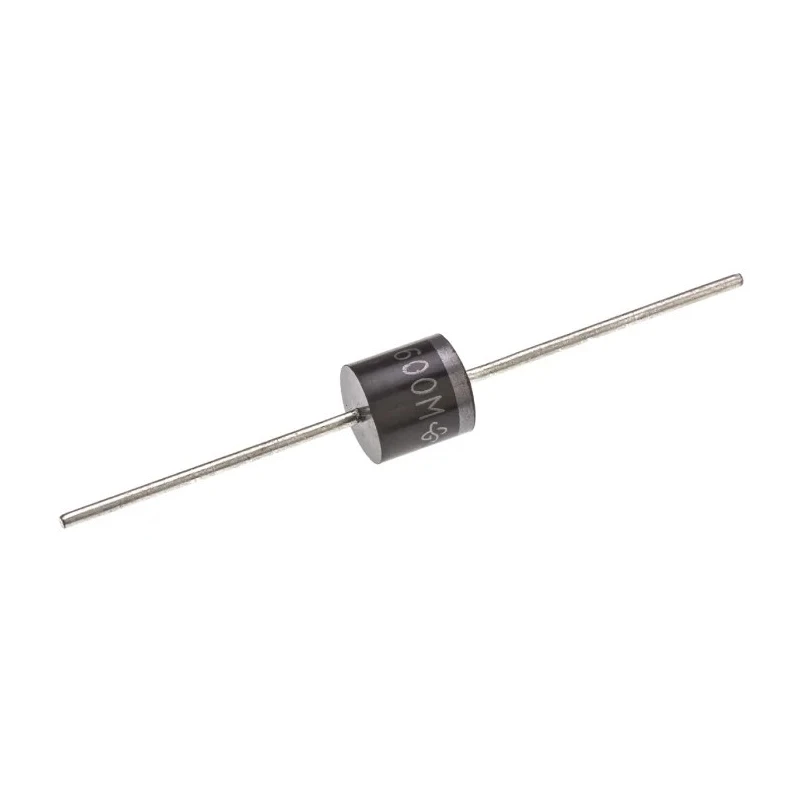

Vishay 1 kV 6 A General Purpose Through Hole Diode P600 Package P600M-E3/54

Vishay P600M-E3/54 is a general purpose silicon rectifier diode housed in a P600 epoxy plastic package designed for through hole mounting. This diode supports continuous forward current up to 6 A and operates with a peak repetitive reverse voltage of 1000 V. Its low forward voltage drop and low leakage current make it ideal for power supply rectification, inverters, converters, and freewheeling diode applications in electronic, industrial, and power management systems.

The diode features a robust void-free molded epoxy body meeting UL 94 V-0 flammability rating, with matte tin plated leads solderable per industry standards. It is rated for a wide operating junction temperature range from -50°C up to 150°C, supporting reliable performance in diverse environments.

Key electrical characteristics include a maximum forward voltage of 1.4 V, peak non-repetitive surge current of 400 A, and a fast peak reverse recovery time of 2.5 μs, enabling efficient switching and performance in transient conditions. The molded package dimensions measure 9.1 mm in height, length, width, and diameter, ensuring compact size for PCB integration.

The device conforms to RoHS compliance and includes a color band for cathode polarity orientation. This diode is a suitable choice for industrial power electronics, power rectification circuits, and renewable energy inverter systems, delivering dependable performance and durability.

The diode supports maximum continuous forward current of 6 A. Peak reverse voltage rating of 1 kV ensures high voltage blocking capability. Robust epoxy package provides mechanical protection and thermal stability. Low forward voltage drop reduces power losses in circuits.

Fast recovery time minimizes switching losses and improves efficiency. Wide operating temperature range accommodates harsh industrial environments. Solderable matte tin leads ease assembly and connection. RoHS compliant and environmentally friendly construction.
