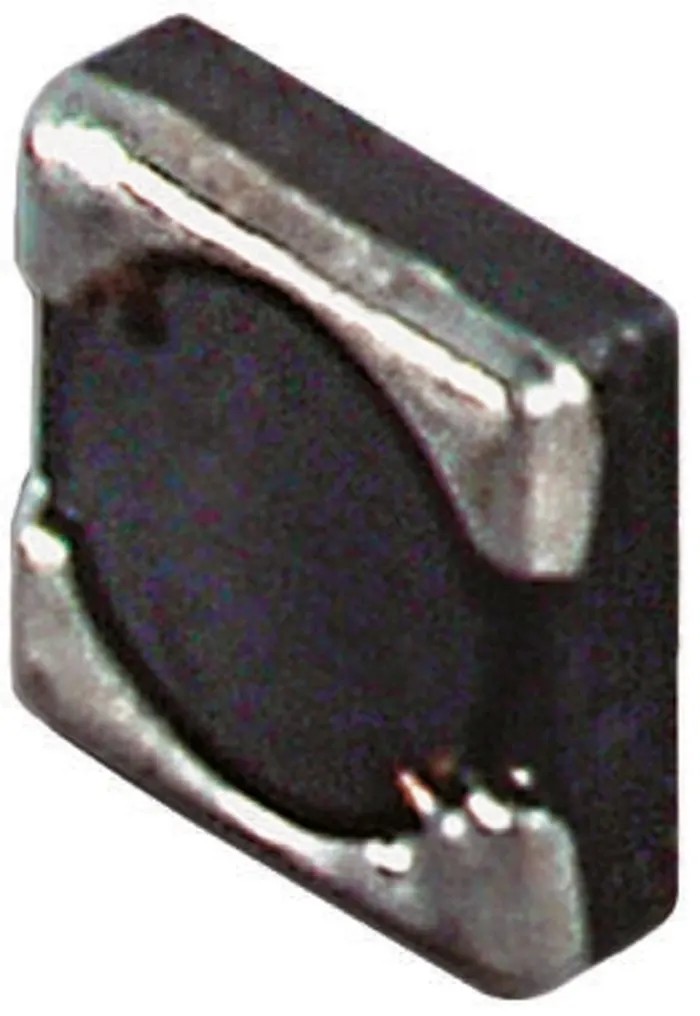

Wurth Elektronik Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±30% 880 mA 4818 Tape & Reel 744042220
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 1.8mm |
| Length | 4.8mm |
| Depth | 4.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Package/Case | 4818 |
| Maximum DC Current | 880mA |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Wirewound |
| REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3 | 2013, RoHS |
Key Features
- Extremely flat 4.8mm square design with magnetic shielding for low leakage field.
- Constructed with a ferrite core for high performance and reliability.
- Operates reliably between -40°C and 125°C temperature range.
- Maximum DC resistance of 300 mΩ ensures efficient current flow.
- Packaged in tape and reel format for convenient automated assembly.
- Maximum self-resonant frequency of 26 MHz suitable for high frequency applications.
- Complies with REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3:2013, and RoHS standards.
Product Description
Wurth Elektronik 744042220 is a wirewound surface mount inductor featuring a ferrite core with 22 μH inductance and ±30% tolerance designed for high current applications up to 880 mA dc. This component measures 4.8 mm in length and depth with a 1.8 mm height, fitting within a 4818 package case, enabling compact PCB layouts.
Its magnetically shielded construction reduces magnetic interference, making it ideal for portable power devices such as PDAs, digital cameras, PCMCIA cards, and embedded PC modules. The inductor supports operating temperatures from -40 to 125°C, ensuring durability in harsh environments.
This component offers a maximum DC resistance value of 300 mΩ, contributing to energy-efficient performance. Its maximum self-resonant frequency of 26 MHz suits applications requiring stable inductive characteristics at high frequencies.
The Wurth Elektronik WE-TPC series represents a family of flat power inductors engineered for superior performance and ease of use in automated manufacturing, supplied in tape and reel packaging.
Extremely flat 4.8mm square magnetically shielded wirewound choke. Wirewound construction with ferrite core for high current capability. Automotive standard compliance is not present, but conforms to key international electronic component standards.
Surface mount termination style optimized for PCB surface mounting. Compact size aids in miniaturized electronic designs. Useful in power management circuits, DC/DC converters, telemetric and mobile data gathering devices.
These inductors excel in industrial electronics, consumer electronics, telecommunications, and embedded system applications. Their reliable performance and compliance with environmental standards provide confidence for design integration.
Explore the Wurth Elektronik range of electronic components on EnvMart for reliable wirewound inductors and more, optimized for diverse industrial and commercial uses.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22 μH with a tolerance of ±30%.
The maximum DC current rating for this unit is 880 mA.
It operates reliably between -40°C and 125°C.
The maximum DC resistance is 300 mΩ, which ensures efficient current flow.
This inductor measures 4.8 mm in length and depth, and 1.8 mm in height.
It is constructed with a ferrite core, which contributes to its performance and reliability.
The maximum self-resonant frequency is 26 MHz, suitable for high frequency applications.
It is packaged in tape and reel format for convenient automated assembly.
This unit features a surface mount termination style optimized for PCB surface mounting.
It complies with REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3:2013, and RoHS standards.
This inductor is suitable for applications in power management circuits, DC/DC converters, and mobile data gathering devices.
It belongs to the WE-TPC series of flat power inductors designed for high performance.
