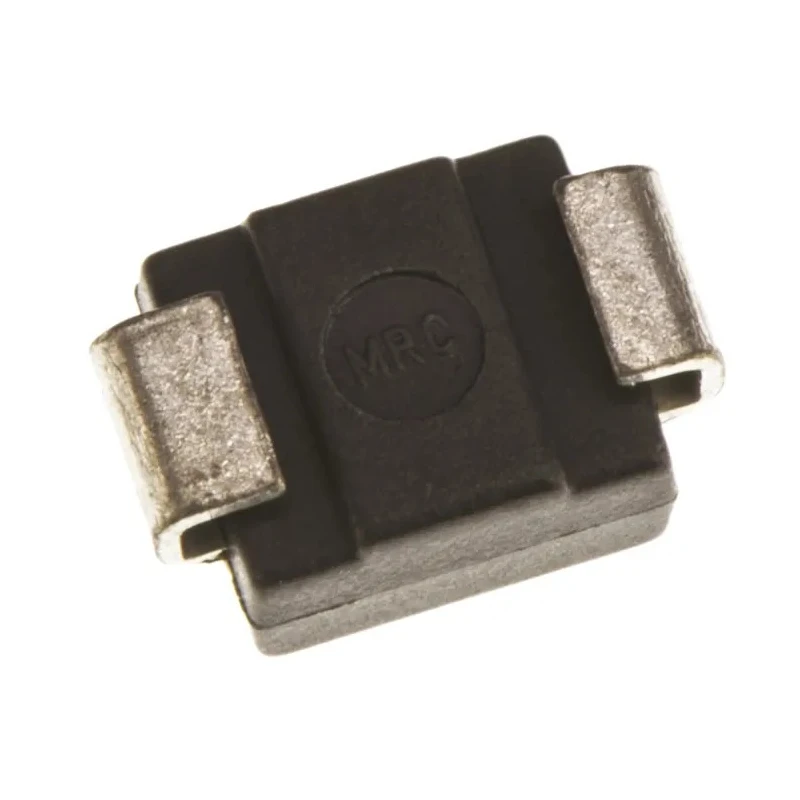

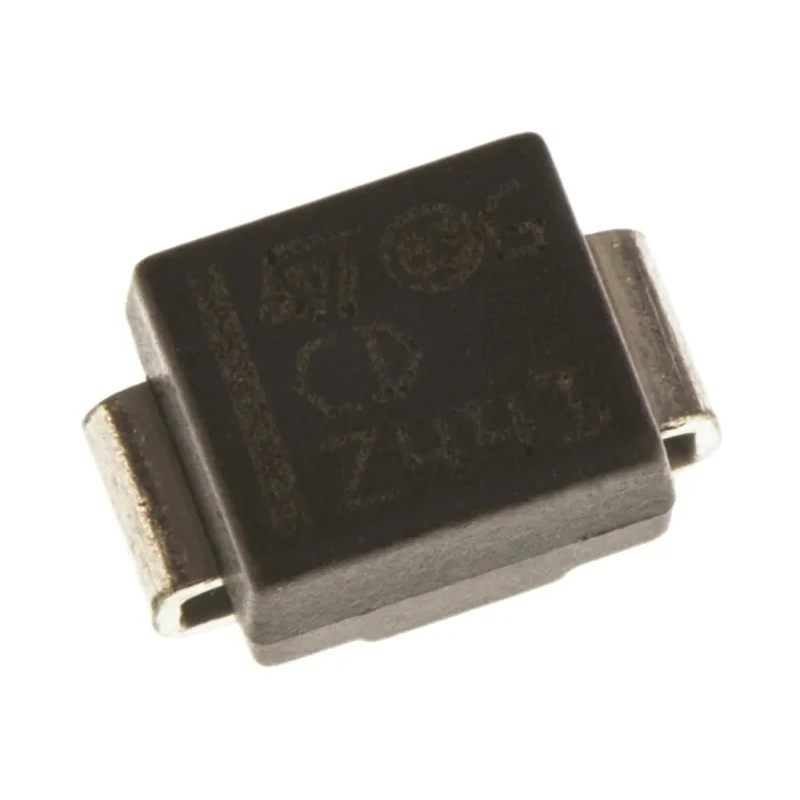

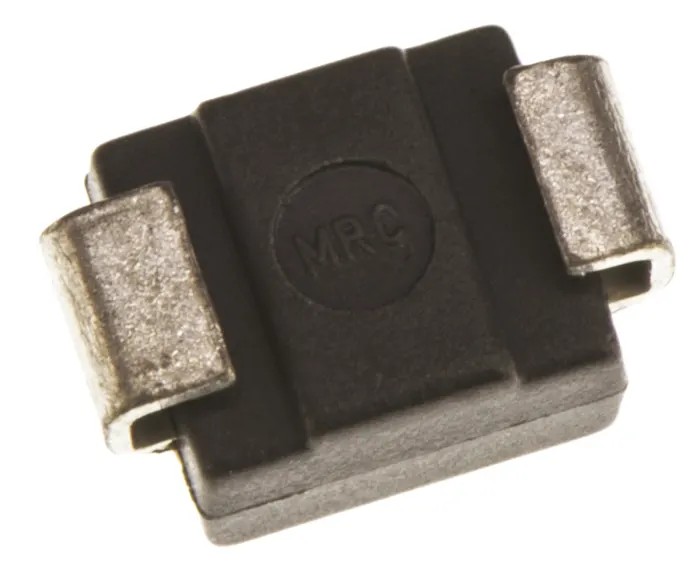

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W Peak Pulse Power Surface Mount DO-214 Package SMLVT3V3
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SMLVT3V3 |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.3V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 4.1V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 200A |
| Maximum Reverse Leakage Current | 200μA |
Key Features
- Designed for high-speed protection of sensitive electronic circuits.
- Single-element, uni-directional diode configuration ensures effective clamping.
- Peak pulse power of 600 W (10/1000μs) withstands transient surges.
- Maximum reverse stand-off voltage is 3.3 V with clamping voltage of 10.3 V.
- Wide operating temperature range from -65°C to 175°C.
- Compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height.
- Low leakage current of 200 μA ensures minimal power loss during normal operation.
- Test current rating of 1 mA and maximum peak pulse current of 200 A.
Product Description
STMicroelectronics SMLVT3V3 1-Element Uni-Directional TVS Diode delivers robust transient voltage protection with a peak pulse power dissipation of 600 W in a compact DO-214 package suitable for surface mount PCB assembly. This diode is designed to safeguard sensitive electronics from voltage spikes, offering a reliable uni-directional configuration optimized for fast response times and efficient clamping.
The diode features a maximum reverse stand-off voltage of 3.3 V and clamps voltage to 10.3 V during transient events, making it ideal for protecting circuits against surges and electrostatic discharge. With a test current of 1 mA and a maximum peak pulse current rating of 200 A, the device ensures dependable performance under demanding operating conditions.
Operating temperatures range from -65°C up to 175°C, accommodating harsh industrial and automotive environments. Its low maximum reverse leakage current of 200 μA reduces power dissipation during normal operation. Dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height provide a compact form factor suitable for space-constrained designs.
Single-element uni-directional diode configuration for efficient transient suppression. High peak pulse power rating of 600 W protects against high-energy voltage spikes. Surface mount DO-214 package enables automated assembly and reliable mounting.
Wide operating temperature ensures functionality in industrial and automotive settings. Low reverse leakage current reduces power loss. Compact size fits diverse circuit layouts. Fast response time protects sensitive semiconductor components.
Widely used in power supplies, telecommunications, and electronic equipment. Industrial and laboratory transient voltage protection applications. Package does not include automotive standard certification.
This STMicroelectronics TVS diode is a critical component in electronic circuit protection against transient surges, helping maintain device integrity and reduce downtime in manufacturing and field deployment. Its rugged construction and electrical specifications support reliable performance in a variety of power and electronic control systems.
Explore more semiconductor products and TVS Diode solutions in EnvMart's comprehensive catalog to ensure optimal device safety and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power rating of this model is 600 W, which is specified for a 10/1000μs pulse duration.
The maximum reverse stand-off voltage for the SMLVT3V3 is 3.3 V.
This unit has dimensions of 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The clamping voltage of the SMLVT3V3 during transient events is 10.3 V.
The operating temperature range for this model is from -65°C to 175°C.
The maximum peak pulse current rating for the SMLVT3V3 is 200 A.
The test current rating for this model is 1 mA.
This model features a single element configuration per chip.
The SMLVT3V3 uses a uni-directional diode configuration for effective clamping.
The maximum reverse leakage current for this diode is 200 μA.
This model comes in a surface mount DO-214 package type, suitable for automated assembly.
This diode is suitable for protecting sensitive electronic circuits in power supplies, telecommunications, and industrial equipment from voltage spikes.
