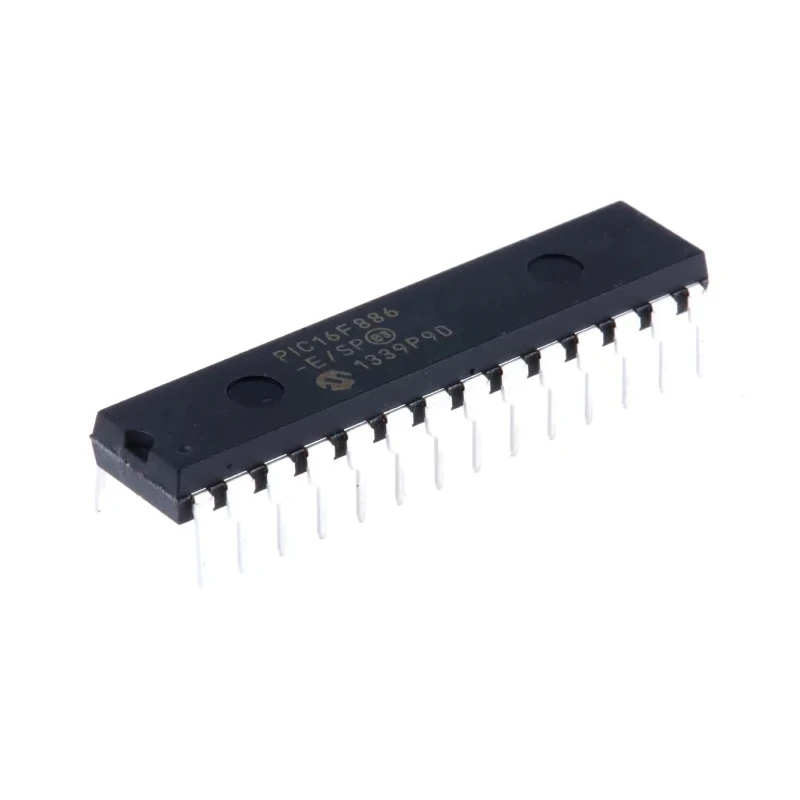

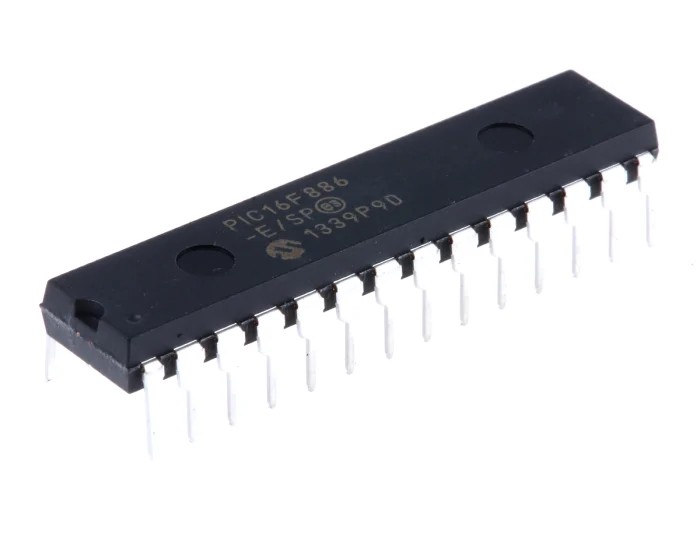

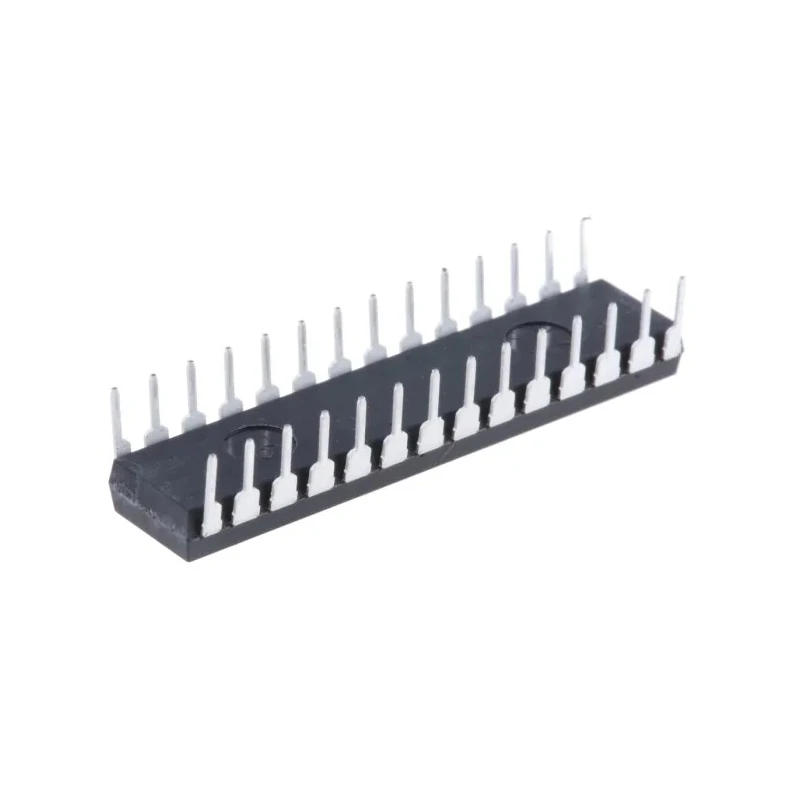

Microchip 8-Bit PIC16F Microcontroller, 20 MHz, 256B FLASH, 28-Pin SPDIP PIC16F886-E/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC16F886-E/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 125°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 368bit |
| Interface Type | EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum clock frequency of 20 MHz for efficient processing.
- Contains 256 bytes of FLASH program memory for application storage.
- Integrated 368 bits of RAM for data handling.
- Offers 22 programmable input/output pins for versatile interfacing.
- Built-in 10-bit ADC with 11 channels for precise analog to digital conversion.
- Supports EUSART interface for serial communication.
- Designed with RISC architecture and features 35 instructions and an 8-level hardware stack.
- Includes 3 timers and 2 analog comparators to support a variety of timing and comparison tasks.
Product Description
Microchip PIC16F886-E/SP is an 8-bit PIC16F microcontroller designed for embedded applications requiring efficient processing with a maximum CPU speed of 20 MHz. Featuring a 28-pin SPDIP package, it offers 256 bytes of Flash program memory and 368 bits of RAM. This device uses Microchip's RISC architecture with 35 instructions and an 8-level hardware stack to deliver up to 5 MIPS performance.
The microcontroller includes 22 programmable I/O pins, 11 channels of 10-bit ADCs, and is equipped with numerous peripherals such as 3 timers, two analog comparators, and enhanced serial communication via the EUSART interface. It supports in-circuit serial programming (ICSP) and debugging (ICD) to facilitate flexible development and testing.
The device operates over a wide voltage range between 2 V and 5.5 V with power dissipation up to 1 W, suitable for various industrial, automotive, and commercial embedded systems. Its operating temperature range from -40°C to 125°C and automotive-grade AEC-Q101 qualification make it robust for demanding environments.
Additional features include power-on reset, brown-out reset, watchdog timer, oscillator startup timer, and selectable internal oscillator frequencies from 8 MHz down to 31 kHz tailored for low power consumption. The microcontroller is RoHS compliant, ensuring eco-friendly component selection for system designers.
With its versatile peripherals, compact package, and reliable performance, the PIC16F886-E/SP microcontroller is suitable for a wide variety of embedded applications including automotive electronics, industrial control systems, consumer electronics, and communication devices.
Operates at 20 MHz maximum clock frequency. 256 bytes Flash program memory with FLASH program memory type. 22 programmable I/O pins and 11-channel 10-bit ADCs. 3 timers, 2 analog comparators, and EUSART interface communication.
Wide operating voltage range from 2 V to 5.5 V with 1 W max power dissipation. Explore the Microchip Microcontroller range at EnvMart for advanced embedded system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, allowing for efficient processing capabilities.
It features 256 bytes of FLASH program memory for application storage.
The operating temperature range is from -40°C to 125°C, making it suitable for demanding environments.
This model provides 22 programmable input/output pins for versatile interfacing.
It includes a built-in 10-bit ADC with 11 channels for precise analog to digital conversion.
The maximum power dissipation for the PIC16F886-E/SP is 1 W.
It supports the EUSART interface for enhanced serial communication capabilities.
This microcontroller comes in a 28-pin SPDIP package type.
This model has 368 bits of RAM for data handling.
The PIC16F886-E/SP is qualified to the automotive standard AEC-Q101.
The minimum supply voltage is 2 V, and the maximum supply voltage is 5.5 V.
It utilizes a RISC architecture, featuring 35 instructions and an 8-level hardware stack.
