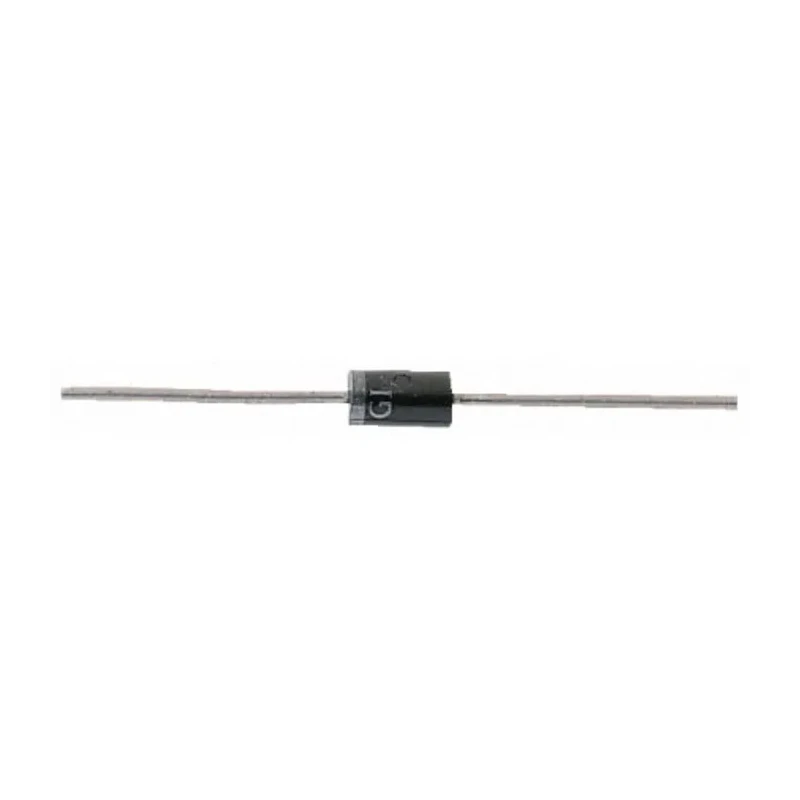

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W 2-Pin DO-15 BZW06-33B
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | BZW06-33B |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | BZW06 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 69.7V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 37.1V |
| Maximum Reverse Stand-off Voltage Vwm | 33.3V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 57A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features a bi-directional configuration ensuring versatile transient voltage suppression.
- It has a minimum breakdown voltage of 37.1 V and a maximum reverse stand-off voltage of 33.3 V.
- The peak pulse current rating is 57 A with a clamping voltage of 69.7 V for effective transient surge handling.
- Designed for through-hole mounting with 2 pins in a DO-15 package for easy PCB integration.
- Operational temperature ranges from -65°C up to 175°C for reliable performance in extreme environments.
- The device supports a test current of 1 mA to validate electrical characteristics.
- Compact dimensions of 6.75 mm length and 3.53 mm diameter facilitate space-saving designs.
- Maximum reverse leakage current is a low 1 μA to minimize undesired power loss.
Product Description
STMicroelectronics BZW06-33B is a single-element, bi-directional TVS diode designed for transient voltage suppression with a peak pulse power dissipation of 600 W. Packaged in a DO-15 through-hole type with two pins, it provides robust protection for sensitive electronic components against voltage spikes and electrostatic discharges.
The diode exhibits a minimum breakdown voltage of 37.1 V, ensuring reliable operation while clamping transient surges at 69.7 V. It supports a maximum reverse stand-off voltage of 33.3 V and a peak pulse current of 57 A, making it suitable for industrial, consumer electronics, and automotive applications that require durable voltage surge protection.
This component operates efficiently from -65°C to 175°C, enabling use in harsh environments. The device's small form factor (6.75 mm length, 3.53 mm diameter) and through-hole mount facilitate straightforward PCB integration with minimal footprint impact.
Notable features include a low maximum reverse leakage current of 1 μA and a test current rating of 1 mA to ensure precise performance. The STMicroelectronics BZW06 series offers high surge immunity and is widely used in circuits requiring fast and reliable voltage clamping.
This TVS Diode shields electronic circuits against transient voltage spikes. Bi-directional diode configuration enables protection on AC or DC lines. High peak pulse power dissipation of 600 W ensures robustness. Compact DO-15 through-hole package simplifies PCB assembly.
Wide operating temperature range for versatile applications. Low leakage current contributes to energy efficiency. Industry standard dimensions and electrical parameters. Suitable for industrial, automotive, telecommunications, and consumer electronics protection.
Discover a full range of semiconductor components for your industrial and electronics design needs at EnvMart. Explore STMicroelectronics and other leading brands for reliable circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BZW06-33B diode has a peak pulse power dissipation of 600 W, providing robust protection against voltage spikes.
This model has a length of 6.75 mm and a diameter of 3.53 mm, making it compact for PCB integration.
The minimum breakdown voltage for this diode is 37.1 V, ensuring reliable operation under transient conditions.
The maximum reverse stand-off voltage for the BZW06-33B is 33.3 V, which helps protect sensitive components.
The clamping voltage for this diode is 69.7 V, allowing it to effectively manage transient surges.
The maximum peak pulse current rating for the BZW06-33B is 57 A, which supports its transient voltage suppression capabilities.
This diode operates efficiently within a temperature range of -65°C to 175°C, suitable for harsh environments.
The BZW06-33B is designed for through-hole mounting with 2 pins, facilitating easy integration onto PCBs.
The maximum reverse leakage current of the BZW06-33B is 1 μA, which minimizes undesired power loss.
A test current of 1 mA is used to validate the electrical characteristics of the BZW06-33B.
This model features a bi-directional configuration, allowing it to protect against voltage spikes in both AC and DC lines.
The BZW06-33B is suitable for industrial, consumer electronics, and automotive applications requiring transient voltage protection.
