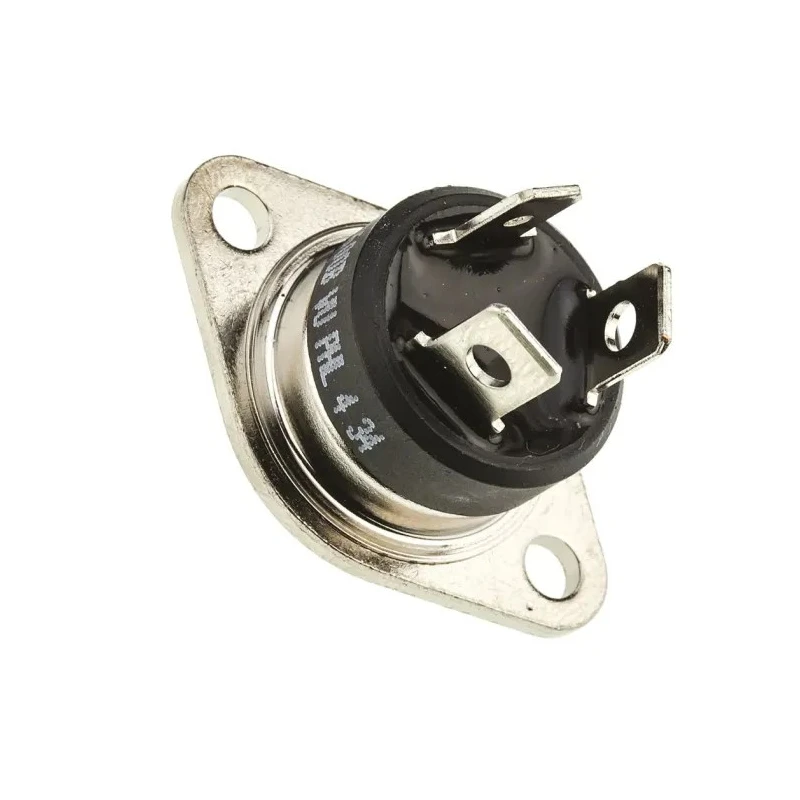

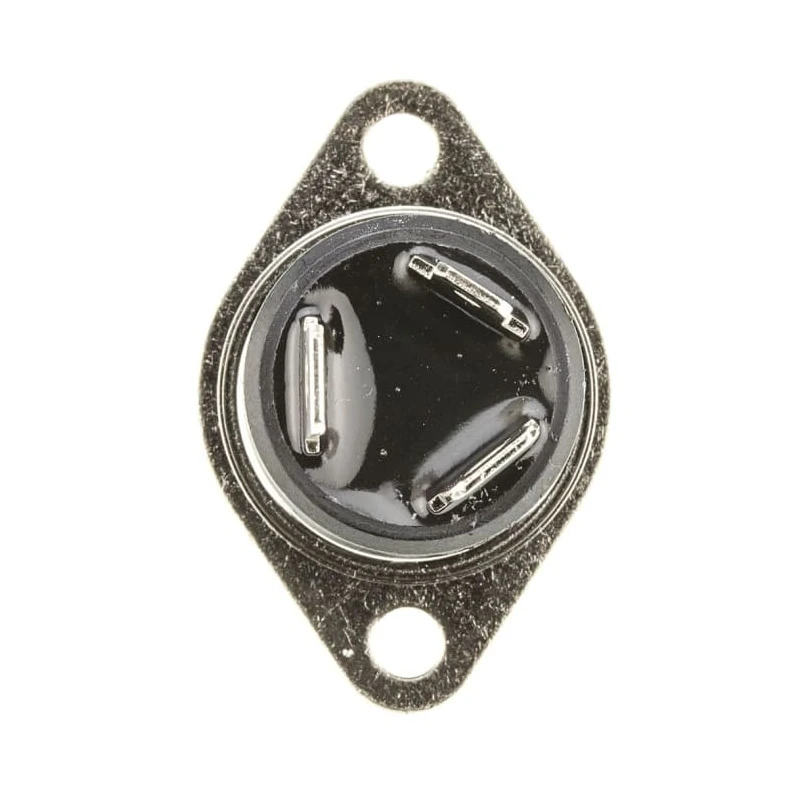

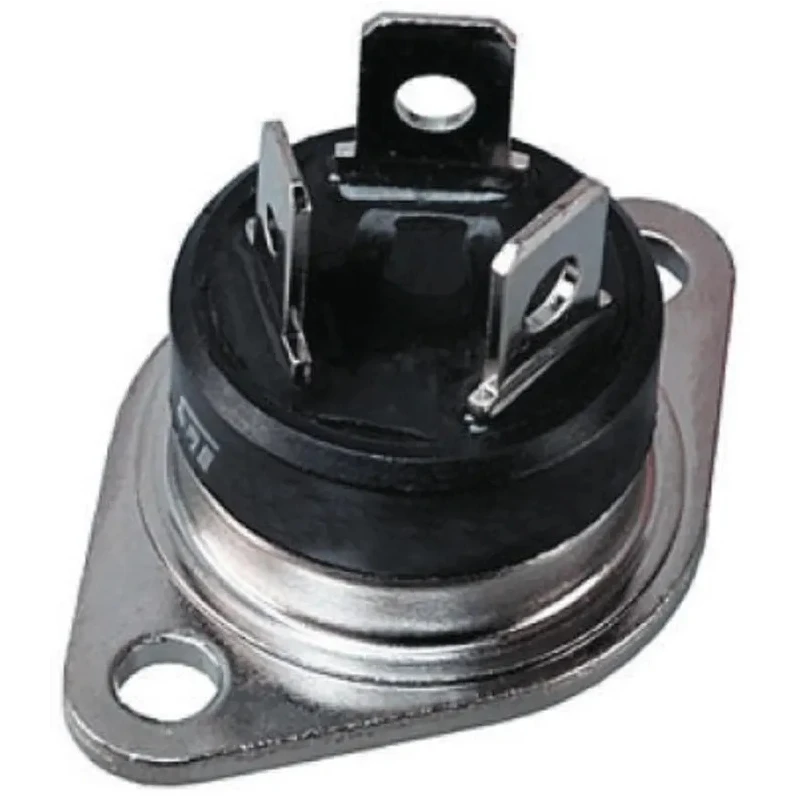

STMicroelectronics Panel Mount 3-Pin TRIAC 600 V, Gate Trigger 1.3 V BTA40-600B
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 14mm |
| Length | 40mm |
| Model | BTA40-600B |
| Mount Type | Panel |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | RD-91 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 40A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 420A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 80mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated for an average on-state current of 40A suitable for heavy-duty applications.
- Operates with a maximum repetitive peak reverse voltage of 600 V.
- Features a gate trigger voltage of 1.3 V and max gate trigger current of 100 mA for reliable switching.
- Designed with a panel mount type and RD-91 package for easy integration.
- Supports operating temperatures from -40°C up to 125°C for wide environmental tolerance.
- Maximum surge current rating of 420 A ensures durability in transient conditions.
- Compact dimensions with a length of 40 mm and height of 14 mm.
- Low holding current of 80 mA and repetitive peak off-state current of 5 μA optimize power efficiency.
Product Description
STMicroelectronics BTA40-600B is a panel mount TRIAC with 3 pins, specifically engineered for controlling AC power in industrial and commercial applications. Rated at 40A average on-state current and capable of handling a repetitive peak reverse voltage of 600 V, it ensures robust and reliable switching performance.
Its gate trigger voltage of 1.3 V and maximum gate trigger current of 100 mA allow precise activation with minimal power input. The device comes in an RD-91 package, facilitating secure panel mounting in electrical assemblies.
Designed to withstand harsh environments, the TRIAC operates efficiently across a wide temperature range from -40°C to 125°C. It also supports a surge current rating of 420 A to handle transient overloads without degradation.
With compact dimensions (40 mm length and 14 mm height), it is suitable for integration into various electronic and electrical control systems. Its low holding current of 80 mA and minimal repetitive peak off-state current of 5 μA contribute to reduced power loss and enhanced operational efficiency.
Rated for 40A average on-state current for demanding power control. Supports up to 600 V repetitive peak reverse voltage. Low gate trigger requirements enable efficient switching. Robust RD-91 panel mount package ensures ease of installation.
Wide operating temperature range from -40°C to 125°C. High surge current rating of 420 A for transient conditions. Compact size fits various industrial panel setups. Energy-efficient low holding current and leakage.
This TRIAC is ideal for industrial motor controls, HVAC systems, lighting controls, and other power switching uses requiring reliable and durable semiconductor components. STMicroelectronics' BTA40-600B is designed to meet the rigorous demands of professional electronic equipment manufacturers.
Explore more semiconductor and discrete electronic components at EnvMart to find the perfect fit for your industrial and commercial electronic assembly needs.
Explore more products in our Discrete Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTA40-600B is rated for an average on-state current of 40A, making it suitable for heavy-duty applications.
This TRIAC can handle a maximum repetitive peak reverse voltage of 600V.
The maximum gate trigger voltage is 1.3V, and the maximum gate trigger current is 100mA.
It has a surge current rating of 420A, allowing it to handle transient overloads effectively.
The dimensions of this TRIAC are 40mm in length and 14mm in height.
It operates efficiently in a temperature range from -40°C to 125°C.
The BTA40-600B is designed for panel mount installation, featuring an RD-91 package for easy integration.
The maximum holding current is 80mA, which helps optimize power efficiency.
The repetitive peak off-state current is specified at 5μA, contributing to reduced power loss.
The peak on-state voltage is 1.55V.
This TRIAC is ideal for industrial motor controls, HVAC systems, and lighting controls that require reliable power switching.
The BTA40-600B is manufactured in India.
