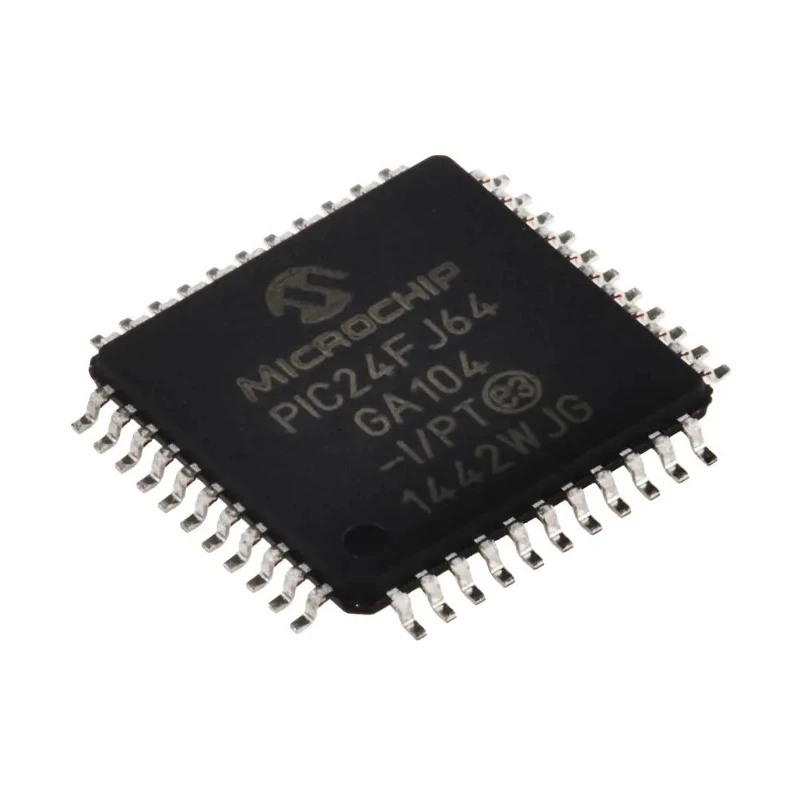

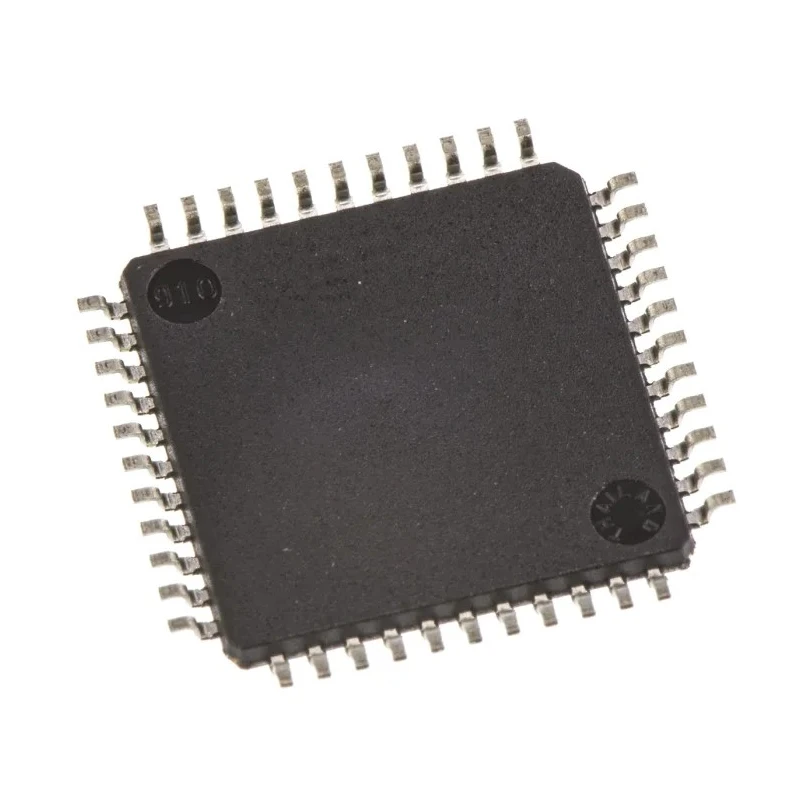

Microchip 16-bit PIC24FJ Microcontroller, 32 MHz, 64kB FLASH, 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24FJ |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 44 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates on a 2V to 3.6V supply voltage range.
- Features 8kB RAM and 13 ADC channels with 10-bit resolution.
- Equipped with 5 timers and 3 analogue comparators for versatile control applications.
- Compact 10mm x 10mm x 1.05mm surface-mount TQFP package.
- Designed using RISC instruction set architecture for efficient processing.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Flash program memory ensures reliable and flexible firmware storage.
Product Description
Microchip PIC24FJ64GA104-I/PT is a 16-bit PIC microcontroller designed for embedded applications demanding efficient processing and reliable performance. Featuring a maximum clock frequency of 32 MHz, this microcontroller utilizes a PIC device core combined with a RISC instruction set architecture to deliver streamlined and effective code execution.
The device is housed in a 44-pin Thin Quad Flat Package (TQFP) ideal for surface mounting on PCBs, with compact dimensions of 10mm length and width and a height of 1.05mm, making it suitable for space-constrained industrial and commercial electronic assemblies.
It boasts 64kB of FLASH program memory and 8kB of RAM, providing ample space for program code and data storage. The integrated peripherals include 13 ADC channels each with 10-bit resolution, 5 timers for versatile timing operations, and 3 analogue comparators, supporting extensive analog and timing capabilities for complex control systems.
The microcontroller operates over a supply voltage range of 2V to 3.6V, allowing compatibility with a variety of power sources. Its operating temperature range of -40°C to 85°C ensures suitability across harsh industrial, automotive, and environmental conditions.
This microcontroller does not have specific certifications but is designed per industrial standards and best practices for embedded control systems. It is an ideal choice for applications in industrial automation, instrumentation, communication devices, and consumer electronics where reliable 16-bit processing is required.
Operates on a 2V to 3.6V supply voltage range. Features 8kB RAM and 13 ADC channels with 10-bit resolution. Equipped with 5 timers and 3 analogue comparators for versatile control applications. Compact 10mm x 10mm x 1.05mm surface-mount TQFP package.
Designed using RISC instruction set architecture for efficient processing. Operating temperature range from -40°C to 85°C suitable for various environments. Flash program memory ensures reliable and flexible firmware storage.
Explore our range of Microcontrollers at EnvMart for advanced electronic component solutions tailored to industrial, laboratory, and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates on a supply voltage range of 2V to 3.6V.
This model features 64kB of FLASH program memory.
The dimensions of the TQFP package are 10mm x 10mm x 1.05mm.
It includes 13 ADC channels, each with 10-bit resolution.
The RAM size of this microcontroller is 8kB.
The operating temperature range is from -40°C to 85°C.
This microcontroller is equipped with 5 timers.
It is designed using a RISC instruction set architecture.
There are 3 analogue comparators integrated into this model.
The pin count of the PIC24FJ is 44 pins.
This model is suitable for surface mounting.
