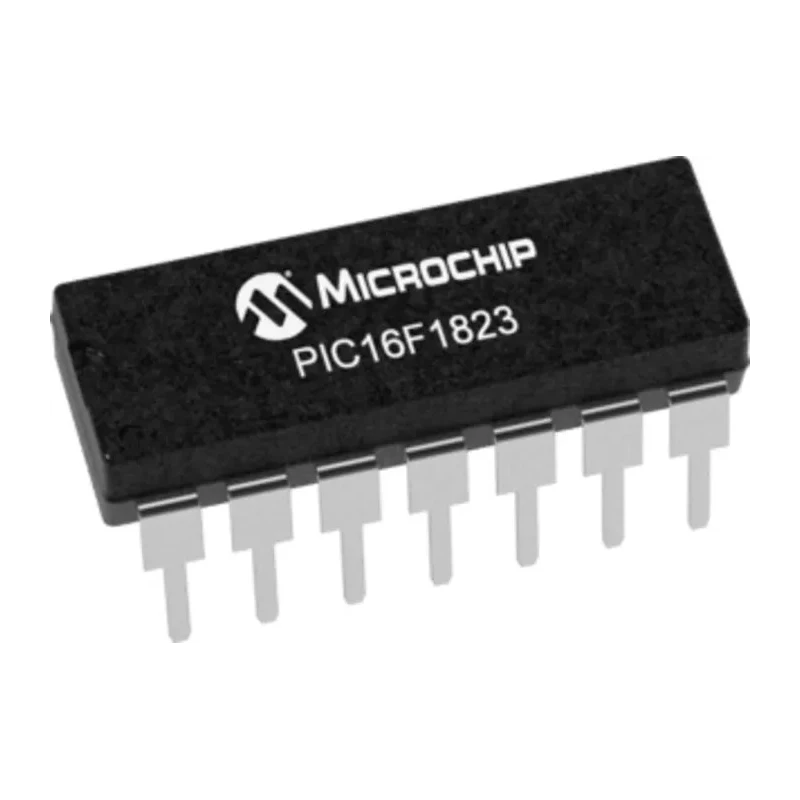

Microchip 8 bit PIC Microcontroller PIC16F1823-E/P, 32 MHz, 3.5kB FLASH, 14-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 19.69mm |
| Model | PIC16F1823-E/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Built on Enhanced Mid-Range PIC16F architecture for versatile embedded applications.
- Features 128 bytes RAM and 256 bytes EEPROM for data storage.
- Integrated 8-channel 10-bit ADC and 5-bit DAC for analog interfacing.
- Includes multiple timers and peripherals such as ECCP and comparators.
- Operates from 1.8V to 5.5V with wide temperature range from -40°C to 125°C.
- Supports on-chip oscillator factory calibrated to ±1% accuracy at 32 MHz.
- Designed for robust embedded control in industrial, automotive, and consumer electronics.
Product Description
Microchip PIC16F1823-E/P is an 8-bit microcontroller featuring the Enhanced Mid-Range PIC16F core delivering up to 32 MHz clock frequency and 49 instruction set for efficient processing.
This 14-pin PDIP packaged device offers 3.5kB Flash program memory, 128 bytes RAM, and 256 bytes EEPROM for flexible code and data storage needs.
Designed for embedded systems, the microcontroller provides a rich peripheral set including 12 programmable I/O pins, an 8-channel 10-bit ADC, 5-bit DAC, two analog comparators, three timers, and an Enhanced Capture/Compare/PWM (ECCP) module.
The device operates across a wide voltage range from 1.8V up to 5.5V and supports extended temperature operation from -40°C to 125°C, ensuring stable performance in harsh environments.
With built-in power management features such as Power-On Reset (POR), Brown-Out Reset (BOR), and Watchdog Timer (WDT), this MCU is suitable for demanding industrial, automotive, consumer, and communications applications requiring reliable and low-power embedded controls.
The integrated internal oscillator offers selectable frequencies from 31 kHz to 32 MHz with factory calibration accurate to ±1%, eliminating the need for external crystals in many applications.
Built on Enhanced Mid-Range PIC16F architecture providing 8 MIPS throughput and 49 instructions. 3.5kB Flash memory with 128 bytes RAM and 256 bytes EEPROM for code and data storage. 12 I/O pins for versatile interface options supporting digital and analog functions.
Advanced peripherals include 8-channel 10-bit ADC, 5-bit DAC, two analog comparators, ECCP, and multiple timers. Wide operating voltage range of 1.8V to 5.5V and extended temperature range from -40°C to 125°C. Robust power management features: POR, BOR, PWRT, WDT, and oscillator start-up timers.
This Microchip PIC16F1823-E/P microcontroller is ideal for embedded development in home automation, industrial control, automotive electronics, and consumer devices. Explore the Microcontroller category to discover advanced processing modules suited for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a voltage range of 1.8V to 5.5V.
This microcontroller features 3.5kB of Flash program memory.
The device can operate in a temperature range from -40°C to 125°C.
It provides 12 programmable I/O pins for versatile interfacing options.
It includes an 8-channel 10-bit ADC and a 5-bit DAC for analog interfacing.
This model comes in a 14-pin PDIP package type.
It includes Power-On Reset (POR), Brown-Out Reset (BOR), and a Watchdog Timer (WDT).
The height of this microcontroller is 4.95 mm.
There are three timers integrated into this microcontroller.
It is built on the Enhanced Mid-Range PIC16F architecture, which provides 8 MIPS throughput.
Yes, this microcontroller is RoHS compliant.
