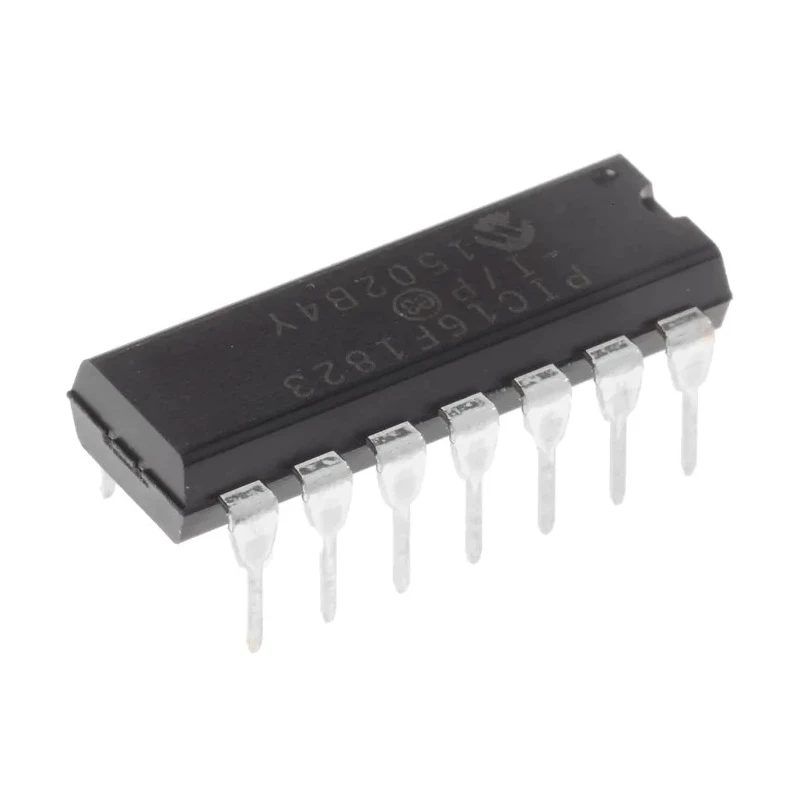

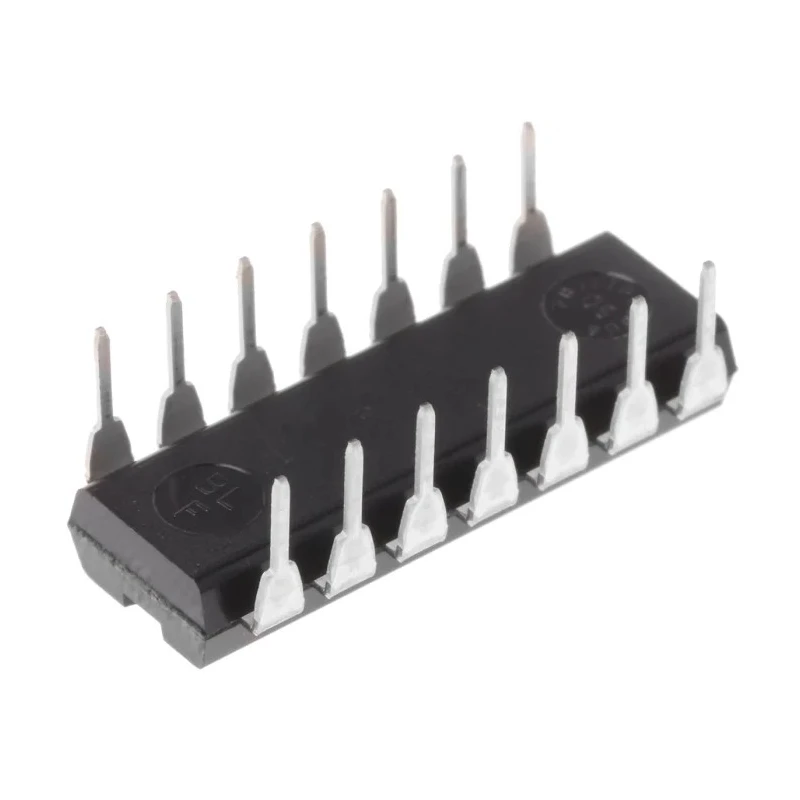

Microchip 8-bit PIC Microcontroller PIC16F1823-I/P, 32 MHz, 3.5kB FLASH, 14-Pin PDIP

Microchip PIC16F1823-I/P is an 8-bit microcontroller that combines the PIC architecture's enhanced mid-range core delivering up to 8 MIPS performance. Operating at a maximum clock frequency of 32 MHz and housing 3.5 Kbytes of program memory with FLASH technology, it supports sophisticated control applications.

This microcontroller features a 14-pin PDIP package designed for through-hole mounting to ease prototyping and production. Operating over a wide supply voltage range of 1.8 V to 5.5 V, it fits various power environments.

With 12 programmable input/output pins, 128 bytes of RAM, and a suite of peripherals including SPI, I2C, and EUSART interfaces, this MCU allows flexible communication with external devices. The device incorporates 8-channel 10-bit ADC and 2 analog comparators for accurate signal acquisition.

The PIC16F1823-I/P also contains multiple timers, voltage reference modules, and a data signal modulator, providing comprehensive timing and measurement capabilities. Its onboard oscillator is factory calibrated to ±1% frequency, ensuring precise timing without external components.

Supporting in-circuit programming and debugging, the device facilitates firmware development and maintenance. Additional features like capacitive sensing, watchdog timer, power-on reset, brown-out reset, and enhanced low-voltage programming further enhance system robustness.

Suitable for industrial, laboratory, and embedded systems, this microcontroller is ideal for compact, low-power applications requiring reliable performance under wide temperature ranges (-40°C to 85°C).

Built on Enhanced Mid-Range RISC architecture with 49 instructions for efficient performance. Operates at supply voltages from 1.8 V up to 5.5 V, ideal for various power conditions. Includes 12 programmable I/O pins and 128 bytes of RAM for versatile application needs.

Features multiple peripherals such as SPI, I2C, and EUSART interfaces for robust communication. Equipped with 8-channel 10-bit ADCs and 2 analog comparators for precise sensing capabilities. Integrated 3 timers (two 8-bit and one 16-bit) and voltage reference module enhance timing accuracy.

Supports in-circuit serial programming (ICSP) and debugging (ICD) with enhanced low-voltage programming. Offers capacitive sensing with the mTouch module and power-on reset features for reliable startup. Designed for operation from -40°C to 85°C, suitable for industrial and commercial environments.

Compact dimensions of 19.69 mm length, 7.11 mm width, and 4.95 mm height enable space-saving PCB designs.

Explore the Microchip Microcontroller range on EnvMart for solutions tailored to embedded system designs. Advanced features and reliable performance make the PIC16F1823-I/P an excellent choice for development and production.
