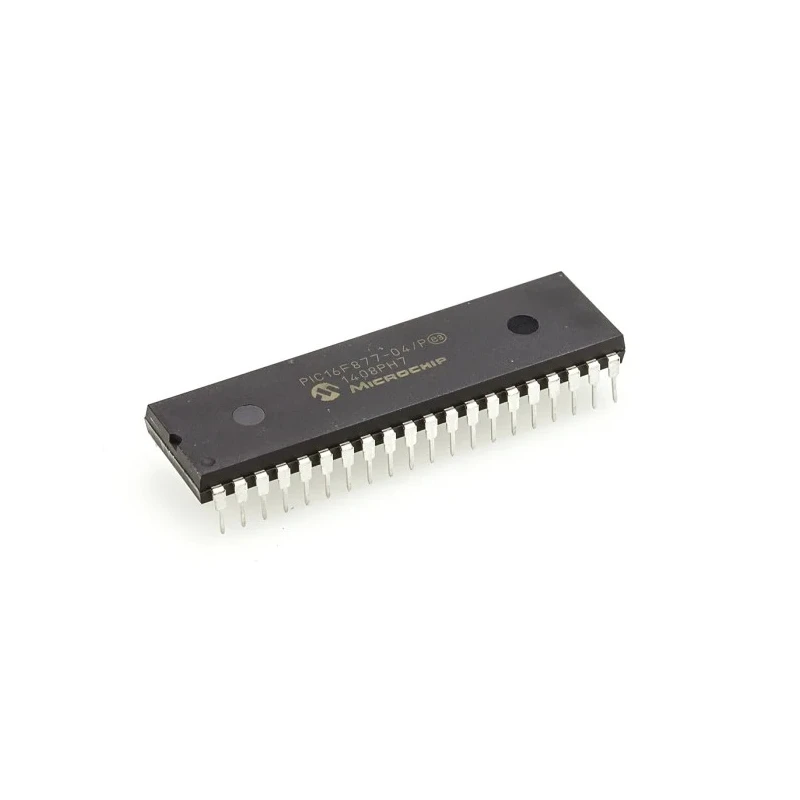

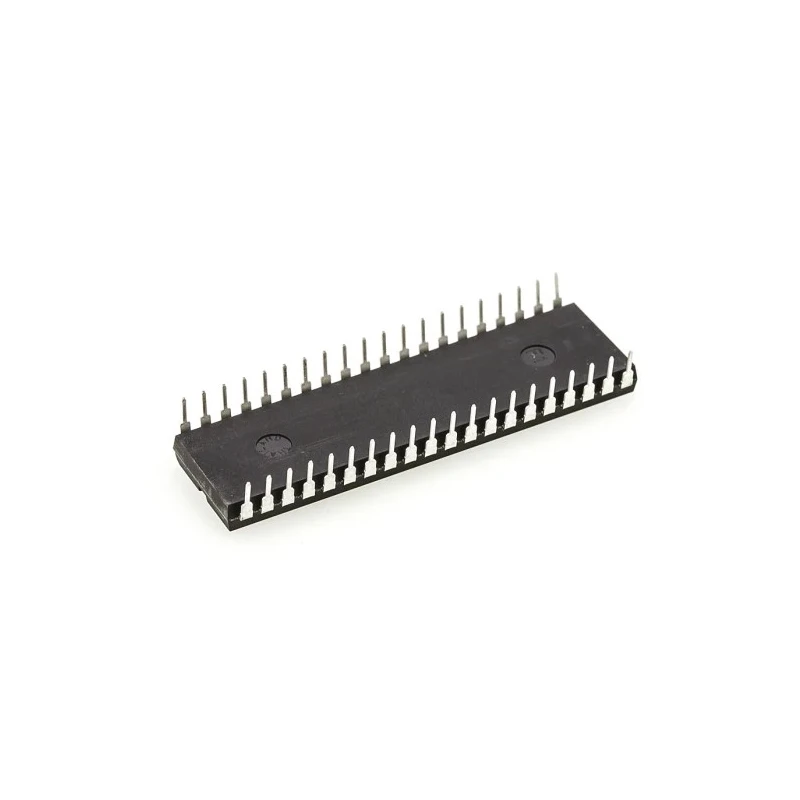

Microchip 8-bit PIC16F Microcontroller, 14kB FLASH, 4 MHz, 40-Pin PDIP PIC16F877-04/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 52.45mm |
| Model | PIC16F877-04/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 368bit |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Incorporates Microchip PIC architecture with 8-bit data bus width.
- Features 14kB FLASH program memory and 368-bit RAM.
- Operates at a maximum clock frequency of 4 MHz for efficient processing.
- Includes 33 programmable I/O pins and 8 channels 10-bit ADC for analog input.
- Supports through-hole mounting with PDIP package type and 40 pins.
- Operates between 0°C to 70°C temperature range suitable for industrial environments.
- Maximum power dissipation is 1 W and supply voltage range from 2V to 5.5V.
- Offers advanced peripherals including timers, CCP modules, USART, SPI, and I2C interfaces.
Product Description
Microchip PIC16F877-04/P is a high-performance 8-bit PIC microcontroller featuring 14kB of FLASH program memory and operating at a clock frequency of 4 MHz. This microcontroller is packaged in a 40-pin PDIP through-hole format, providing 33 programmable input/output pins suitable for varied embedded control applications.
Based on Microchip's PIC mid-range architecture with a 35-instruction set and an 8-level hardware stack, the PIC16F877-04/P delivers reliable processing with up to 5 MIPS performance. It includes 368 bits of RAM and robust memory options such as EEPROM for non-volatile storage.
This device supports multiple integrated peripherals including three timers (two 8-bit and one 16-bit), two Capture/Compare/PWM modules, and an 8-channel 10-bit ADC ideal for precise analog measurements. Communication interfaces include synchronous serial ports with SPI and I2C protocols, USART, and a Parallel Slave Port on selected models.
Designed to operate within a temperature range of 0°C to 70°C and supply voltages from 2V to 5.5V, the PIC16F877-04/P balances performance with robustness for industrial and commercial applications. Power consumption is optimized with a maximum dissipation of 1 W.
This microcontroller meets RoHS requirements, ensuring compliance with environmental regulations. It is a versatile choice for diverse electronic design projects in industrial, laboratory, and embedded system environments.
Incorporates Microchip PIC architecture with 8-bit data bus width. Features 14kB FLASH program memory and 368-bit RAM. Operates at a maximum clock frequency of 4 MHz for efficient processing. Includes 33 programmable I/O pins and 8 channels 10-bit ADC for analog input.
Supports through-hole mounting with PDIP package type and 40 pins. Operates between 0°C to 70°C temperature range suitable for industrial environments. Maximum power dissipation is 1 W and supply voltage range from 2V to 5.5V.
Offers advanced peripherals including timers, CCP modules, USART, SPI, and I2C interfaces. Complies with RoHS standards ensuring environmental safety. Explore EnvMart for more Microchip Microcontrollers and embedded solutions tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz, allowing for efficient processing capabilities.
This model features 14kB of FLASH program memory, suitable for various embedded applications.
It operates within a temperature range of 0°C to 70°C, making it suitable for industrial environments.
The PIC16F877-04/P includes 33 programmable I/O pins for versatile application use.
This microcontroller is packaged in a 40-pin PDIP format, supporting through-hole mounting.
The maximum power dissipation for this model is 1 W, ensuring efficient energy use during operation.
It operates with a supply voltage range from 2V to 5.5V, accommodating various power supply configurations.
This microcontroller supports 8 channels of 10-bit ADC for precise analog measurements.
It includes USART, SPI, and I2C interfaces, allowing for versatile communication options in embedded systems.
The microcontroller has a RAM size of 368 bits, providing sufficient memory for its operations.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
This model includes three timers, comprising two 8-bit timers and one 16-bit timer, for various timing applications.
