STMicroelectronics 1-Element Bi-Directional TVS Diode Surface Mount 600 W 2-Pin DO-214 SM6T15CA

STMicroelectronics SM6T15CA is a single-element, bi-directional transient voltage suppressor (TVS) diode designed for surface mount applications. With a peak pulse power dissipation rating of 600 W, it provides robust protection against voltage spikes and surges to sensitive electronic circuits, especially in industrial and consumer electronics.

This 2-pin DO-214 package component ensures efficient PCB layout compatibility and ease of installation. It operates reliably across a temperature range of -55°C to 150°C, making it suitable for demanding automotive and industrial environments.

The diode features a minimum breakdown voltage of 14.3 volts and a clamping voltage of 27.2 volts. Its maximum reverse stand-off voltage is 12.8 volts, providing a stable threshold for voltage suppression. The device can handle a maximum peak pulse current of 147 amperes during transient events, protecting downstream components from damage.

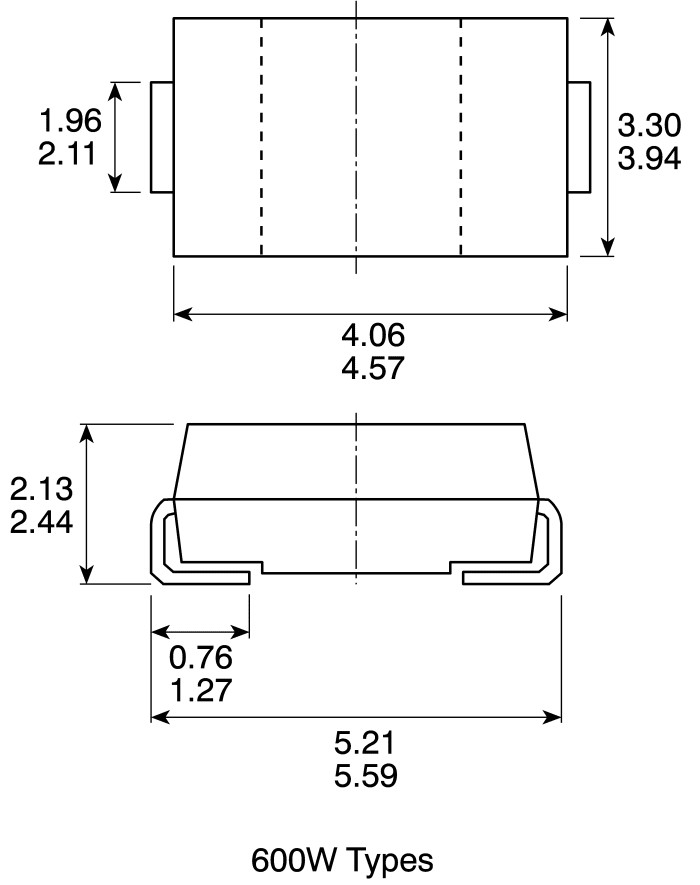

With dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height, the compact form factor facilitates integration into small electronic devices. The device’s low leakage current of 200 nA ensures minimal impact on circuit performance during normal operation.

This TVS Diode is part of the SM6T series by STMicroelectronics, known for quality and reliability in transient voltage protection. It is ideal for industrial electronics, telecommunications, automotive systems, power supplies, and other applications requiring transient voltage suppression.

Single diode configuration designed for bi-directional voltage suppression. Surface mount type enables efficient PCB integration. Offers peak pulse power dissipation of 600 watts to protect sensitive electronics. Operational temperature range from -55°C to 150°C supports demanding environments.

Compact dimensions with 4.6 mm length, 3.95 mm width, and 2.45 mm height. Clamping voltage rating of 27.2 volts ensures transient voltage suppression. Minimum breakdown voltage is 14.3 volts with a maximum reverse stand-off voltage of 12.8 volts.

Maximum peak pulse current capability of 147 amperes prevents circuit damage. Low maximum reverse leakage current of 200 nA preserves circuit integrity. 1 element per chip in the SM6T series designed for transient voltage suppression.

This product is suitable for a wide range of applications across industrial, telecommunications, automotive, and power electronics domains. Its reliable transient voltage suppression helps protect critical circuits against voltage transients, improving product durability and safety.
