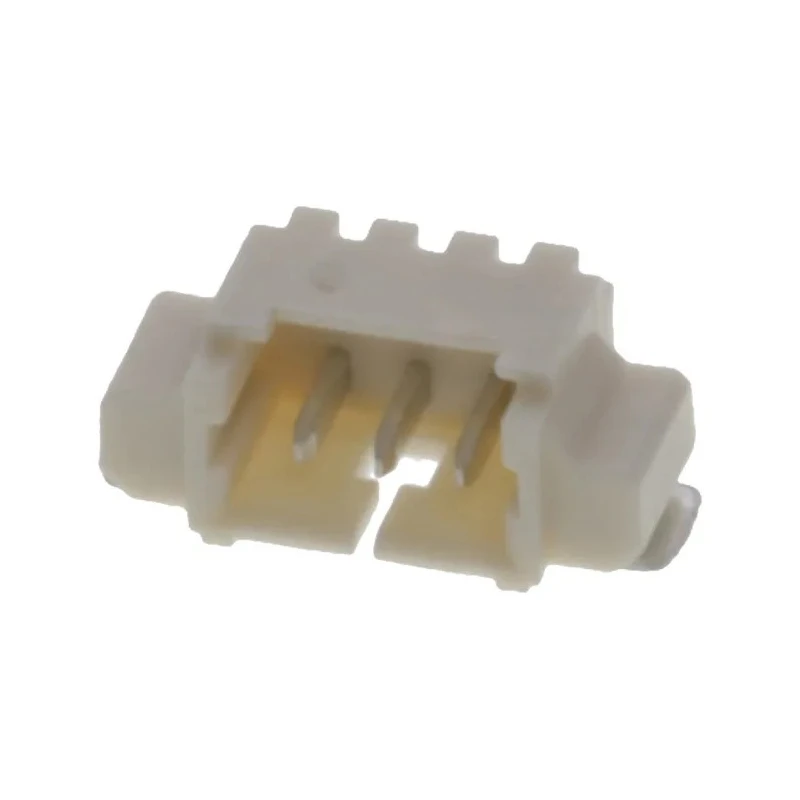

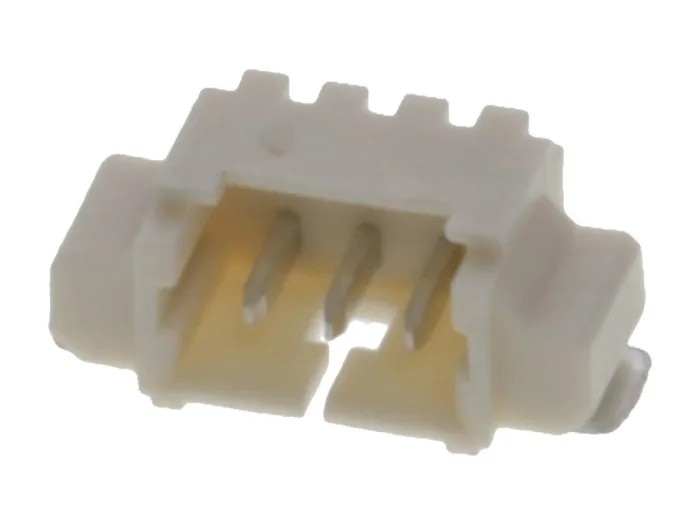

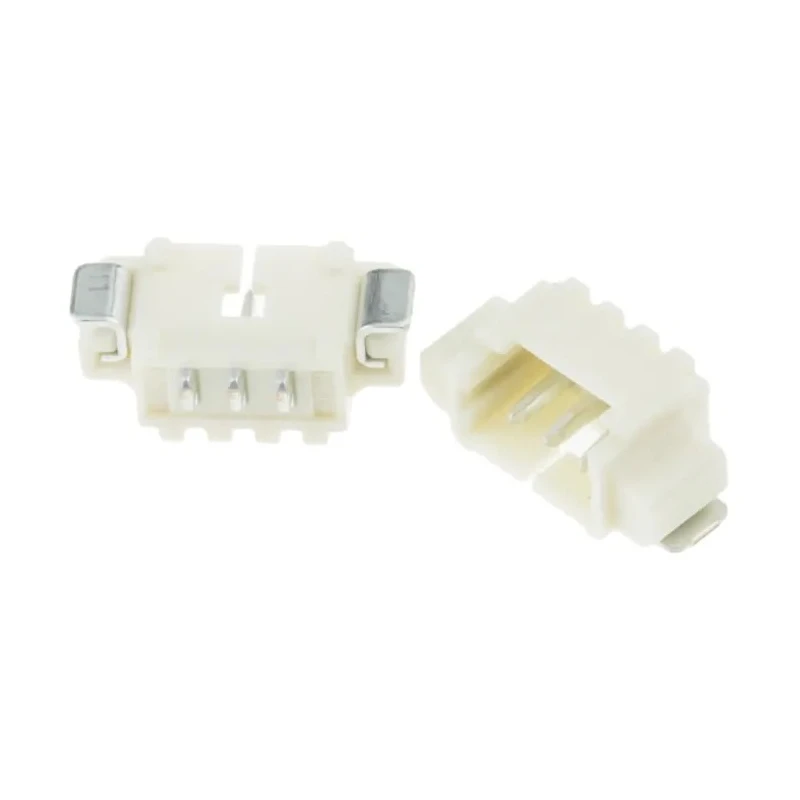

Molex PicoBlade Series Right Angle Surface PCB Header 3 Contact 1.25 mm Pitch 1 Row Shrouded 53261-0371
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for secure wire-to-board connection in space-constrained applications.
- Compact single-row 3-contact configuration with 1.25 mm pitch.
- Constructed with polyamide housing for durability and flame retardance.
- Contacts made from tin-plated phosphor bronze to ensure reliable conductivity.
- Rated for 125V and 1A current suitable for low power applications.
- Right angle orientation provides efficient PCB mounting geometry.
- Shrouded design offers protection and reliable mating.
- Mount type is surface mount suitable for modern PCB assembly.
Product Description
Molex 53261-0371 PicoBlade Series Right Angle Surface PCB Header is a high-quality compact connector designed for electronic applications requiring a 3-contact solution. Featuring a 1.25 mm pitch and single-row configuration, it enables secure and efficient linkage of wires to circuit boards in space-restricted environments.
The header housing is manufactured from durable polyamide material that meets flame retardance standards for enhanced safety. Contacts are constructed using phosphor bronze with tin plating to provide excellent conductivity and corrosion resistance. Its right angle orientation and shrouded design protect contacts while ensuring vibration-proof secure attachment.
This PCB header supports a voltage rating of 125V and a current rating of 1A, suitable for medical equipment, server rooms, maritime electronics, and other industrial and commercial uses. The operating temperature spans from -40°C to +105°C, making it reliable for demanding conditions.
The solder termination type ensures strong mechanical and electrical connections on surface mount boards. The friction lock design offers added retention to prevent accidental disconnects in dynamic or vibration-prone environments.
Compact single-row design with 3 contacts saves space. 1.25 mm pitch supports consistent signal transfers. Polyamide housing provides flame-retardant safety. Phosphor bronze tin-plated contacts ensure reliable conductivity.
Right angle layout optimizes PCB assembly and wiring. Surface mount and solder termination for robust attachment. Wide operating temperature range for industrial applications. Suitable for medical, server room, and maritime use.
Friction lock mechanism prevents vibration loose connections. Voltage rating 125V and current rating 1A for low power circuits.
Select Molex PCB Headers at EnvMart for trusted connectors that combine durability, compact design, and reliable electrical performance. Browse our extensive catalog for more Molex electronic components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 125V and a current of 1A, making it suitable for low power applications.
It features a solder termination type, ensuring strong mechanical and electrical connections on surface mount boards.
The connector has a 1.25 mm pitch and a compact single-row configuration with 3 contacts.
The housing is made from polyamide, while the contacts are made from phosphor bronze with tin plating for reliable conductivity.
It operates within a temperature range of -40°C to +105°C, suitable for demanding conditions.
This model features a right angle orientation, which optimizes PCB assembly and wiring.
This header is shrouded, providing protection for the contacts and ensuring reliable mating.
It utilizes a wire-to-board connector system, designed for secure connections between wires and circuit boards.
This model has 1 row and 3 contacts, making it compact for space-constrained applications.
It is suitable for use in medical equipment, server rooms, maritime electronics, and other industrial and commercial applications.
The country of origin for this PCB header is India.
The friction lock design adds retention to prevent accidental disconnects, especially in dynamic or vibration-prone environments.
