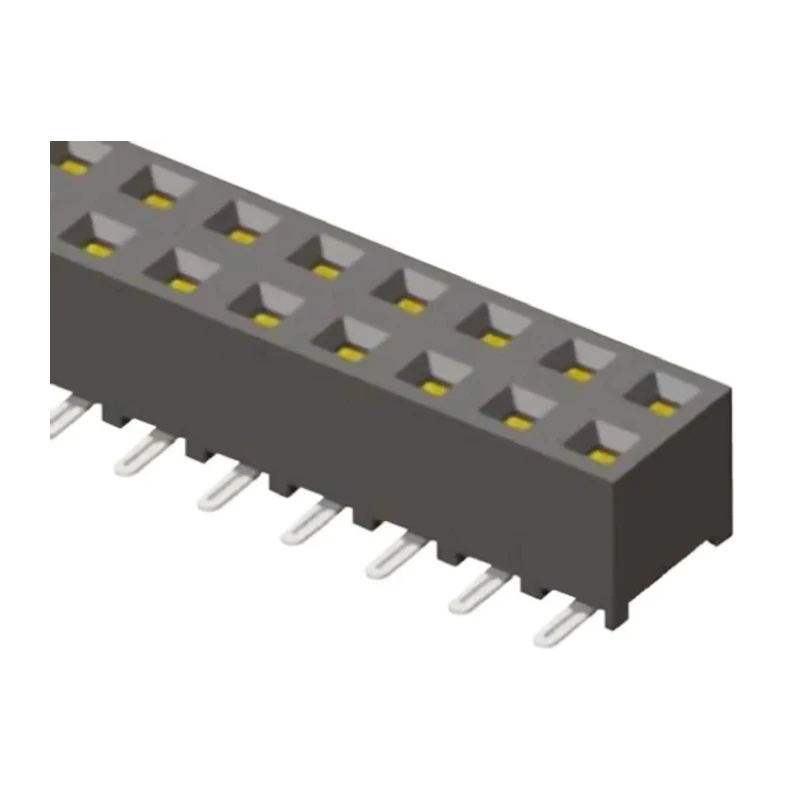

Samtec SMM Series Straight Surface PCB Socket 16-Contact 2 Row 2 mm Pitch Solder SMM-108-02-S-D

Samtec SMM Series model SMM-108-02-S-D is a straight surface mount PCB socket designed for reliable board-to-board connections in electronic assemblies. Featuring 16 contacts arranged in 2 rows, this socket provides precise 2 mm pitch solder termination supporting currents up to 3.9A and voltage ratings of 350V.

The housing material is constructed from durable black liquid crystal polymer (LCP) providing excellent mechanical strength and thermal stability. The contacts are made of beryllium copper alloy with Tiger Eye technology, plated with 0.76 µm gold on contact areas and matte tin on PCB tails, ensuring superior conductivity and corrosion resistance.

Designed for surface mount technology (SMT) with a straight orientation, it suits various industrial applications including electronics manufacturing, laboratory equipment, instrumentation, automotive electronics, and communications hardware.

This socket operates across a wide temperature range from -55 to 125°C making it suitable for harsh environments and demanding industrial conditions. Its dimensions include a row pitch of 1.27 mm providing precise alignment on PCB layouts.

The SMM series sockets are compatible with mating TMM SMT and through-hole headers, facilitating flexible assembly options. Female contact gender ensures secure and reliable connections with mating connectors, contributing to enhanced signal integrity in complex electronic systems.

This PCB socket supports 16 contacts in a dual-row configuration for compact design needs. Voltage rating of 350V and current capacity of 3.9A suit moderate power electronics applications. Housing made with black liquid crystal polymer ensures thermal and mechanical resilience.

Beryllium copper alloy contacts with gold plating provide optimal electrical performance and corrosion resistance. Suitable for surface mount assembly with straight orientation and 2 mm pitch solder termination. Operating temperature range from -55°C to 125°C enables use in various industrial and commercial environments.

Included in the Samtec SMM series known for high-quality Tiger Eye contact technology. Compatible with matching TMM headers for versatile board-to-board connector solutions. Explore more electronics components and PCB Sockets under the Electronics & Electricals category at EnvMart for professional industrial and laboratory applications.
