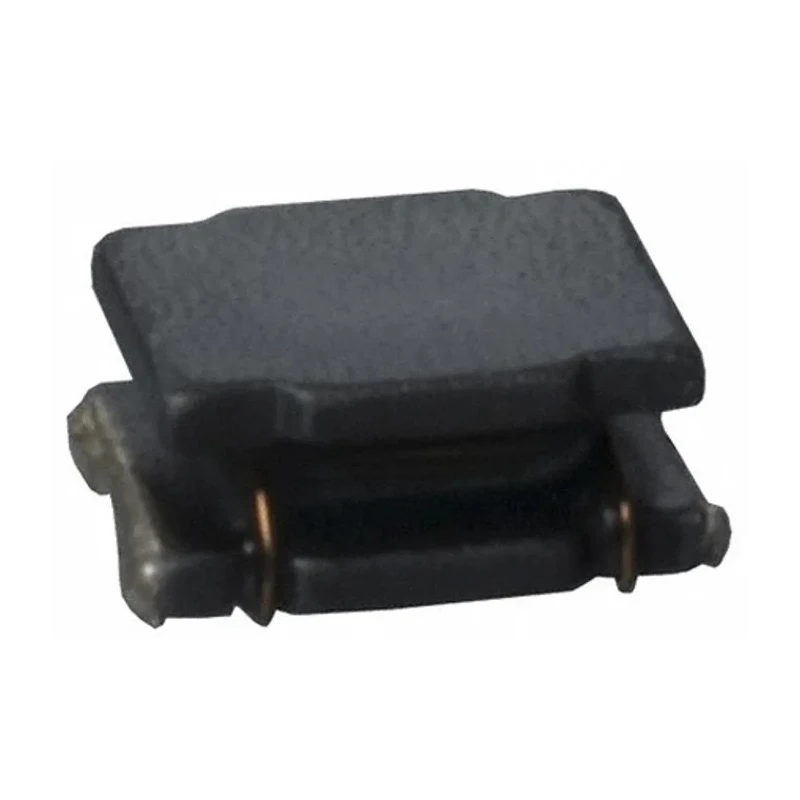

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20 % 1.4 A Idc LQH5BPN220MT0L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPN220MT0L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 1.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 259mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 15MHz |
| Inductor Construction | Wirewound |
Key Features
- Employs a robust wirewound construction on a ferrite core for enhanced performance.
- Shielded design reduces electromagnetic interference in sensitive circuits.
- Compact 5050 package size with 5 mm length and 2 mm height for surface mounting.
- Suitable for high inductance requirements in power supply booster circuits.
- Offers a maximum DC resistance of 259 mΩ ensuring efficient power handling.
- Operates reliably across a temperature range from -40°C to 125°C.
- Complies with RoHS standards indicating environmentally safe manufacturing.
- Maximum self-resonant frequency of 15 MHz supports various signal filtering applications.
Product Description
Murata LQH5BPN220MT0L is a shielded wirewound surface mount inductor incorporating a ferrite core, delivering 22 μH inductance with ±20 % tolerance and a maximum DC current rating of 1.4 A. Designed in a compact 5050 package measuring 5 mm in length, 5 mm in depth, and 2 mm in height, this inductor is surface-mountable and moulded for protection and durability.
This inductor series features copper wire wound tightly around the ferrite core, coated with resin for mechanical strength and stability. Its shielded construction minimizes electromagnetic interference, making it ideal for sensitive electronic circuits such as digital cameras, mobile phones, TV devices, and gaming machines.
With a maximum DC resistance of 259 mΩ and operating temperature range from -40°C to 125°C, the product supports demanding environments and power supply booster circuits. The inductor's maximum self-resonant frequency is 15 MHz, suitable for various signal filtering and smoothing tasks in electronic designs.
The solder termination style facilitates reliable PCB assembly and mechanical integrity. This product complies with RoHS regulations, ensuring it meets environmental safety standards.
Employs wirewound construction on ferrite core to provide stable inductance. Shielded design reduces EMI and enhances device performance. Compact 5050 package enables easy surface mounting on PCBs. Wide operating temperature range from -40°C to 125°C supports harsh applications.
Maximum DC current of 1.4 A suitable for power electronics circuits. Low DC resistance ensures efficient power delivery and minimal loss. RoHS compliant for environmental safety. High self-resonant frequency of 15 MHz for versatile filtering.
Durable resin coating improves mechanical strength and reliability. Ideal for consumer electronics including cameras and mobile phones.
This Murata surface mount inductor is categorized under Surface Mount Inductors, suitable for electronic component applications across consumer and industrial sectors. Explore more Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 1.4 A.
It is designed in a compact 5050 package, measuring 5 mm in length, 5 mm in depth, and 2 mm in height.
The maximum self-resonant frequency is 15 MHz, making it suitable for various signal filtering applications.
It operates reliably across a temperature range from -40°C to 125°C.
This inductor employs a wirewound construction on a ferrite core, which provides stable inductance.
The shielded design reduces electromagnetic interference, enhancing performance in sensitive electronic circuits.
The maximum DC resistance is 259 mΩ, ensuring efficient power handling.
It features a solder termination style, which facilitates reliable PCB assembly.
Yes, this product complies with RoHS standards, indicating it meets environmental safety regulations.
It is suitable for high inductance requirements in power supply booster circuits and sensitive electronic devices such as cameras and mobile phones.
This model is packaged in embossed tape for easy handling and assembly.
