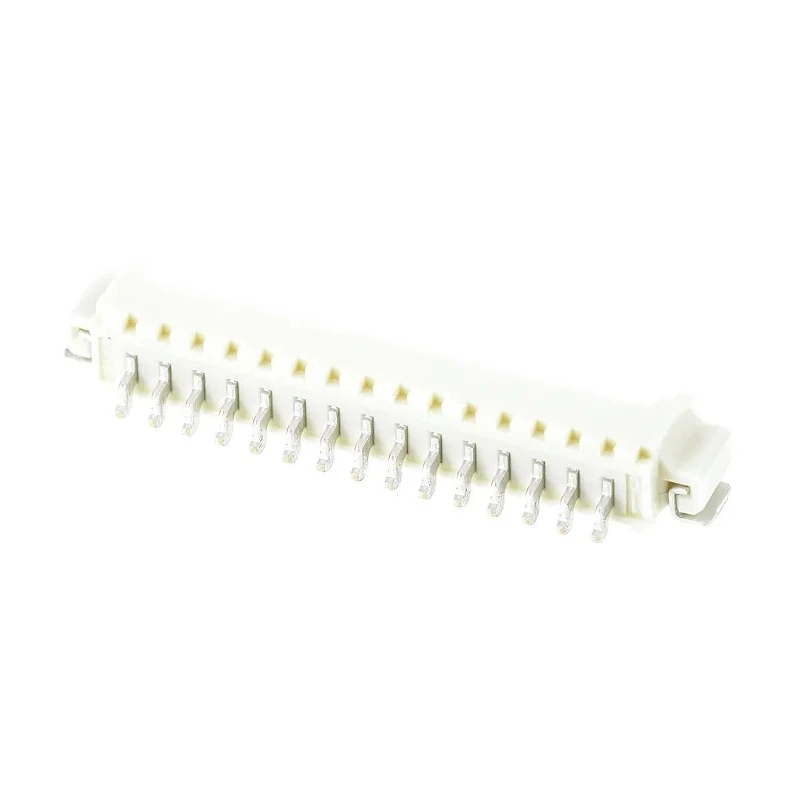

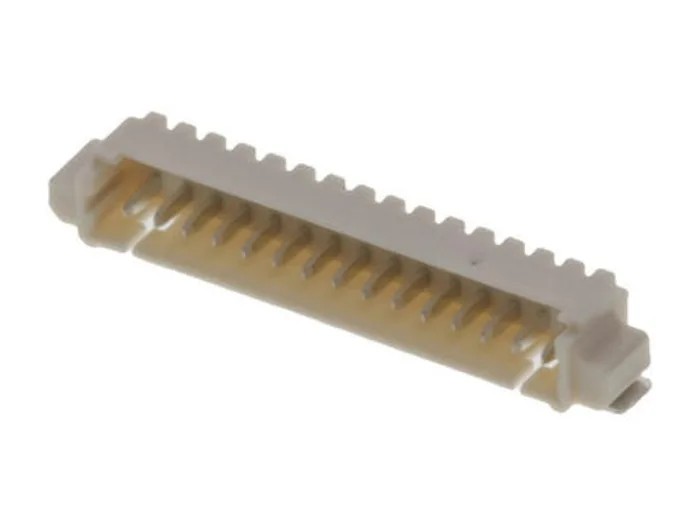

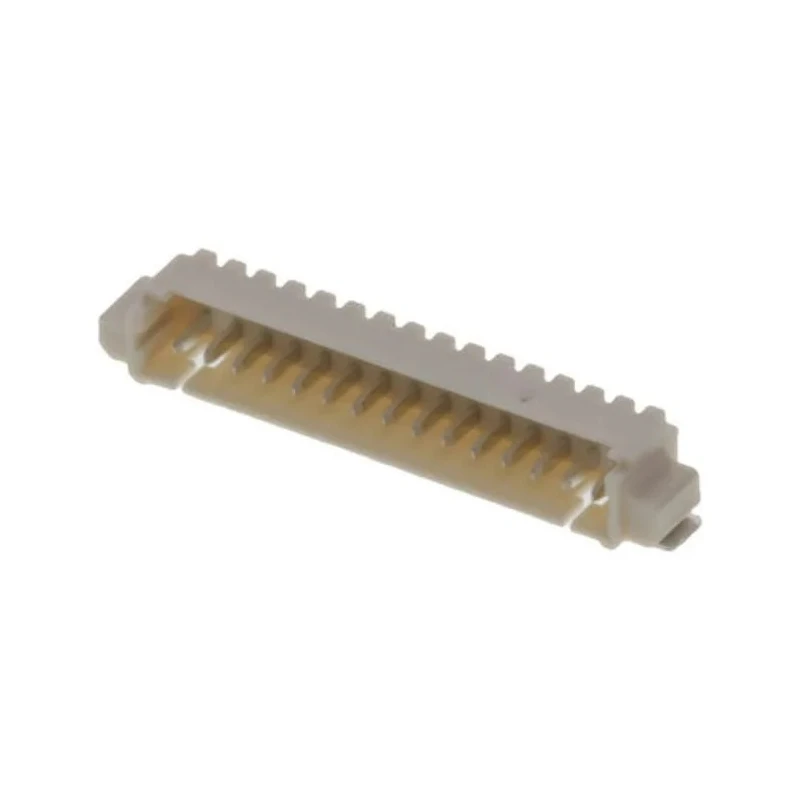

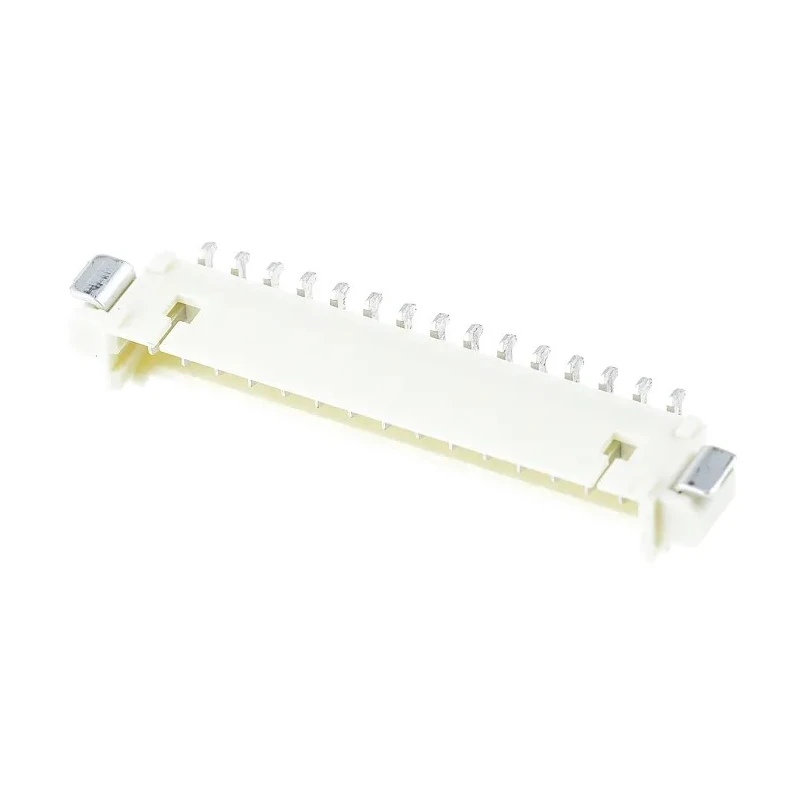

Molex PicoBlade Series Right Angle Surface Mount PCB Header, 1.25 mm Pitch, 15 Contacts, 1 Row, Shrouded 53261-1571
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 15 male contacts with 1.25 mm pitch for compact layouts.
- Right angle orientation enhances PCB design flexibility.
- Shrouded structure provides enhanced reliability and connection security.
- Supports up to 1A current and 125V voltage for versatile electronic applications.
- Constructed with phosphor bronze contacts plated with tin for durability.
- Solder termination ensures strong, reliable electrical connections.
- Designed for operation between -40°C and maximum 105°C in demanding environments.
- Suitable for industrial automation systems and electronics requiring space-saving components.
Product Description
Molex 53261-1571 PicoBlade Series Right Angle Surface Mount PCB Header offers 15 male contacts with a compact 1.25 mm pitch and shrouded design, tailored for secure wire-to-board connections in industrial and electronic systems.
This PCB header's right angle orientation supports efficient PCB layout designs where vertical space is limited. Its phosphor bronze contacts, plated with tin, deliver excellent conductivity and wear resistance, ensuring reliable signal integrity and long-term performance.
Designed to handle current up to 1A and voltage levels up to 125V, it is suitable for a wide range of electronic applications requiring dependable power delivery and signal transmission. The header employs a solder termination method, providing robust electrical connections compliant with high-performance demands.
Operating temperature range from -40°C to 105°C enables effective use in harsh industrial environments. The shrouded construction helps prevent accidental contact and increases connection reliability through mechanical protection.
Applications include automation systems, industrial electronics, commercial devices, and other settings where compact, reliable PCB connectors are necessary. Its durable, high-temperature thermoplastic body ensures resilience against environmental stresses.
Features 15 male contacts with 1.25 mm pitch for compact layouts. Right angle orientation enhances PCB design flexibility. Shrouded structure provides enhanced reliability and connection security. Supports up to 1A current and 125V voltage for versatile electronic applications.
Constructed with phosphor bronze contacts plated with tin for durability. Solder termination ensures strong, reliable electrical connections. Designed for operation between -40°C and maximum 105°C in demanding environments.
Suitable for industrial automation systems and electronics requiring space-saving components. Durable thermoplastic housing withstands harsh conditions and extends lifecycle. Ideal for wire-to-board connectors in laboratory, industrial, and commercial electronics.
Explore Molex connectors and PCB Headers in EnvMart’s comprehensive electronics components catalog for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB header is 1.25 mm, which allows for compact layouts in electronic designs.
This model features 15 male contacts, providing multiple connection points for wire-to-board applications.
It supports a maximum voltage of 125V, making it suitable for a variety of electronic applications.
It employs a solder termination method, ensuring strong and reliable electrical connections.
This PCB header is designed to operate within a temperature range of -40°C to 105°C, suitable for demanding environments.
The contacts are made of phosphor bronze and are plated with tin, which enhances conductivity and wear resistance.
The header features a right angle orientation, which enhances PCB design flexibility, especially in space-constrained layouts.
It supports a current rating of up to 1A, suitable for various electronic applications.
Yes, this model has a shrouded design, which provides enhanced reliability and connection security.
It utilizes a wire-to-board connector system, ideal for connecting wires directly to a PCB.
The country of origin for this PCB header is India.
It is suitable for applications in industrial automation systems, commercial devices, and other electronics requiring compact connectors.
