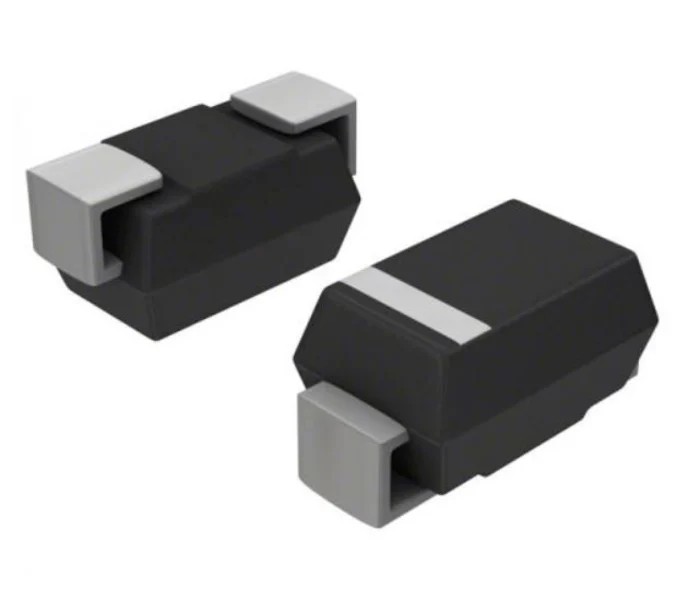

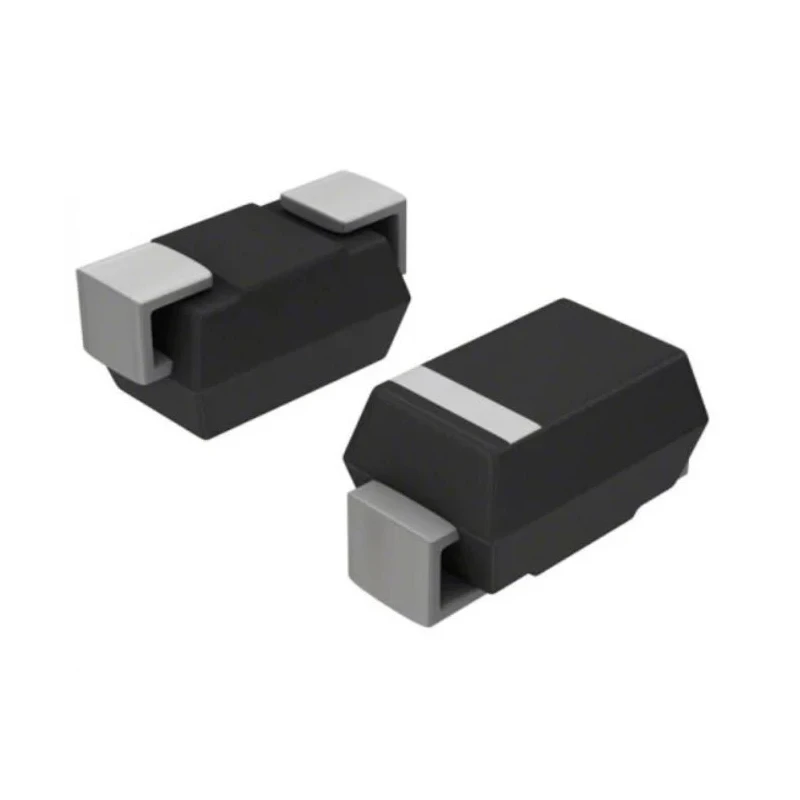

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Surface Mount 2-Pin SMC SMCJ33CA-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ33CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 28.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration providing bi-directional transient voltage suppression.
- Peak pulse power dissipation of 1.5 kW ensures robust transient surge handling.
- Maximum reverse stand-off voltage of 33 V suitable for sensitive electronics protection.
- Compact surface mount SMC package with 2 pins for easy PCB integration.
- Operates reliably in temperature range from -55°C to 150°C.
- Clamping voltage of 53.3 V ensures effective voltage limiting during transient events.
- Maximum peak pulse current of 28.1 A protects circuits from high surge currents.
- Automotive standards compliance with AEC-Q101 qualifies it for automotive electronics use.
Product Description
Vishay SMCJ33CA-E3/57T 1-Element Bi-Directional TVS Diode offers robust transient voltage suppression with a 1.5 kW peak pulse power dissipation, ideal for protecting sensitive electronic circuits from voltage spikes. This device is built for surface mount assembly in the compact SMC package featuring 2 pins, enabling seamless integration on printed circuit boards.
Designed with a single diode configuration and bi-directional voltage protection, it effectively shields equipment against electrostatic discharge and transient voltage surges. The diode supports a maximum reverse stand-off voltage of 33 V, with clamping voltage controlled at 53.3 V, providing reliable voltage limitation during transient events.
Rated for operation in ambient temperatures from -55°C up to 150°C, the diode ensures durability and stability across harsh industrial environments. It meets automotive industry standards (AEC-Q101), making it suitable for automotive electronics and other demanding applications requiring stringent reliability.
The device features a low maximum reverse leakage current of 1 μA, minimizing power loss during non-transient conditions. Its peak pulse current handling up to 28.1 A provides strong surge protection capabilities. The height, length, and width of 2.42 mm, 7.11 mm, and 6.22 mm respectively contribute to its compact footprint on PCBs.
Single diode, bi-directional transient voltage suppression for protection of electronic components. Surface mount SMC package designed for high reliability in compact applications. 1.5 kW peak pulse power dissipation suitable for surge protection in industrial electronics.
Wide operating temperature range ensures performance under diverse environmental conditions. Complies with automotive standards (AEC-Q101) for enhanced durability in vehicle electronics. Low leakage current reduces power consumption during normal operation.
Robust clamping voltage and peak pulse current ratings guard against potentially damaging transients. Compact size eases installation in space-critical designs.
This TVS Diode is commonly used in industrial, automotive, telecommunications, and consumer electronics for protection against voltage transients. It helps maintain circuit integrity and extends equipment lifespan by preventing damage from electrostatic discharge and electrical surges.
Explore our extensive range of electronic components and semiconductors at EnvMart to find the ideal solutions for your electrical protections needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMCJ33CA-E3/57T is 1.5 kW, which ensures robust transient surge handling.
The maximum reverse stand-off voltage for this diode is 33 V, making it suitable for protecting sensitive electronics.
The clamping voltage of this TVS diode is 53.3 V, providing effective voltage limiting during transient events.
This model operates reliably within a temperature range of -55°C to 150°C, ensuring performance in diverse environments.
The maximum peak pulse current that the SMCJ33CA-E3/57T can handle is 28.1 A, which protects circuits from high surge currents.
This diode comes in a compact SMC package type with 2 pins, facilitating easy integration on printed circuit boards.
Yes, it complies with automotive standards AEC-Q101, qualifying it for use in automotive electronics.
The maximum reverse leakage current for the SMCJ33CA-E3/57T is 1 μA, minimizing power loss during non-transient conditions.
The dimensions of this model are 2.42 mm in height, 7.11 mm in length, and 6.22 mm in width.
This diode features a single diode configuration with bi-directional voltage protection, effectively shielding equipment from transients.
The SMCJ33CA-E3/57T is commonly used in industrial, automotive, telecommunications, and consumer electronics for protection against voltage transients.
The minimum breakdown voltage for this model is 36.7 V, which is essential for its operation in transient voltage suppression.
