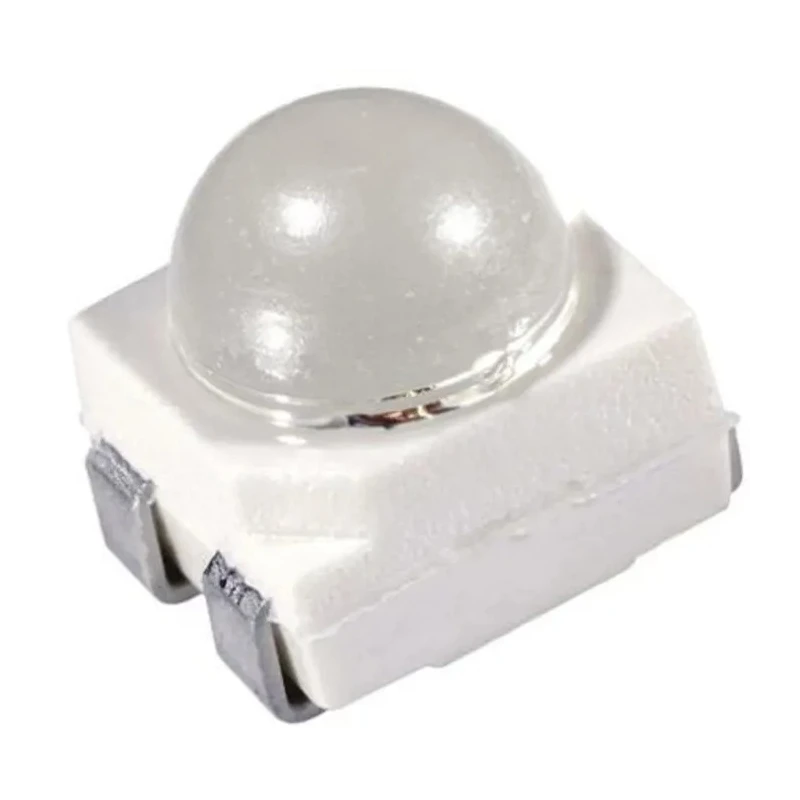

ams OSRAM 2.15 V Amber LED PLCC 4 Surface Power TOPLED Lens LA E63F-EAFA-24-3B5A-Z

ams OSRAM LA E63F-EAFA-24-3B5A-Z Amber LED PLCC 4 Surface Power TOPLED Lens is a specialized light-emitting diode designed to deliver high brightness and focused amber light in a compact surface-mount package. Operating at a low forward voltage of 2.15 V and supporting a maximum forward current of 70 mA, this LED is suitable for a wide range of electronics and automotive lighting applications.

The PLCC 4 package includes a dome lens with dimensions measuring 3.4 x 3 mm, offering a clear lens finish and round shape optimized for a tightly focused beam angle of 30°. This configuration ensures intense luminous output with a luminous flux of 4.2 lumens and luminosity rating of 6.7 candela, delivering premium illumination performance.

This LED features a dominant wavelength of 617 nm, producing a distinct amber color that was initially developed for automotive brake-light applications but is also widely used in traffic signals, backlighting for instrument panels, keypads, and indoor display lighting. The device’s robust design supports surface mounting and comes packaged in tape and reel format for high-efficiency automated production lines.

Compliant with RoHS standards, this LED belongs to the Power TOPLED Lens series by ams OSRAM, known for focused radiation and high efficiency. Its advantages include a compact SMT form factor, enabling integration into compact electronic devices and automotive lighting arrays with ease.

The LED’s applications extend to various industrial, commercial, and automotive uses including traffic management systems, signaling, micro incandescent lamp replacement, and symbol illumination in instrumentation. The surface power configuration offers superior directional intensity, making this LED a preferred choice for precision lighting projects requiring durability and reliability.

The device operates at 2.15 V forward voltage and a maximum forward current of 70 mA. Features a compact PLCC 4 SMT package with dome lens for focused light output. LED luminous flux of 4.2 lm and luminosity of 6.7 cd with a 30° viewing angle.

Dominant wavelength of 617 nm providing strong amber color for automotive and signaling uses. RoHS compliant and supplied in tape and reel packaging for automated assembly. Suitable for traffic lights, display backlighting, symbol illumination, and automotive marker lights.
