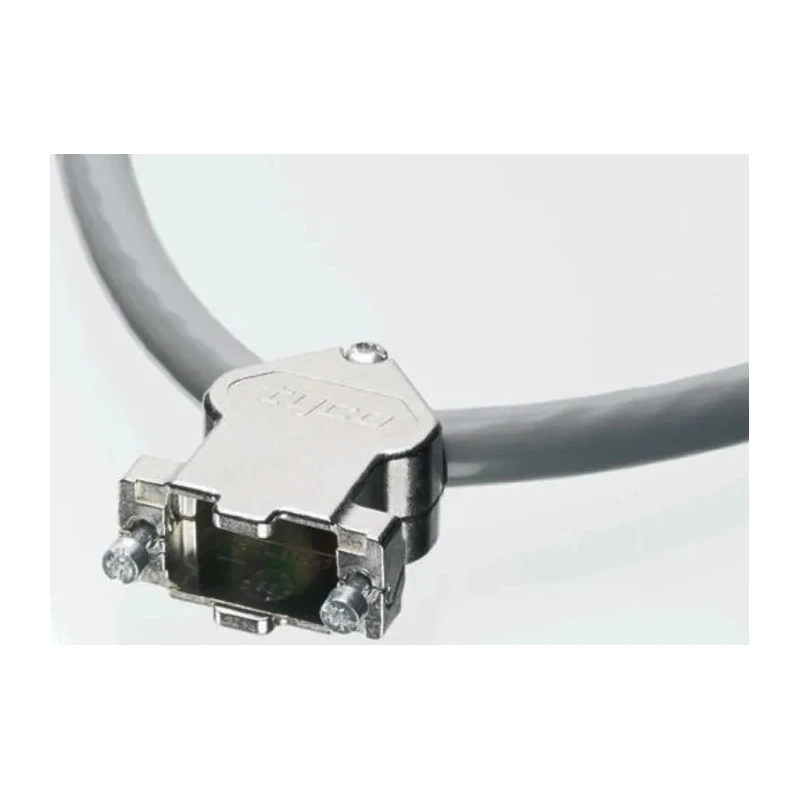

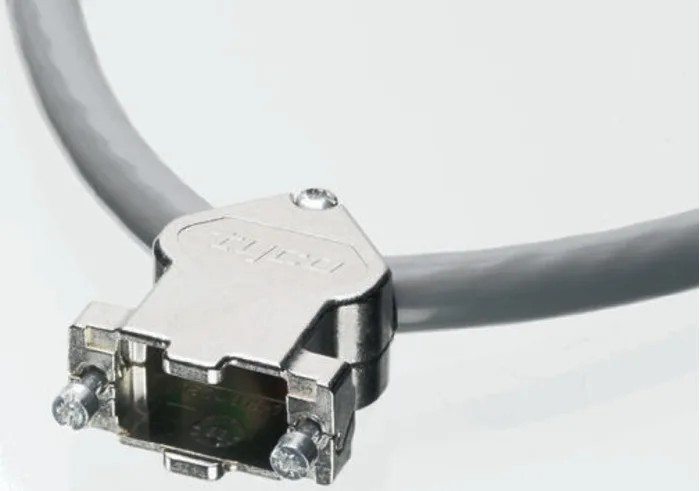

TE Connectivity AMPLIMITE HD-20 Series Steel Angled 9 Way D-Sub Backshell 1534805-1
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | TE Connectivity |
| Colour | Silver |
| Orientation | Angled |
| Housing Material | Steel |
| Series | AMPLIMITE HD-20 |
| Standards/Approvals | RoHS |
| Number of Contacts | 9 |
| Connector Type D | D-Sub Backshell |
| D-Sub Shell Size | E |
| Housing Plating | Metallised |
Key Features
- Constructed from metallised steel housing for durability and shielding.
- Angled orientation facilitates cable routing in compact spaces.
- Supports cable diameters ranging 4.8 to 9 mm for the 9-way variant.
- Includes blanking plate for maintaining screening integrity at cable run terminations.
- Ideal for daisy-chaining connections in industrial BUS systems.
- Compliant with RoHS standards for environmental safety.
- Designed with thread forming fastening screws for secure attachment.
Product Description
TE Connectivity 1534805-1 AMPLIMITE HD-20 Series Steel Angled 9 Way D-Sub Backshell is a robust connector accessory designed for reliable industrial and electronic applications. Featuring a high-quality metallised steel diecast housing, this angled backshell provides excellent mechanical protection and EMI shielding for D-Sub connectors.
Its angled orientation enables efficient cable management in restricted spaces while accommodating cables with diameters from 4.8 to 9 millimeters, specific to the 9-contact version. The product includes a blanking plate to maintain screening effectiveness at the termination point of cable runs, which is critical for signal integrity in complex BUS system configurations.
These backshells are engineered to support dual cable entry, facilitating daisy-chaining of industrial connections and enhancing system modularity. The fastening screws are thread forming, designed for secure installation despite the unthreaded holes on the backshell itself, providing sturdy and vibration-resistant connections.
Compliant with RoHS directives, this unit meets environmental standards required for modern industrial manufacturing. The AMPLIMITE HD-20 Series backshells are available in various sizes including 9, 15, 25, and 37 contacts, making them versatile for a wide range of applications in electronics assembly, industrial automation, manufacturing, and telecommunications.
Constructed from metallised steel housing for durability and shielding. Angled orientation facilitates cable routing in compact spaces. Supports cable diameters ranging 4.8 to 9 mm for the 9-way variant. Includes blanking plate for maintaining screening integrity at cable run terminations.
Ideal for daisy-chaining connections in industrial BUS systems. Compliant with RoHS standards for environmental safety. Designed with thread forming fastening screws for secure attachment.
This product caters to industrial and electronic manufacturing sectors seeking secure and efficient cable connection solutions. It is particularly suited for applications requiring robust EMI protection and flexible cable entry options.
Explore additional TE Connectivity solutions and components on EnvMart for comprehensive connector and backshell options in power and electronic connectivity systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The housing material of this D-Sub backshell is constructed from metallised steel, providing durability and EMI shielding.
This model features an angled orientation, which facilitates cable routing in compact spaces.
It supports cable diameters ranging from 4.8 mm to 9 mm for the 9-way variant.
This backshell has 9 contacts, making it suitable for various industrial and electronic applications.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
It is designed with thread forming fastening screws, which provide secure attachment even with unthreaded holes on the backshell.
The product includes a blanking plate that helps maintain screening integrity at the termination point of cable runs.
The D-Sub shell size for this model is E, which is compatible with various connectors.
It is ideal for daisy-chaining connections in industrial BUS systems and various applications in electronics assembly and telecommunications.
The color of this backshell is silver, which is typical for metallised steel housings.
The country of origin for this backshell is India.
This backshell belongs to the AMPLIMITE HD-20 Series, which includes various sizes and configurations.
