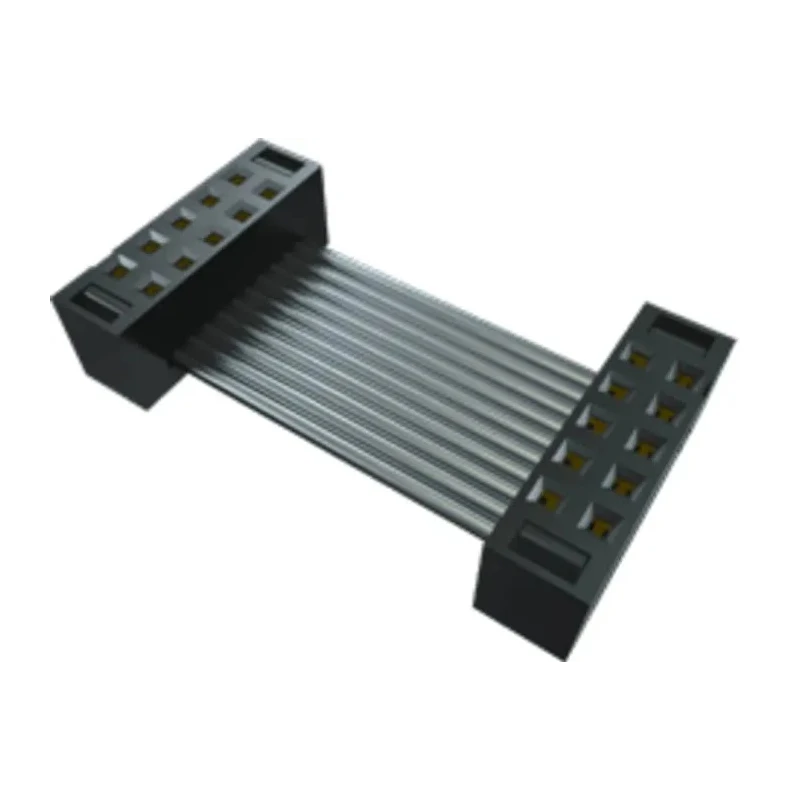

Samtec Flat Ribbon IDC Socket Cable Assembly, Black Glass Filled Polyester Jacket, 3.175 mm Length TCSD-20-D-03.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-20-D-03.00-01-N |
| Cable Length | 3.175mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Glass Filled Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Contact Gender A | Female |
Key Features
- The cable features black glass filled polyester jacket for high insulation.
- Connector type is Tiger Eye IDC with female contact and female connector gender on both ends.
- Contact material is Beryllium copper providing durability and conductivity.
- Supports a current rating of 2.8 amperes per pin.
- Operating temperature ranges from -40°C to +105°C ensuring performance in varied environments.
- The series TCSD ensures compliance with RoHS standards.
- Ideal for industrial electronic cable assemblies requiring precise, durable connections.
- Compact cable length of 3.175 mm suits space-constrained applications.
Product Description
Samtec TCSD-20-D-03.00-01-N is a Flat Ribbon IDC Socket Cable Assembly with Tiger Eye IDC connectors on both ends, designed for reliable and durable electronic interconnection in industrial and automation applications.
The product features a black glass filled polyester jacket that offers robust insulation and mechanical protection against environmental factors. Its contact points are constructed of Beryllium copper, delivering excellent conductivity and enhanced durability in electrical circuits.
This cable assembly has a compact length of 3.175 mm suitable for high-density wiring configurations. The connector type is Tiger Eye IDC, female gender on both connectors and contacts, ensuring secure and compatible mate connections with corresponding components.
The TCSD series cable supports a current rating of 2.8 amperes per pin and operates reliably in a wide temperature range from -40°C to +105°C, meeting the demands of harsh industrial environments. It also complies with RoHS directives, ensuring environmental and health safety standards are met.
Applications include industrial automation systems, electronic control units, and any wiring scenarios demanding flat ribbon cable assemblies with reliable Tiger Eye IDC connections.
The cable features black glass filled polyester jacket for high insulation. Connector type is Tiger Eye IDC with female contact and female connector gender on both ends. Contact material is Beryllium copper providing durability and conductivity.
Supports a current rating of 2.8 amperes per pin. Operating temperature ranges from -40°C to +105°C ensuring performance in varied environments. The series TCSD ensures compliance with RoHS standards. Ideal for industrial electronic cable assemblies requiring precise, durable connections.
Compact cable length of 3.175 mm suits space-constrained applications. Explore the full range of Ribbon Cables and wire to board cable assemblies on EnvMart to find compatible and high-quality cabling solutions for your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length of this assembly is 3.175 mm, making it suitable for space-constrained applications.
It features Tiger Eye IDC connectors with female contacts on both ends, ensuring secure connections with compatible components.
The assembly supports a current rating of 2.8 amperes per pin, suitable for various electrical applications.
It operates reliably within a temperature range of -40°C to +105°C, making it suitable for harsh industrial environments.
The jacket is made of black glass filled polyester, providing high insulation and mechanical protection.
Yes, this cable assembly complies with RoHS standards, ensuring it meets environmental and health safety regulations.
The contacts are made from Beryllium copper, which offers excellent conductivity and durability in electrical circuits.
It is ideal for industrial automation systems, electronic control units, and any wiring scenarios that require flat ribbon cable assemblies with reliable connections.
Both connectors are female gender, ensuring compatibility with corresponding components.
This cable assembly is manufactured in India.
It belongs to the TCSD series, which is designed for reliable electronic interconnection in industrial applications.
This assembly is classified as a flat ribbon cable, suitable for high-density wiring configurations.
