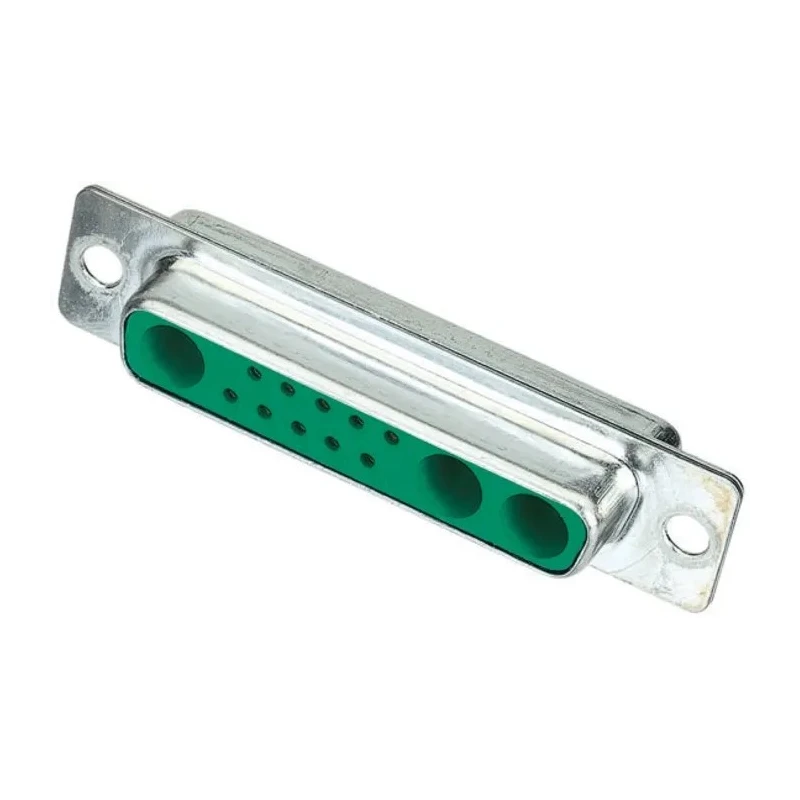

HARTING D-Sub 13 Way Straight Panel D-Sub Connector Female 09693017133
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 13 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mixed Contact Layout | 13W3 |
Key Features
- The connector features 13 contacts configured in a 13W3 mixed layout providing signal and power capability.
- It supports a current rating of 5A and voltage rating of 1000V.
- Construction uses steel housing with copper alloy contacts plated in tin, ensuring durability and corrosion resistance.
- Solder termination type with pre-mounted signal solder cup contacts facilitates ease of assembly.
- Operating temperature range spans from -55°C to 125°C for broad environmental suitability.
- Meets RoHS compliance standards, ensuring environmental safety and restriction of hazardous substances.
- Designed for panel mount with straight orientation for secure and proper fitting.
Product Description
HARTING 09693017133 is a D-Sub 13 Way Straight Panel D-Sub Connector Female designed primarily for professional industrial, power, and electronic applications. This connector supports a maximum current of 5A and voltage rating of 1000V, suitable for power distribution and signal transmission tasks.
The connector incorporates a mixed contact layout (13W3) with pre-mounted solder cup contacts that simplify wiring and assembly processes. The contact material is copper alloy plated with tin, ensuring reliable conductivity and corrosion resistance. The steel housing provides robust mechanical protection and long-term operational durability.
With a straight orientation and panel mount design, it allows secure installation in electrical panels and machinery interfaces. It operates reliably under a wide temperature range from -55°C to 125°C, making it applicable in tough industrial environments.
Compliance with RoHS standards guarantees adherence to environmental regulations restricting hazardous substances. This connector is used extensively in industrial manufacturing, automation systems, HVAC control panels, and power supply equipment.
The connector features 13 contacts in a mixed 13W3 layout for versatile connectivity. Its steel housing and tin-plated copper alloy contacts provide excellent durability. Solder cup termination type expedites installation and maintenance.
Designed for panel mounting with straight orientation ensures compatibility with various industrial applications. Wide operating temperature range of -55°C to 125°C supports harsh environments. RoHS compliant, meeting current environmental safety guidelines.
This HARTING D-Sub Connector series is trusted for delivering robust connectivity in electronic, power, and industrial sectors. Explore more connectors and electrical components in the EnvMart Power Connectors category for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 5A.
This connector has a voltage rating of 1000V.
The operating temperature range spans from -55°C to 125°C.
It features 13 contacts in a mixed 13W3 layout.
The housing is made of steel, and the contacts are copper alloy plated with tin.
This model uses a solder termination type with pre-mounted solder cup contacts.
Yes, it meets RoHS compliance standards, ensuring environmental safety and restriction of hazardous substances.
This connector is designed for panel mount with a straight orientation.
It is suitable for industrial manufacturing, automation systems, HVAC control panels, and power supply equipment.
The mixed contact layout (13W3) provides versatility for both signal and power connectivity.
The connector is manufactured in India.
The contact gender of this connector is female.
