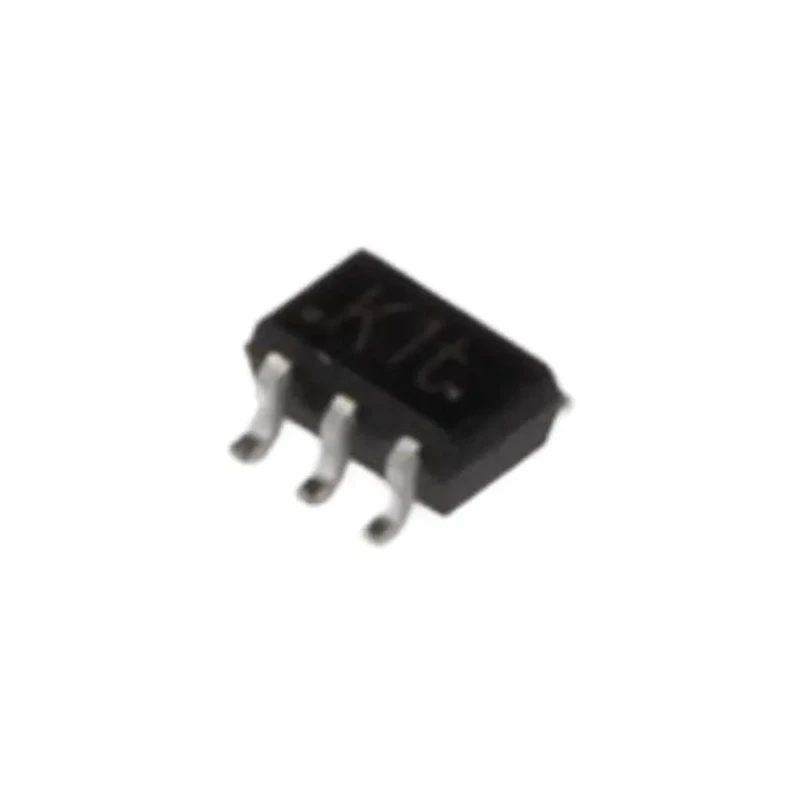

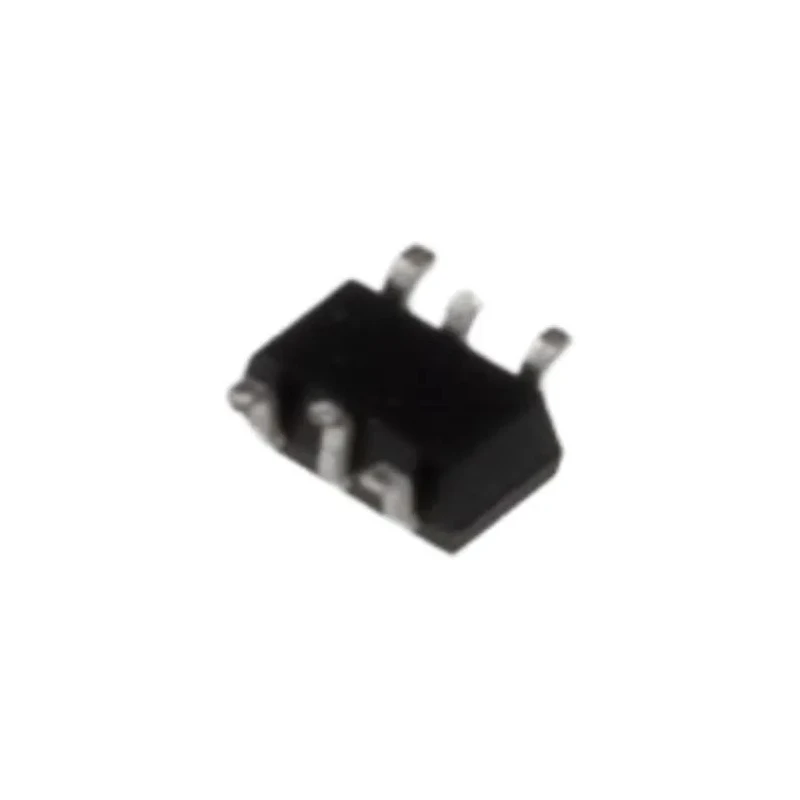

Nexperia Silicon Junction Switching Diode 6-Pin SC-88 Package 200 mA 100 V BAV99S,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Silicon Junction Switching Diode 6-Pin SC-88 Package 200 mA 100 V BAV99S,115

Name: Nexperia Silicon Junction Switching Diode 6-Pin SC-88 Package 200 mA 100 V BAV99S,115
Brand: Nexperia
SKU: 122746
Price: 0.08 USD
Availability: InStock



Category Switching Diodes Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	BAV99S,115
Width	1.35mm
Mount Type	Surface
Series	BAV99
Maximum Operating Temperature	150°C
Package Type	SC-88
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	6
Maximum Power Dissipation Pd	250mW
Diode Configuration	Series
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	200mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Reverse voltage	VR ≤ 100 V
Low capacitance	Cd ≤ 1.5 pF

Key Features

High-speed switching with a peak reverse recovery time of 4 ns.
Encapsulated in a compact SC-88 surface mount package with 6 pins.
Maximum power dissipation of 250 mW for reliable operation.
Operates over a wide temperature range from -65°C to 150°C.
Low capacitance of up to 1.5 pF minimizes signal distortion.
Maximum forward voltage rating of 1.25 V to optimize power efficiency.
Supports maximum peak surge current of 4 A for transient conditions.
Designed with planar technology and hermetically sealed packaging.

Product Description

Nexperia BAV99S,115 silicon junction Switching Diodes are high-speed diodes fabricated using planar technology. The diodes are encapsulated in small surface-mount SC-88 plastic packages with 6 pins, suitable for high density circuit boards. These diodes support a maximum forward current of 200 mA and peak reverse voltage of 100 V, making them robust for typical switching applications.

With a peak reverse recovery time (trr) of 4 ns and low capacitance (Cd ≤ 1.5 pF), they provide fast switching capability and low signal distortion. The maximum forward voltage is 1.25 V, and the diodes can dissipate a maximum power of 250 mW, ensuring reliable performance under rated conditions.

These diodes operate reliably in a broad temperature range from -65°C to 150°C, which suits varied industrial and electronic applications. Their design also includes a peak non-repetitive forward surge current capacity of 4 A, accommodating transient load conditions.

Encapsulation is hermetically sealed to ensure protection against environmental factors enhancing longevity and stability. The small SC-88 package form factor combined with the device's electrical characteristics make it ideal for use in telecommunications, industrial switching circuits, general-purpose switching, and other high-speed switching requirements.

Manufactured in Malaysia, these components satisfy the needs of high-performance, compact electronic circuits and are a trusted choice for semiconductor switching diode applications in industrial and commercial electronics.

High-speed switching with fast recovery time of 4 ns. Compact 6-pin SC-88 surface mount package. Rated for maximum forward current of 200 mA. Low capacitance reduces interference and losses. Wide operating temperature range from -65°C to 150°C.

Maximum forward voltage 1.25 V ensures efficient operation. Peak surge current capability up to 4 A for surge protection. Hermetically sealed for environmental resistance. Suitable for telecommunications and industrial switching uses.
