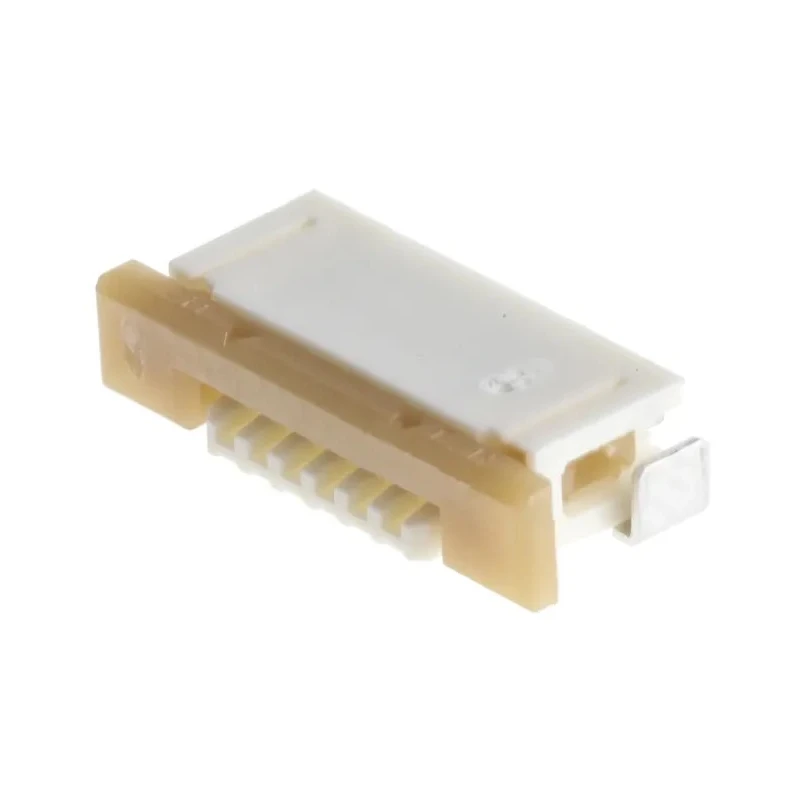

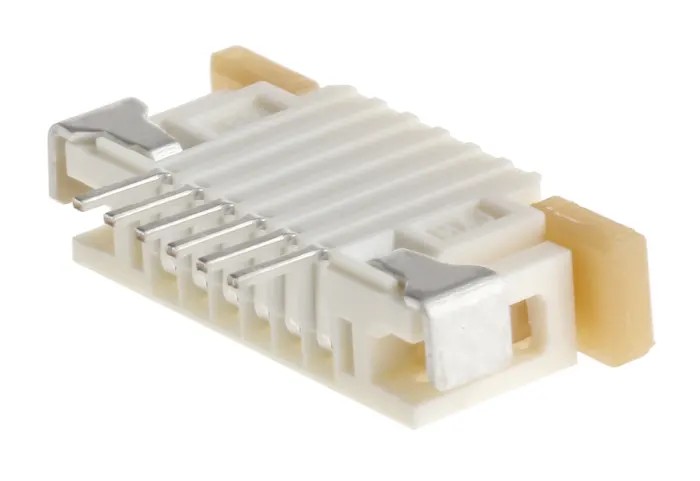

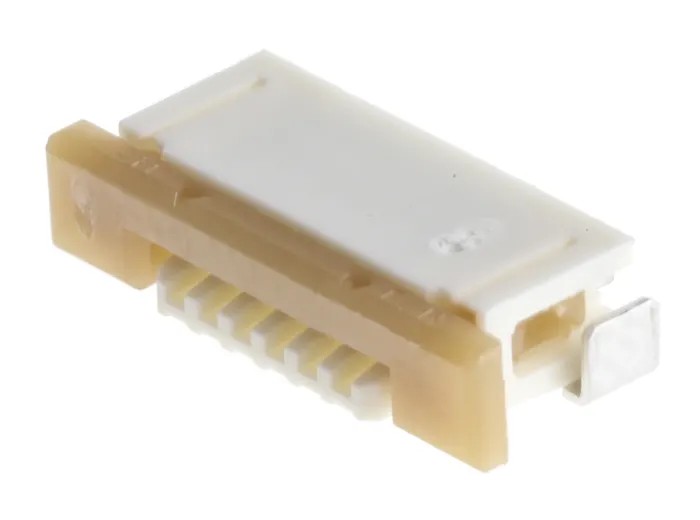

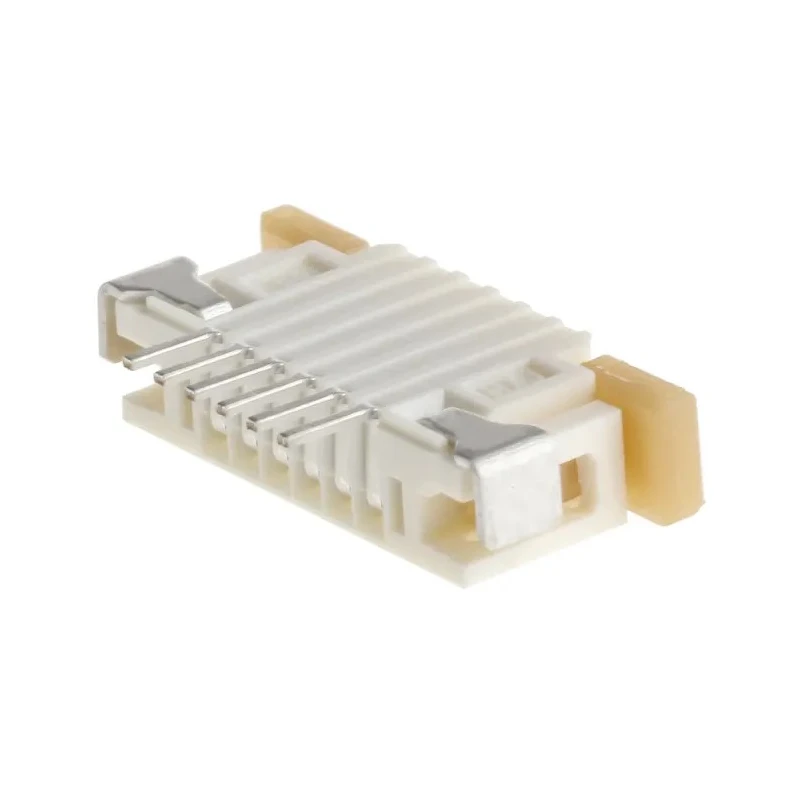

Molex 1 mm Pitch 6 Way Right Angle Female Easy-On FPC Connector, Solder 52271-0679
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52271 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth Alloy |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a space-saving design ideal for tight packaging applications.
- Zero Insertion Force (ZIF) with slide type actuator for easy and secure FPC insertion.
- Right angle orientation with bottom contacts ensures efficient PCB mounting.
- Contact material is phosphor bronze with tin bismuth alloy plating for durability.
- Supports up to 500mA current and 50V AC voltage rating.
- Housing made of nylon provides insulation and mechanical strength.
- Operating temperature ranges from -40°C to 85°C for versatile industrial use.
- Includes solder tabs for secure PCB retention and strain relief.
Product Description
Molex 52271-0679 is a 1 mm pitch, 6-way, right angle female Easy-On FPC (Flexible Printed Circuit) connector designed for surface mount technology (SMT) applications requiring solder termination. It features a space-saving, compact design suitable for tight packaging environments in various industries including automotive, medical, mobile devices, and telecommunications.
The connector employs a Zero Insertion Force (ZIF) slide type actuator that rotates 30°, facilitating easy insertion of the flexible printed cable while ensuring a secure and reliable connection. The bottom contact position and right angle orientation enable efficient PCB layout and solder tail strain relief, reinforced by solder tabs for enhanced mechanical retention.
Constructed with phosphor bronze contacts plated with tin bismuth alloy, and housed in durable nylon material, this connector offers excellent electrical conductivity and mechanical robustness. It operates reliably within a temperature range of -40°C to 85°C and supports a current of up to 500mA and a voltage rating of 50V AC, meeting a broad range of industrial specifications.
This Molex connector’s features make it ideal for demanding applications such as automotive navigation systems, consumer electronics, data communications equipment, medical devices, digital cameras, smartphones, tablets, and other compact electronic devices requiring reliable flexible cable connections.
Space-saving design suitable for compact assemblies. Zero Insertion Force (ZIF) actuator minimizes wear during repeated insertions. Right angle bottom contacts support effective PCB mounting and soldering. Phosphor bronze contacts plated with tin bismuth alloy ensure durability and conductivity.
Nylon housing provides insulation and mechanical strength. Operating temperature range of -40°C to 85°C supports various industrial environments. Locking mechanism secures FPC in place to prevent disconnection. Solder tabs provide enhanced strain relief and PCB retention.
Supports 6 contact positions, 1 row configuration for compact connections.
Available as part of the Molex 52271 series, this connector is a standard solution for engineers designing robust FPC interfaces. Explore more connectors from Molex and other top brands in the Electronics Components category at EnvMart to find solutions tailored to your application needs.
Explore more products in our FPC Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current of up to 500mA.
It has a voltage rating of 50V AC.
The operating temperature ranges from -40°C to 85°C.
The contact material is phosphor bronze with tin bismuth alloy plating, and the housing is made of nylon.
The ZIF feature employs a slide type actuator that rotates 30°, allowing easy insertion of the flexible printed cable while ensuring a secure connection.
It features a right angle orientation with bottom contacts.
This unit has 6 contact positions in a single row configuration.
It is designed for surface mount technology (SMT) applications.
Specific dimensions are not provided, but it is designed for compact assemblies, suitable for tight packaging applications.
It is suitable for various applications including automotive, medical devices, mobile devices, and telecommunications.
Yes, it includes solder tabs that provide enhanced strain relief and PCB retention.
This model is part of the Molex 52271 series.
