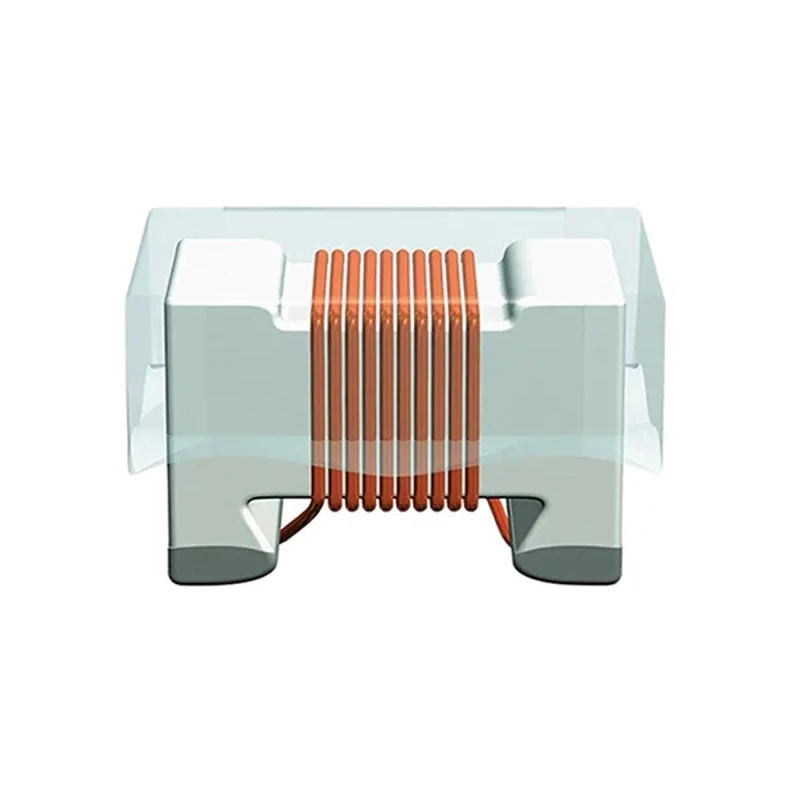

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 4.7μH ±5% 90mA Idc Q:20 B82498F1472J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F1472J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 90mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.8Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 210MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a ferrite core with wirewound construction.
- It measures 2.3 x 1.7 x 1.45mm and is epoxy moulded for vacuum pickup.
- Offers a high quality factor (Q) of 20 and a maximum self resonant frequency of 210MHz.
- Suitable for automotive applications meeting AEC-Q200 standard.
- Operating temperature ranges from -55°C to 125°C.
- Termination style is solder with 2 pins for surface mounting.
- The product is RoHS compliant ensuring environmental safety.
- Maximum DC resistance is 3.8 Ω, ensuring efficiency in power circuits.
Product Description
TDK B82498F1472J000 is a SIMID series unshielded wirewound Surface Mount Inductor designed with a ferrite core, delivering 4.7 microhenries (μH) inductance with a tolerance of ±5%. This compact 0805 package (2.3 x 1.7 x 1.45 mm) component is epoxy moulded to support vacuum pickup placement techniques in manufacturing processes.
The inductor supports a maximum direct current (DC) rating of 90mA and exhibits a high quality factor (Q) of 20, enhancing performance in high-frequency applications up to 210 MHz self resonant frequency. It has a maximum DC resistance of 3.8 ohms, balancing efficiency and power dissipation.
Certified to meet the automotive AEC-Q200 standard, this inductor operates reliably within a temperature range of -55°C to 125°C, making it suitable for robust industrial, automotive, and electronic applications requiring surface mount components.
The solder termination and 2-pin configuration allow easy integration into printed circuit boards (PCBs) using surface-mount technology (SMT) assembly. The wirewound construction on a ferrite core provides stable inductance and reduces electromagnetic interference.
The inductor’s small 0805 footprint supports space-saving PCB designs. Epoxy moulded design enhances mechanical strength and durability. Use in automotive electronics, power supplies, communication devices, and industrial controls.
Compliant with RoHS directives, ensuring no hazardous substances. High self-resonant frequency suits RF and high-speed digital circuits. Reliable performance under wide operating temperatures ensures longevity. Suitable for surface mount manufacturing processes.
Quality factor and inductance tolerance enable precision circuit tuning. Explore TDK inductors and similar electronic components on EnvMart to meet your industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 4.7 microhenries (μH) with a tolerance of ±5%.
The inductor measures 2.3 x 1.7 x 1.45 mm.
It supports a maximum direct current (DC) rating of 90 mA.
The maximum self-resonant frequency is 210 MHz.
The operating temperature range is from -55°C to +125°C.
It features a solder termination style with 2 pins for surface mounting.
This model has a minimum quality factor (Q) of 20.
The maximum DC resistance is 3.8 ohms.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It meets the AEC-Q200 automotive standard, suitable for automotive applications.
The inductor is constructed with a ferrite core.
The inductor is packaged in tape and reel format.
