Nexperia Schottky Diode 20 V 1 A 2-Pin SOD-123F PMEG2010EH,115

Free Delivery in India | Lowest Global Shipping Charges

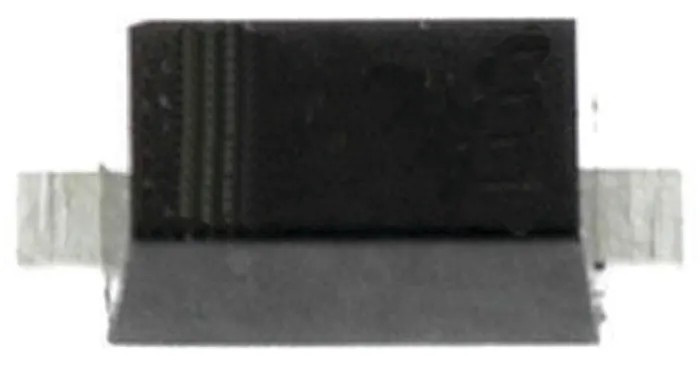

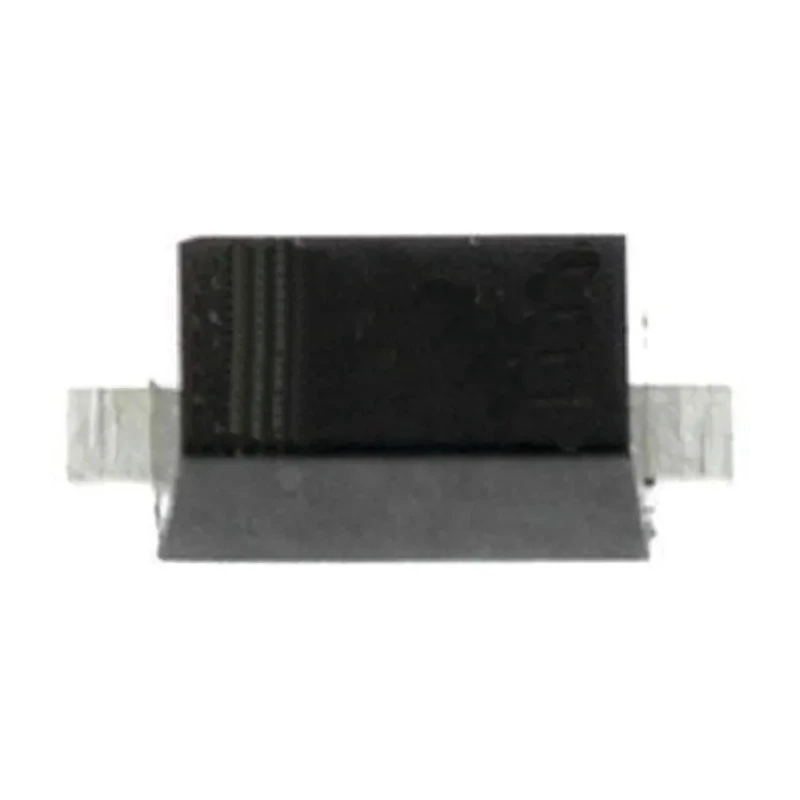

Nexperia Schottky Diode 20 V 1 A 2-Pin SOD-123F PMEG2010EH,115

Name: Nexperia Schottky Diode 20 V 1 A 2-Pin SOD-123F PMEG2010EH,115
Brand: Nexperia
SKU: 121055
Price: 0.13 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.2mm
Length	2.7mm
Model	PMEG2010EH,115
Width	1.7mm
Mount Type	Surface
Series	PMEG2010EH
Maximum Operating Temperature	150°C
Package Type	SOD-123F
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	9A
Maximum Forward Voltage Vf	500mV

Key Features

The diode supports a maximum continuous forward current of 1 ampere.
It has a peak reverse repetitive voltage rating of 20 volts.
Maximum forward voltage drop is low at 500 millivolts ensuring high efficiency.
The device operates reliably in a temperature range from -65°C to 150°C.
The peak non-repetitive forward surge current capability is 9 amperes.
Low leakage current of 200 microamperes enhances performance.
The diode features a compact SOD-123F package with dimensions 2.7mm length, 1.7mm width, and 1.2mm height.
It is optimized for low power switching losses and high junction temperature applications.

Product Description

Nexperia PMEG2010EH,115 Schottky Diode is a high-efficiency discrete semiconductor device designed for surface mounting on printed circuit boards. It comes in a low-profile SOD-123F package and supports a maximum continuous forward current of 1 ampere with a peak reverse voltage rating of 20 volts.

This diode offers a low forward voltage drop of 500 mV which reduces power dissipation and increases energy efficiency in rectification circuits. Its ultra-small form factor (2.7mm length x 1.7mm width x 1.2mm height) makes it ideal for space-constrained electronic assemblies.

The diode is designed for high reliability over a wide operating temperature range from -65°C to 150°C, making it suitable for demanding industrial environments, automotive electronics, and power management applications. The peak non-repetitive forward surge current of 9 amperes provides robustness against transient surges.

With low leakage current of 200 μA and negligible switching losses, the PMEG2010EH,115 diode is optimized for efficient power rectification and signal integrity in various semiconductor applications.

The diode supports a maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage is rated at 20 volts. Forward voltage drop is low at 500 millivolts for efficient switching. Wide operational temperature range from -65°C to 150°C.

Designed with a compact SOD-123F package measuring 2.7 x 1.7 x 1.2 mm. Peak surge current capability of 9 amperes for transient protection. Manufactured to industrial quality standards. Low leakage current minimizes power losses.

Ideal for electronic circuit boards in industrial, power, and automotive sectors. Originates from China, ensuring global manufacturing standards compliance.

This diode is commonly used in power supplies, DC-DC converters, and switching applications that require a reliable Schottky rectifier for efficient energy conversion and thermal performance. The compact package and technical design facilitate integration into modern electronic assemblies.
