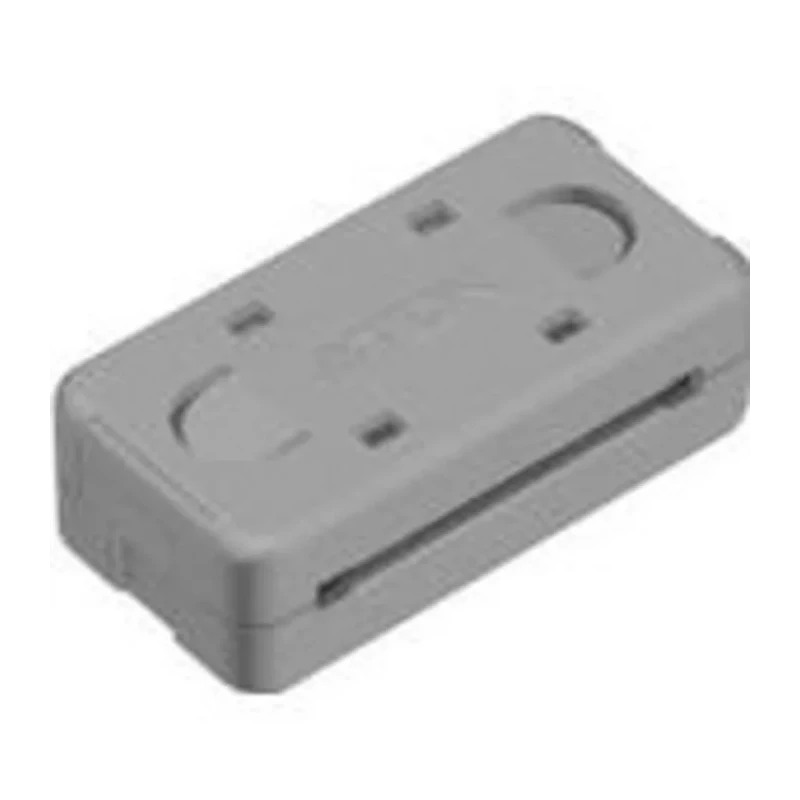

TDK Openable Diameter 26 mm Ferrite Sleeve Bead for EMC Absorption ZCAT3618-2630D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT3618-2630D |
| Series | ZCAT |
| Aperture diameter | 26mm |
| Sub Type | Bead |
| External Width | 33.5mm |
| External Depth | 11.5mm |
| Standards/Approvals | RoHS, REACH |
| Impedance at 100 MHz | 150Ω |
| Impedance at 25 MHz | 30Ω |
| Number of Apertures | 1 |
| TDK Openable, Diameter 26 mm Ferrite Sleeve, Apertures | 1 11.5 mm 33.5 mm, For EMC Absorption |
Key Features
- This openable ferrite sleeve features a single aperture with dimensions 11.5 mm depth and 33.5 mm width.
- Offers impedance levels of 30Ω at 25 MHz, 150Ω at 100 MHz, and 30Ω at 500 MHz for effective noise suppression.
- Constructed from high-quality 30 material ensuring durability and consistent performance.
- Applicable for reducing electromagnetic interference in cables for various electronic devices and systems.
- Complies with RoHS and REACH standards to meet environmental and safety requirements.
- Manufactured in Japan, ensuring high-quality engineering and reliability.
- Snap-fixing design prevents slippage and ensures stable installation on connectors and cables.
- Large core size prevents magnetic saturation during large signal surges.
Product Description
TDK ZCAT3618-2630D is an openable ferrite sleeve bead engineered with a 26 mm aperture diameter, designed to provide excellent electromagnetic compatibility (EMC) absorption. The product features a snap-fixing design enabling easy installation on cables already fitted with connectors, preventing slippage and ensuring firm attachment.
This ferrite sleeve offers impedance values of 30Ω at 25 MHz, 150Ω at 100 MHz, and 30Ω at 500 MHz, making it highly effective at attenuating high-frequency electromagnetic noise without impacting signal quality. The sleeve is made from 30 material, providing robust mechanical strength and long-lasting performance.
Ideal for a variety of applications including personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers, facsimiles, and other electronic equipment, this ferrite sleeve effectively reduces electromagnetic interference on data and power cables.
The split ferrite design with a special snap lock mechanism prevents accidental opening and protects the core halves from damage. Fixing by glue or cable tie is optional depending on application needs.
This openable design ensures simple and convenient cable installation and maintenance. Large core size prevents saturation during large signal surges, providing consistent noise suppression performance. Provides excellent absorption of common mode electromagnetic interference.
Compatible with a variety of cable diameters owing to the flexible split ring design. Compliant to RoHS and REACH environmental regulations.
Manufactured in Japan, this ferrite sleeve offers reliability and precision quality expected for demanding industrial and commercial electronic applications. It is suitable for use in industrial controls, medical engineering devices, office machinery, and other environments requiring EMI mitigation.
Explore more electronics components and Ferrite Sleeve products in EnvMart’s Electronics Components category for advanced EMI filter solutions from leading brands like TDK.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite sleeve offers impedance levels of 30Ω at 25 MHz, 150Ω at 100 MHz, and 30Ω at 500 MHz, making it effective for noise suppression across these frequencies.
This model has an aperture diameter of 26 mm, an external width of 33.5 mm, and an external depth of 11.5 mm.
It is constructed from 30 material, which provides robust mechanical strength and consistent performance.
The snap-fixing design allows for easy installation on cables already fitted with connectors, preventing slippage and ensuring a firm attachment.
It complies with RoHS and REACH standards, ensuring it meets environmental and safety requirements.
It is applicable for reducing electromagnetic interference in various electronic devices, including personal computers, monitors, audio devices, and medical engineering devices.
Yes, the flexible split ring design allows it to be compatible with a variety of cable diameters.
The split ferrite design includes a special snap lock mechanism that prevents accidental opening and protects the core halves from damage.
This ferrite sleeve is manufactured in Japan, ensuring high-quality engineering and reliability.
The large core size prevents magnetic saturation during large signal surges, providing consistent noise suppression performance.
Fixing by glue or cable tie is optional depending on application needs, allowing flexibility in installation methods.
It effectively attenuates high-frequency electromagnetic noise without impacting signal quality, making it suitable for sensitive electronic applications.
