Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-05-2061

Free Delivery in India | Lowest Global Shipping Charges

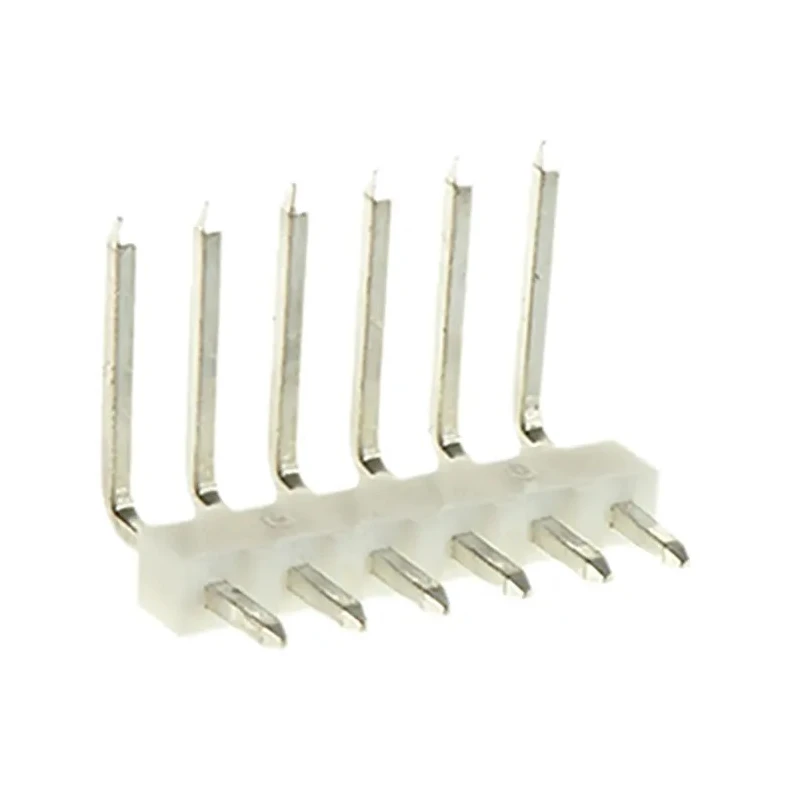

Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-05-2061

Name: Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-05-2061
Brand: Molex
SKU: 120572



Category Electronic Components Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.15mm
Mating Pin Length	2.54mm

Key Features

6 male contacts provide reliable electrical connections.
2.54 mm pitch supports standard PCB layouts.
Right angle orientation for space-saving configurations.
Constructed with durable nylon housing and brass contacts.
Tin plating ensures excellent corrosion resistance.
Rated for 4A current and 250V voltage capacity.
Suitable operating temperature range from -40°C to 105°C.
Through hole mount type for secure PCB installation.

Product Description

Molex 22-05-2061 KK 254 Series Right Angle Through Hole Pin Header is designed for board-to-board and wire-to-board electrical connector applications. This pin header features 6 male contacts arranged in a single row with a 2.54 mm pitch and a right angle orientation, facilitating compact interconnections on printed circuit boards.

The housing is constructed from white nylon with UL 94V-0 flame retardant rating, offering durability and safety standards compliance. Brass contacts are tin plated to resist corrosion and ensure stable electrical conductivity.

Rated to carry 4 amps of current and 250 volts, this component is suitable for a wide range of electronic equipment operating within a temperature range from -40°C to 105°C. The tail pins measure 3.15 mm in length, while mating pins are 2.54 mm, compatible with standard PCB assembly processes involving through hole mounting and solder termination.

The unshrouded configuration permits easy access for stacking end to end or side to side, enhancing flexibility in board design. These headers are widely used in industrial, communication, electronic manufacturing, and laboratory instrumentation PCB assemblies where reliable connector performance is essential.

6 male contacts provide reliable electrical connections. 2.54 mm pitch supports standard PCB layouts. Right angle orientation for space-efficient board design. Nylon housing with UL 94V-0 flame retardant rating. Tin plated brass contacts for corrosion resistance.

Rated for 4A current and 250V voltage. Operating temperature range from -40°C to 105°C. Through hole mount type with solder termination. Tail pin length: 3.15 mm; mating pin length: 2.54 mm. Unshrouded design allows stacking.

This Molex pin header is ideal for applications in industrial electronics, communication devices, laboratory equipment, and manufacturing assemblies requiring dependable board connectors. Browse the Electronics Components category on EnvMart for a wide selection of connectors and headers.
