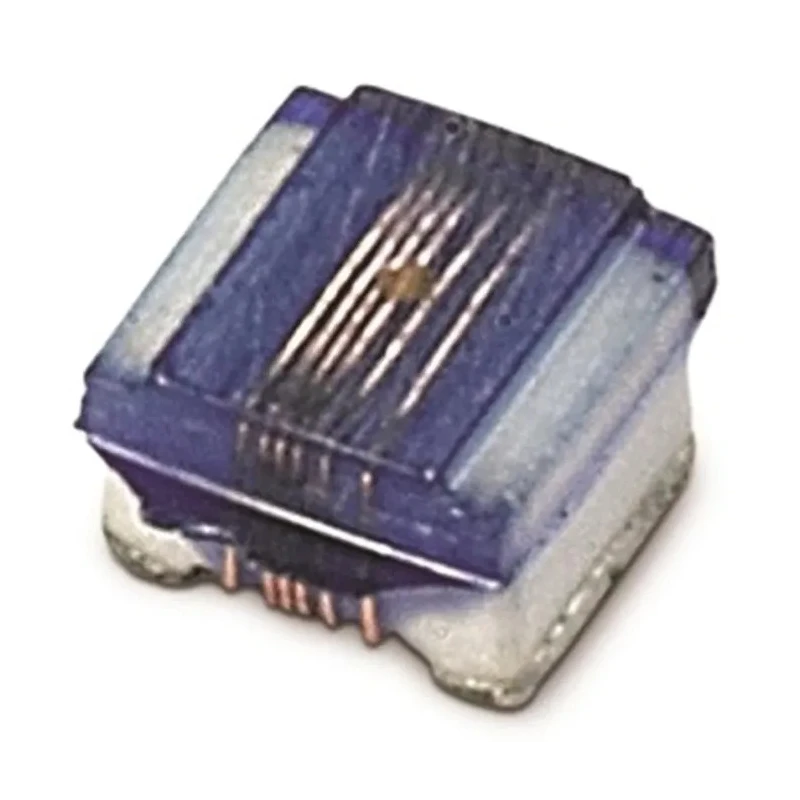

Wurth Elektronik WE-KI Series 0603 Unshielded Wirewound Surface Mount Ceramic Core Inductor 22 nH ±5% 700 mA 3 744761122A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.05mm |
| Length | 1.6mm |
| Model | 744761122A |
| Depth | 1.05mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 22nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 700mA |
| Pin Count | 2 |
| Maximum DC Resistance | 220mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3GHz |
| Minimum Quality Factor | 38 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 0603 surface mount package with 1.6 mm length.
- Wirewound construction ensures high quality and reliability.
- Ceramic core provides thermal stability and low loss.
- Maximum self-resonant frequency of 3 GHz suitable for high frequency applications.
- Maximum DC resistance of 220 mΩ to minimize power loss.
- Automotive standard AEC-Q200 certified for reliable automotive use.
- Operating temperature range from -40°C to 125°C for harsh environments.
- Inductance tolerance of ±5% for precision circuit design.
Product Description
Wurth Elektronik 744761122A WE-KI Series 0603 Unshielded Wirewound Ceramic Surface Mount Inductor features a ceramic core and wirewound construction, delivering an inductance of 22 nH with a tolerance of ±5%. Designed for compact 0603 package applications, this inductor measures 1.6 mm in length, 1.05 mm in height and depth, supporting up to 700 mA maximum DC current.
This inductor offers a maximum self-resonant frequency of 3 GHz, making it suitable for high-frequency RF and wireless communication designs including Bluetooth, WLAN, and RF transceivers. Its wirewound construction ensures excellent quality factor and thermal stability, complemented by a low maximum DC resistance of 220 mΩ to reduce power dissipation.
The device meets automotive industry standard AEC-Q200, ensuring reliability and robustness in automotive and industrial applications. It operates across a wide temperature range from -40°C to 125°C and carries multiple standards compliances including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, confirming its environmental and safety standards.
The surface mount termination style with tape and reel packaging facilitates efficient reflow soldering and automated assembly lines, ideal for volume production. Compact 0603 surface mount wirewound inductor with ceramic core.
22 nH inductance with ±5% tolerance for precision tuning. High maximum self-resonant frequency of 3 GHz for RF applications. 700 mA maximum DC current carrying capability. Automotive grade AEC-Q200 qualification for demanding environments.
Wide operating temperature range of -40°C to 125°C. Low maximum DC resistance of 220 mΩ reduces losses. Compliant with IEC, JEDEC, REACH, and RoHS standards. Tape and reel packaging supports automated manufacturing. Ideal for wireless LAN, Bluetooth, and RF communication circuits.
This Wurth Elektronik WE-KI inductor series is engineered for precision electronic circuitry in industrial, automotive, communications, and consumer electronics sectors. Its robust construction and compliance with automotive standards make it suitable for use in harsh and high-frequency environments. For a wide selection of Surface Mount Inductors and other electronic components, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 22 nH with a tolerance of ±5%.
It has a maximum DC current rating of 700 mA.
The maximum self-resonant frequency is 3 GHz, making it suitable for high-frequency applications.
This inductor has dimensions of 1.6 mm in length, 1.05 mm in height, and 1.05 mm in depth.
The operating temperature range is from -40°C to 125°C.
It features a wirewound construction with a ceramic core for thermal stability and low loss.
The inductor is packaged in tape and reel format, facilitating automated assembly.
It complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
The maximum DC resistance is 220 mΩ, which helps minimize power loss.
It meets several standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS.
This inductor is suitable for high-frequency RF applications, including Bluetooth, WLAN, and RF transceivers.
The minimum quality factor is 38, indicating good performance in circuits.
