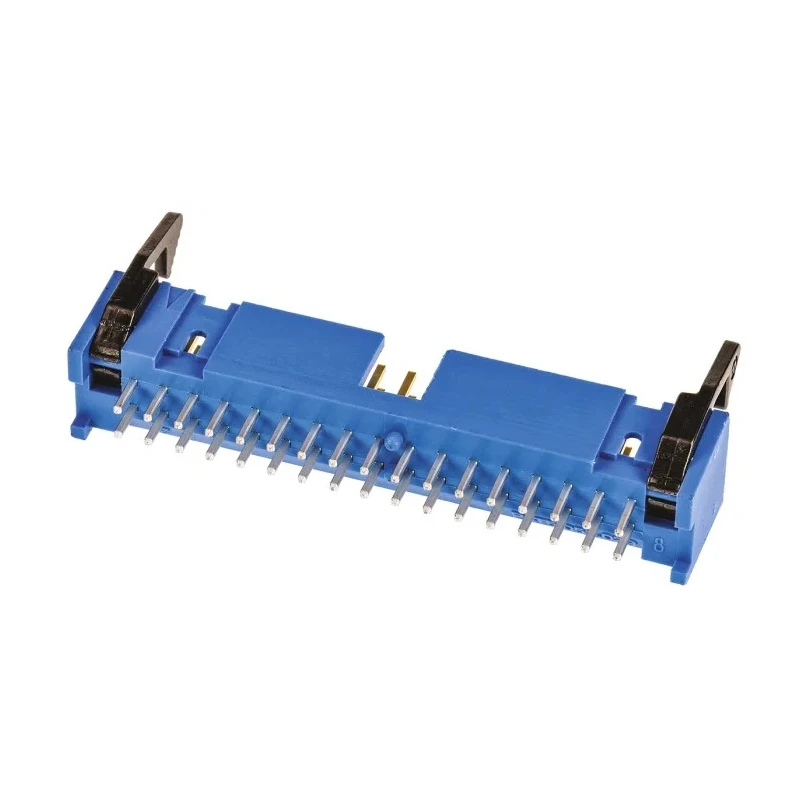

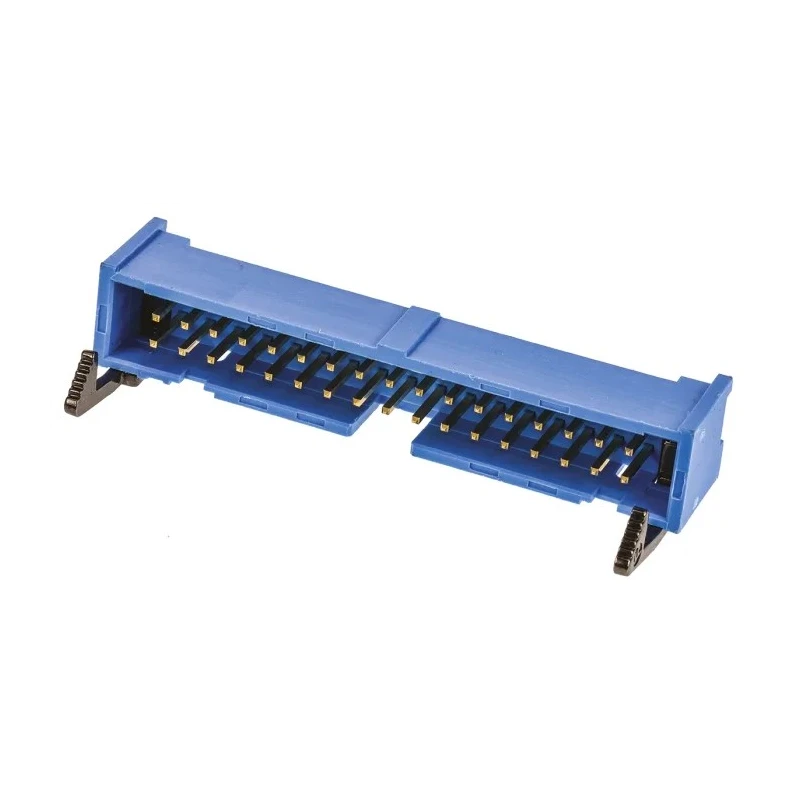

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 34 Contact, 2.54 mm Pitch, 2 Row, Shrouded 3-1761608-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Low profile AMP-LATCH Ribbon Cable Header with military and center polarization.
- Ejector latches ensure a secure connection and easy removal.
- Designed for wire-to-board connector system with through hole mount type.
- Contact material is phosphor bronze with gold plating for durability.
- Operating voltage up to 250V and current rating of 1A.
- Suitable for industrial, medical, networking, and business equipment applications.
- Minimum operating temperature of -55°C and maximum of 105°C.
- Features two rows with 34 contacts for reliable board connections.
Product Description
TE Connectivity 3-1761608-1 AMP-LATCH Series Straight Through Hole PCB Header is an advanced wire-to-board connector designed for secure and reliable connections in various electronic applications. With 34 contacts arranged in 2 rows and a 2.54 mm pitch, this shrouded connector offers robust performance and high operational stability.
Constructed from polybutylene terephthalate housing material with phosphor bronze contacts plated in gold, this PCB header supports a current rating of 1A and a voltage of up to 250V. It features military and center polarization with ejector latches that provide both secure mating and easy disconnection from mating IDC ribbon cable receptacle connectors.
This PCB header operates reliably in a temperature range from -55°C to 105°C, making it suited for demanding industrial, medical, networking, business equipment, storage, industrial control, appliance, and electrical testing applications.
The straight orientation and through-hole mount type facilitate easy integration into circuit boards, offering durability and long service life. The shrouded design helps ensure correct insertion and protection of contacts against accidental damage.
Low profile with military and center polarization ensures proper cable alignment. Ejector latches enable secure connection and quick removal. Gold-plated phosphor bronze contacts elevate conductivity and corrosion resistance.
Durable polybutylene terephthalate housing withstands harsh operating environments. Rated for 1A current and 250V voltage for versatile power applications. Wide operating temperature range -55°C to 105°C suitable for industrial use.
Shrouded, 2-row design minimizes mis-mating and protects contacts. Wire-to-board connection system with through-hole mounting. Ideal for use in industrial controls, medical equipment, networking, and business computers.
TE Connectivity's AMP-LATCH Series connectors provide reliable and efficient connections essential for modern electronic assemblies. This model 3-1761608-1 is engineered to meet rigorous standards for performance and durability. Explore the Electronics Components category at EnvMart for additional PCB headers and connector solutions.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A, making it suitable for various power applications.
It can handle a maximum voltage of 250V, ensuring compatibility with a range of electronic systems.
The contacts are arranged with a pitch size of 2.54 mm, which is standard for many PCB applications.
The housing is made from polybutylene terephthalate, and the contacts are made of phosphor bronze with gold plating.
It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding environments.
This model features a total of 34 contacts, arranged in 2 rows for effective connectivity.
It utilizes a through-hole mount type, which facilitates easy integration into circuit boards.
This model is shrouded, which helps prevent accidental contact and ensures proper alignment during insertion.
It supports a wire-to-board connector system, making it versatile for various applications.
It includes ejector latches for secure mating and easy disconnection, along with military and center polarization for proper alignment.
The contacts in this PCB header are male, designed for mating with female connectors.
This model is suitable for industrial, medical, networking, and business equipment applications due to its robust design and specifications.
