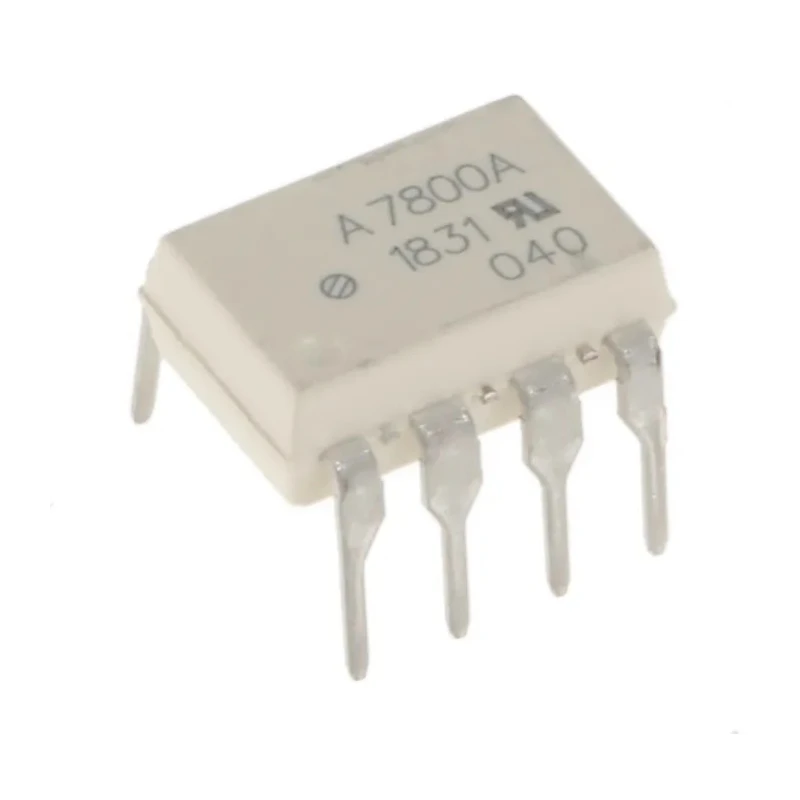

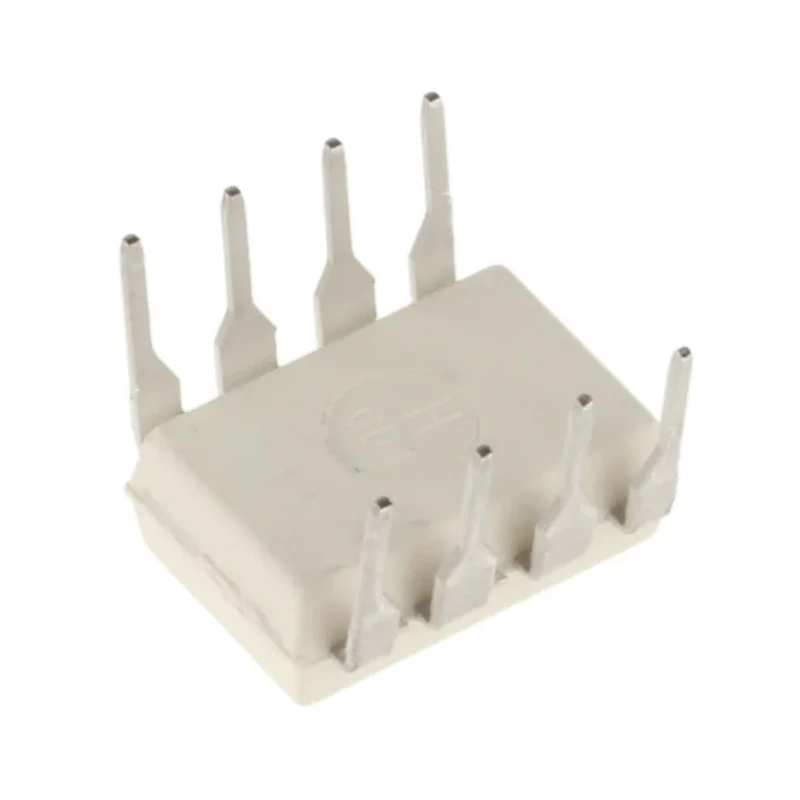

Broadcom Isolation Amplifier 8-Pin DIP-8 4.5-5.5V 1 Channel HCPL-7800A-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 1.78mm |
| Length | 9.8mm |
| Model | HCPL-7800A-000E |
| Mount Type | Surface, Through Hole |
| Series | HCPL-7800A |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | UL 1577, IEC/EN/DIN EN 60747-5-2, CSA |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 0.3 mV |
| CMRR - Common Mode Rejection Ratio | 76dB |
Key Features
- Supports single channel operation ensuring reliable signal isolation.
- Compatible with surface and through-hole mounting for flexible PCB design.
- Common mode rejection ratio (CMRR) of 76dB for superior noise immunity.
- Wide operating temperature range from -40°C to 100°C suitable for harsh environments.
- Compact dimensions with 9.8mm length and 1.78mm height for space-saving applications.
- Input offset voltage of 0.3 mV enhances measurement accuracy.
- Complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA safety standards.
- Ideal for industrial isolation, power inverters, motor drives, and general signal isolation.
Product Description
Broadcom HCPL-7800A-000E is a high-performance isolation amplifier featuring a compact 8-pin DIP package. Operating between 4.5V minimum and 5.5V maximum supply voltages, this single channel device provides precise electrical isolation for sensitive signal measurement applications.
The amplifier boasts a common mode rejection ratio (CMRR) of 76dB, ensuring effective noise suppression in electrically noisy industrial and commercial environments. Its input offset voltage of just 0.3 mV guarantees accurate signal amplification, critical in current and voltage sensing.
The device supports both surface mount and through-hole PCB assembly techniques, offering design flexibility. With a wide operating temperature range from -40°C to 100°C, it is suitable for demanding conditions commonly encountered in industrial automation, power inverters, and motor drive control systems.
Constructed in compliance with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA standards, the HCPL-7800A-000E provides built-in safety insulation up to 3750 Vrms, meeting stringent industry safety requirements.
Single channel isolation amplifier optimized for accurate current and voltage measurements. 8-pin DIP package measuring 9.8 mm length by 1.78 mm height for compact installations. High noise immunity through common mode rejection ratio of 76 dB.
Wide temperature operation from -40°C to 100°C for industrial reliability. Flexible mounting options with surface and through-hole compatibility. Reliable compliance with major international safety standards.
This isolation amplifier is widely used in industrial power converters, motor drives, signal isolation circuits, and other applications demanding precise and safe electrical isolation.
Explore our full catalog of Isolation Amplifiers and similar high-quality electronic components on EnvMart to find the perfect solution for your industrial or commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4.5V to 5.5V.
It features a common mode rejection ratio of 76dB, providing effective noise suppression.
The amplifier has a length of 9.8mm and a height of 1.78mm, making it suitable for compact installations.
The input offset voltage is 0.3 mV, which enhances measurement accuracy.
It operates effectively within a temperature range of -40°C to 100°C.
This unit supports both surface mount and through-hole mounting techniques, providing design flexibility.
It is a single channel isolation amplifier, optimized for precise signal isolation.
It complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA safety standards.
It is ideal for industrial isolation, power inverters, motor drives, and general signal isolation applications.
The amplifier comes in an 8-pin DIP package, suitable for various PCB designs.
The 76dB CMRR indicates high noise immunity, making it effective in electrically noisy environments.
The country of origin for this isolation amplifier is India.
