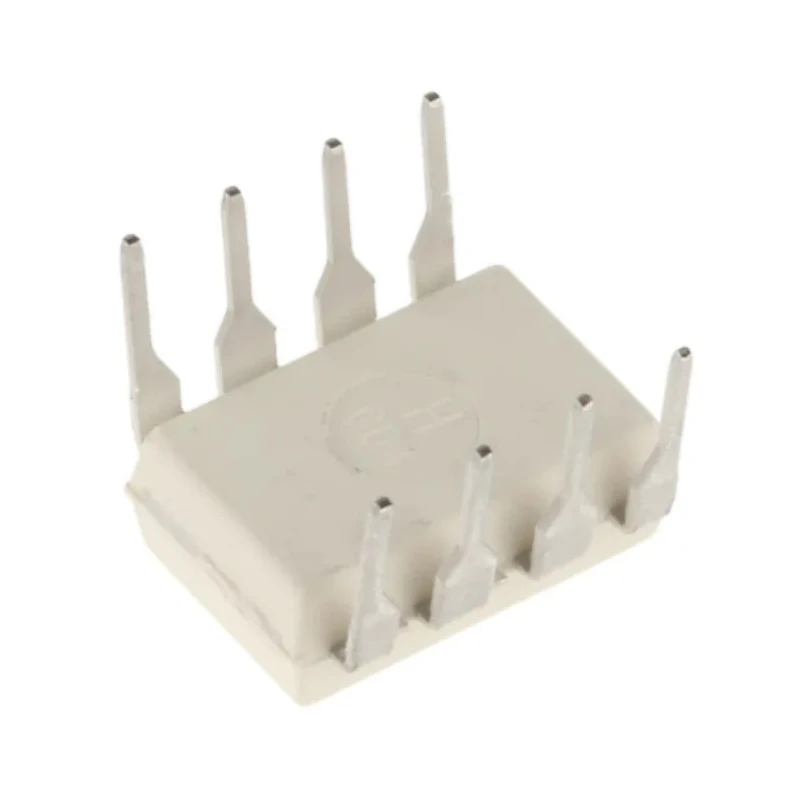

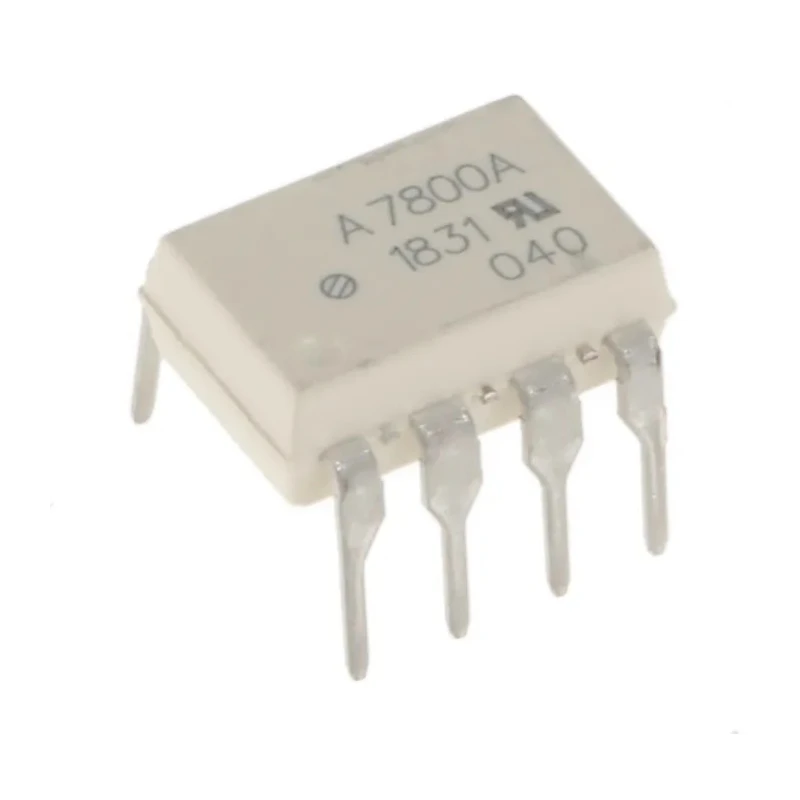

Broadcom Isolation Amplifier 8-Pin DIP-8 5.5V Surface Through Hole HCPL-7800A-000E

Broadcom HCPL-7800A-000E is a high-performance isolation amplifier housed in an 8-pin DIP-8 package supporting both surface mount and through hole mount types. It operates with supply voltages between 4.5V minimum and 5.5V maximum. The single-channel device is engineered for industrial environments requiring reliable isolation and accurate signal transmission.

This isolation amplifier features a common mode rejection ratio (CMRR) of 76dB which helps maintain signal fidelity in noisy environments. It also exhibits a low input offset voltage of 0.3 mV, enhancing measurement precision. With an operating temperature range from -40°C to 100°C, it is suitable for harsh environmental conditions.

The HCPL-7800A-000E provides 3750Vrms of isolation voltage, meeting strict safety and insulation standards including UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA certification guidelines. Its compact size, with a length of 9.8mm and height of 1.78mm, allows for easy integration into tight PCB layouts.

This product is ideal for current and voltage sensing applications in industrial automation, motor control, power inverters, and other electronic isolation circuits where high accuracy and safety are critical. It effectively isolates high voltages while ensuring minimal signal distortion.

Broadcom's HCPL-7800A series isolation amplifiers offer a robust alternative to Hall Effect isolation sensors, providing precise phase current and bus voltage sensing using sigma-delta modulator technology. This enables use in power converters, industrial motor drives, and voltage monitoring systems.

Offers a common mode rejection ratio (CMRR) of 76dB ensuring signal integrity. Operates reliably over a temperature range from -40°C to 100°C. Includes one channel in a compact DIP-8 through hole and surface mount package.

Input offset voltage is low at 0.3 mV for precise isolation amplification. Designed to provide 3750Vrms isolation voltage for safety in industrial circuits. Complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA standards for insulation and reliability.

Measures 9.8mm in length and 1.78mm in height, suitable for space-constrained PCB designs. Suitable for current and voltage sensing in motor drives, power inverters, and industrial isolation circuits.

Choose the Broadcom HCPL-7800A-000E isolation amplifier for precision industrial signal isolation and amplification. Explore more electronic Isolation Amplifiers and semiconductors at EnvMart for your project's needs.
