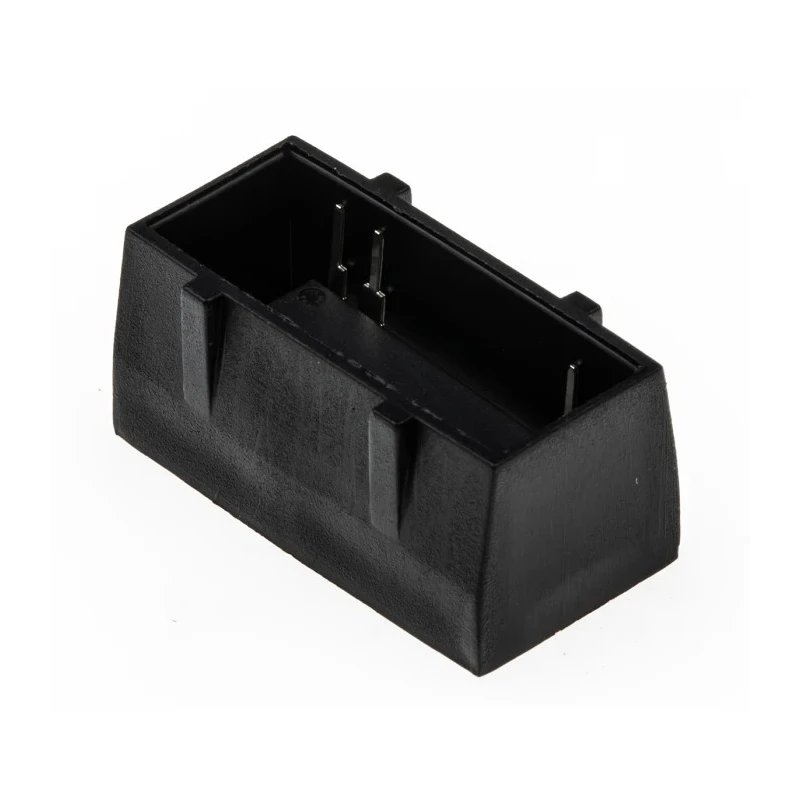

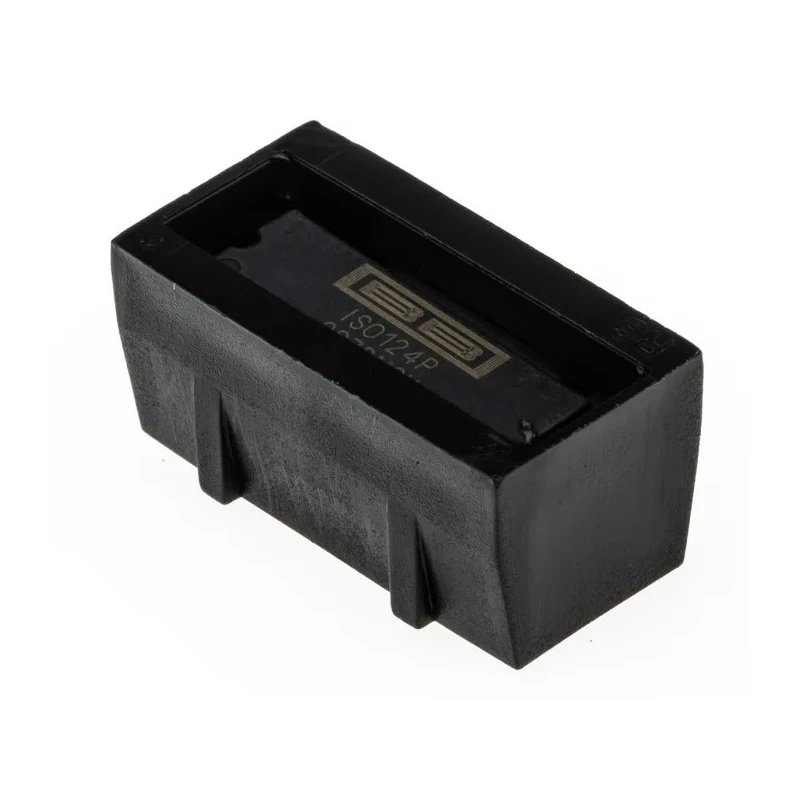

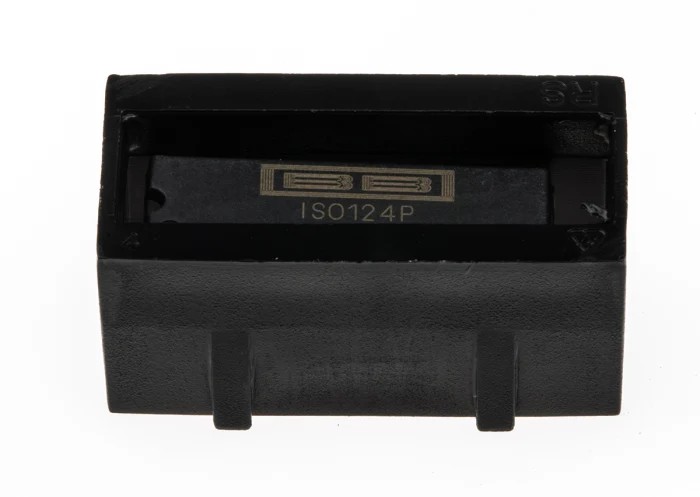

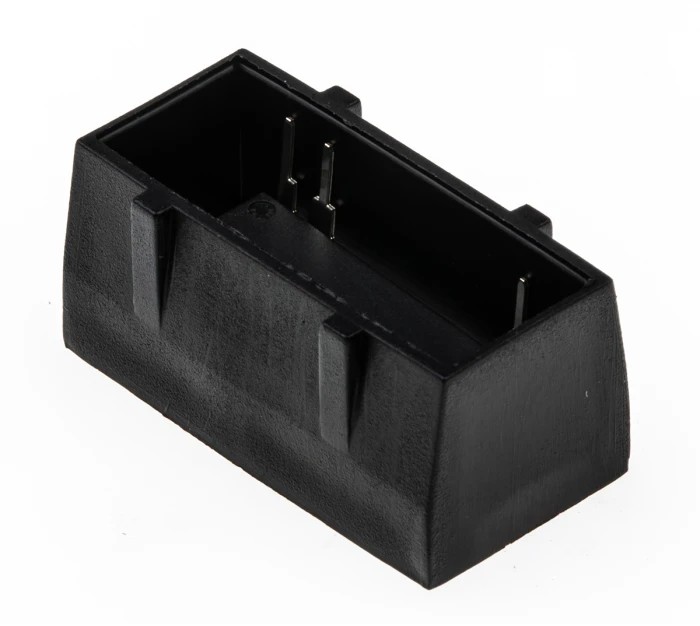

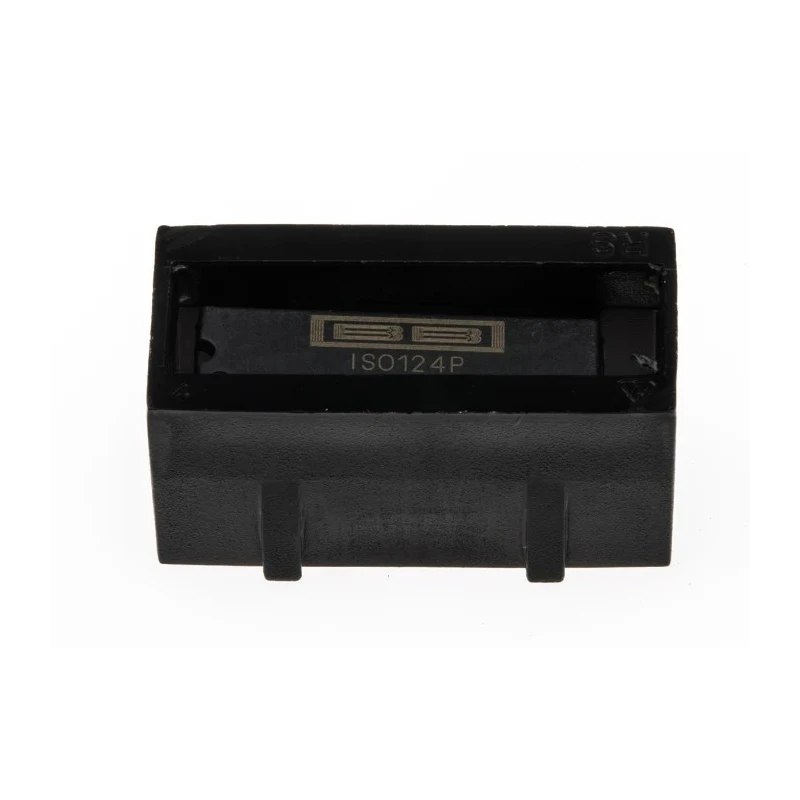

Texas Instruments Isolation Amplifier, Single Channel, 8-Pin PDIP, 18 V Supply, 1500 V Isolation Voltage ISO124P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.94mm |
| Length | 20.01mm |
| Model | ISO124P |
| Width | 6.61mm |
| Mount Type | Surface |
| Series | ISO124 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Isolation Voltage | 1500V |
| Minimum Supply Voltage | -18V |
Key Features
- Designed for single channel isolation applications with 1500 V isolation voltage.
- Operates with a minimum supply of -18 V and maximum of 18 V ensuring wide voltage compatibility.
- Utilizes an 8-pin PDIP package suitable for surface mount configurations.
- Designed to operate reliably from -25°C to 85°C ambient temperature range.
- Compact dimensions with length 20.01 mm, width 6.61 mm, height 3.94 mm.
- Complies with RoHS standards ensuring environmental safety.
- High voltage breakdown and analogue isolator design for industrial and electronics applications.
Product Description
Texas Instruments ISO124P is a high-precision Isolation Amplifier that provides excellent signal isolation and high-voltage breakdown capability. It is designed for applications requiring single channel isolation with a robust 1500 V isolation voltage rating.
This amplifier operates with a supply voltage range from -18 V to 18 V, housed in an 8-pin PDIP package, making it suitable for various PCB mounting scenarios. With an operating temperature range from -25°C to 85°C, it ensures reliable performance in industrial, laboratory, and electronic equipment environments.
The device features compact physical dimensions measuring 20.01 mm in length, 6.61 mm in width, and 3.94 mm in height, designed to fit in tight enclosures efficiently. It meets RoHS compliance, making it environmentally friendly for use in modern electronic designs.
Typical applications include industrial control systems, isolated signal transmission in instrumentation, power and connector systems, and electronic circuit protection where signal integrity and electrical isolation are critical.
Designed for single channel isolation applications with 1500 V isolation voltage. Operates within a broad voltage range of -18 V to 18 V supply for flexible deployment. Compact 8-pin PDIP package optimized for surface mount technology.
Wide operating temperature range (-25°C to 85°C) suitable for harsh industrial environments. RoHS-compliant device ensuring compliance with environmental regulations. High-voltage breakdown capability for secure analog signal isolation.
Ideal for use in industrial, laboratory, and electronics manufacturing applications.
Choose Texas Instruments ISO124P Isolation Amplifier for dependable and precise Isolation Amplifier solutions. Explore more high-quality semiconductor products from Texas Instruments and related components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ISO124P has an isolation voltage of 1500 V, providing robust signal isolation for various applications.
This model operates with a supply voltage range from -18 V to 18 V, allowing for flexible deployment in different systems.
The amplifier measures 20.01 mm in length, 6.61 mm in width, and 3.94 mm in height, making it compact for various mounting scenarios.
It operates reliably within a temperature range of -25°C to 85°C, suitable for harsh industrial environments.
This isolation amplifier is housed in an 8-pin PDIP package, which is optimized for surface mount technology.
Yes, the ISO124P complies with RoHS standards, ensuring it meets environmental safety regulations.
This model supports a single channel, making it suitable for applications requiring isolated signal transmission.
Typical applications include industrial control systems, isolated signal transmission in instrumentation, and electronic circuit protection.
The maximum operating temperature for the ISO124P is 85°C, allowing it to function in elevated thermal conditions.
The minimum supply voltage for this model is -18 V, which supports a wide range of operating conditions.
The ISO124P is manufactured in India, ensuring compliance with international standards.
This model uses a surface mount type, making it suitable for various PCB designs and configurations.
