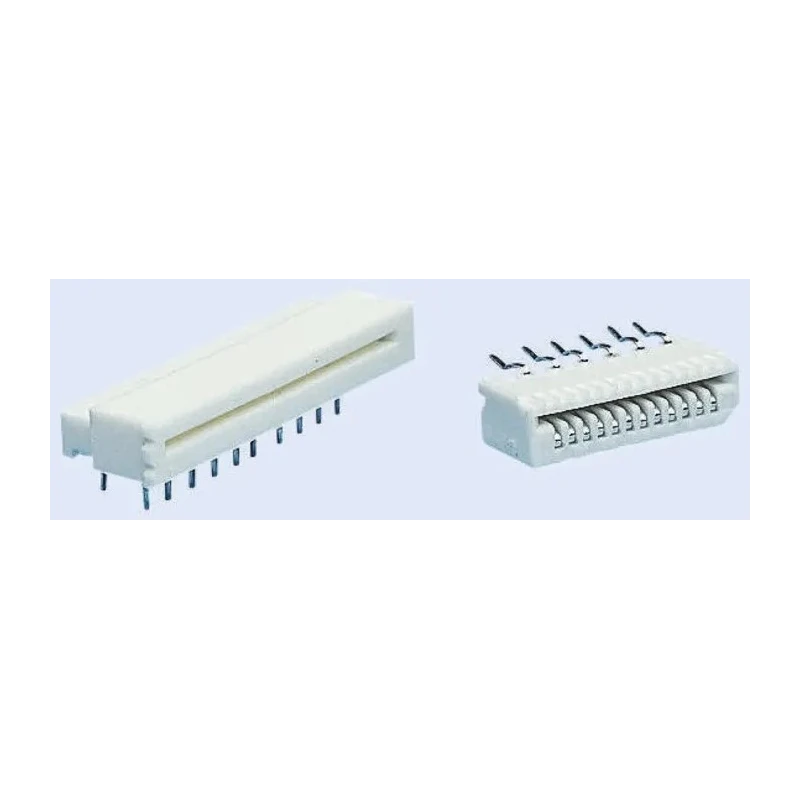

Molex FPC Connector 1.25 mm Pitch 20 Way Right Angle Female Through Hole Solder 39-53-2204
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Constructed with phosphor bronze contact material and tin bismuth over nickel plating.
- Features a zero insertion force (ZIF) slide type actuator for secure FPC connection.
- Operates reliably between -20°C and 80°C with a voltage rating of 200V and current rating of 1A.
- Compact, space-saving right angle design ideal for tight packaging applications.
- Includes locking mechanism and staggered solder tails for robust mounting.
- Housing material is durable polybutylene terephthalate ensuring mechanical stability.
- Single row, 20 contacts female connector suited for automotive and electronic devices.
- Manufactured in Japan ensuring high quality standards.
Product Description
Molex 39-53-2204 FPC Connector is a 1.25 mm pitch zero insertion force (ZIF) female connector with 20 contacts and a right angle orientation. It is designed for through hole mounting using solder termination, providing reliable electrical connections in compact spaces.
This connector features a phosphor bronze contact material with tin bismuth over nickel plating to ensure excellent conductivity and corrosion resistance. The slide type actuator reduces insertion force and wear through repeated usage, making it ideal in applications requiring connector longevity and ease of maintenance.
Operating voltage is rated at 200V with a current rating of 1 ampere. The connector reliably operates in temperatures ranging from -20°C to 80°C, suitable for demanding industrial and automotive environments. The housing is made of polybutylene terephthalate, offering robust mechanical strength and durability.
The 5597 series design incorporates a secure locking mechanism and staggered solder tails that enhance mounting stability on PCBs. Its right angle configuration optimizes space savings in tight packaging applications.
This FPC Connector is commonly used in electronic components manufacturing, automotive electronics, industrial controls, and device assembly where compact and secure flexible printed circuit connections are required.
Phosphor Bronze contacts with tin bismuth over nickel plating provide durability. Zero Insertion Force (ZIF) actuator enables easy and reliable connections. Single row, 20 contacts female configuration. Operating temperature range: -20°C to 80°C for industrial use.
Voltage rated for 200V with 1A current capacity. Polybutylene terephthalate housing ensures ruggedness. Right angle design for space-efficient PCB layouts. Locking mechanism ensures connector stability during operation.
Manufactured in Japan, this connector meets stringent quality requirements for electronic and automotive applications. The product is suitable for use in industrial manufacturing, electronics assembly, and automotive electronic systems requiring reliable FPC connections.
Explore more connectors and electronic components in EnvMart’s comprehensive catalog for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 1.25 mm.
The maximum operating temperature for this connector is 80°C.
The voltage rating of this connector is 200V.
This model features 20 contacts.
It uses solder termination for secure mounting.
The current rating for this connector is 1A.
The housing material is polybutylene terephthalate.
This connector has a right angle orientation.
The contacts are made of phosphor bronze with tin bismuth over nickel plating.
This model features a zero insertion force (ZIF) design.
This connector is manufactured in Japan.
This connector is suitable for automotive electronics, industrial controls, and electronic components manufacturing.
