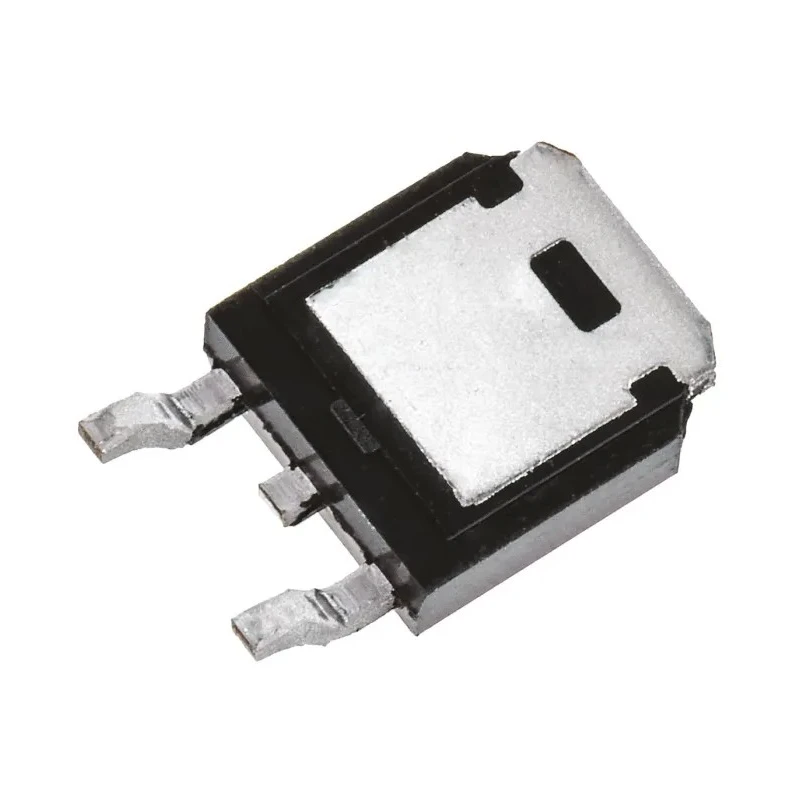

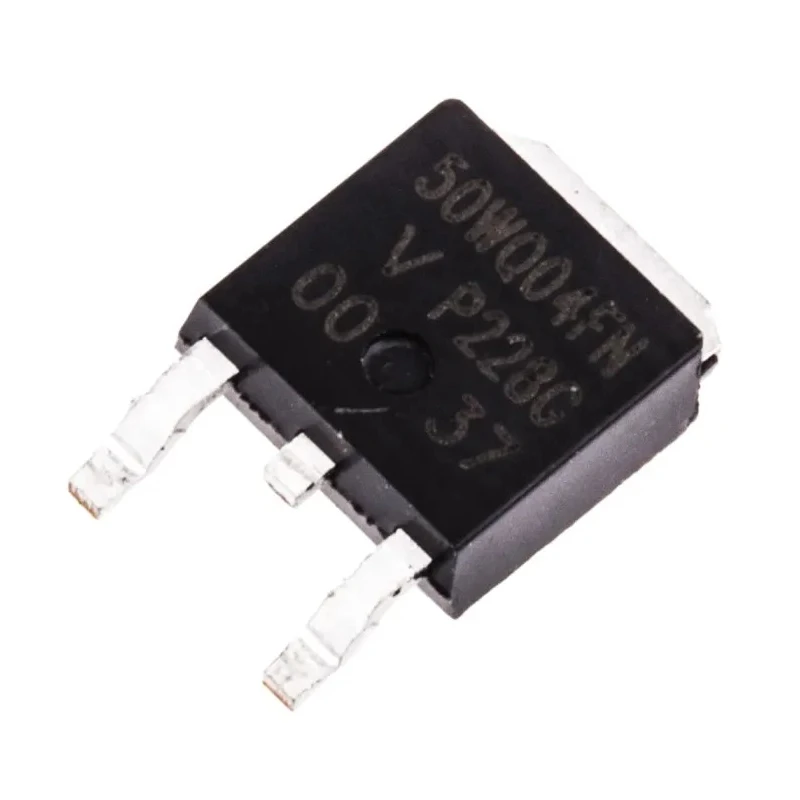

Vishay Surface Mount 40 V 5.5 A High-Performance Schottky Diode TO-252 Package VS-50WQ04FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-50WQ04FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5.5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 550A |
| Maximum Forward Voltage Vf | 440mV |
| Vishay 40V 5.5A, Schottky Diode, 3-Pin DPAK VS-50WQ04FN-M3Brand | Vishay |
Key Features
- This surface mount diode comes in a TO-252 package with a 3-pin DPAK configuration.
- Maximum forward voltage is 440 mV ensuring efficient low-loss switching.
- Suitable for applications with fast switching requirements and low power loss.
- Operates reliably from -40°C to a maximum temperature of 150°C.
- Peak non-repetitive forward surge current is rated at 550 A.
- Low peak reverse current of 3 mA supports stability in circuits.
- Designed without automotive standards and no special approvals.
- High performance diode ideal for industrial power conversion and electronic component integration.
Product Description
Vishay VS-50WQ04FN-M3 is a high-performance Schottky diode designed for surface mount applications. It delivers a maximum continuous forward current of 5.5 A and supports a peak reverse repetitive voltage of 40 V. Enclosed in a TO-252 (DPAK) 3-pin package, this diode exhibits an ultra-fast switching action with a low forward voltage drop of 440 mV, minimizing power dissipation in electronic circuits.
This diode is constructed to operate in a wide temperature range from -40°C minimum to 150°C maximum, making it suitable for demanding industrial environments. The device can withstand peak non-repetitive forward surge currents up to 550 A, ensuring robustness against transient events.
With compact dimensions measuring approximately 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height, the component is optimized for space-constrained PCB layouts. The low peak reverse current of 3 mA enhances circuit stability and efficiency.
Typical applications include use in power supplies, voltage clamping, and general diode rectification in industrial, laboratory, manufacturing, and electronic assembly environments where fast switching and low power loss are critical.
This surface mount Schottky diode features a TO-252 DPAK 3-pin package. Excellent low forward voltage of 440 mV reduces heat generation in circuits. Supports maximum continuous forward current of 5.5 A and voltage rating up to 40 V.
Operates efficiently over a broad temperature range from -40°C to 150°C. Designed for fast switching applications with high surge current tolerance of 550 A. Compact and reliable for integration in power electronic devices and assemblies.
Low peak reverse current of 3 mA enhances circuit performance. No automotive certification; suitable for standard commercial and industrial applications.
This Vishay Schottky diode is a reliable choice for engineers and designers seeking a compact, high-speed diode suitable for power rectification and switching applications in industrial and commercial electronics.
Explore Vishay products and other Schottky diode options under the Electronics & Electricals category at EnvMart to find components tailored to your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 5.5 A.
The maximum forward voltage drop is 440 mV, ensuring efficient low-loss switching.
It operates reliably in a temperature range from -40°C to 150°C.
The dimensions of the TO-252 package are approximately 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
The peak non-repetitive forward surge current is rated at 550 A.
This diode is designed for surface mounting.
Typical applications include power supplies, voltage clamping, and general diode rectification in industrial and electronic assembly environments.
The TO-252 package features a 3-pin configuration.
This diode is not designed with automotive standards and does not have special approvals for automotive use.
The country of origin for this Schottky diode is India.
