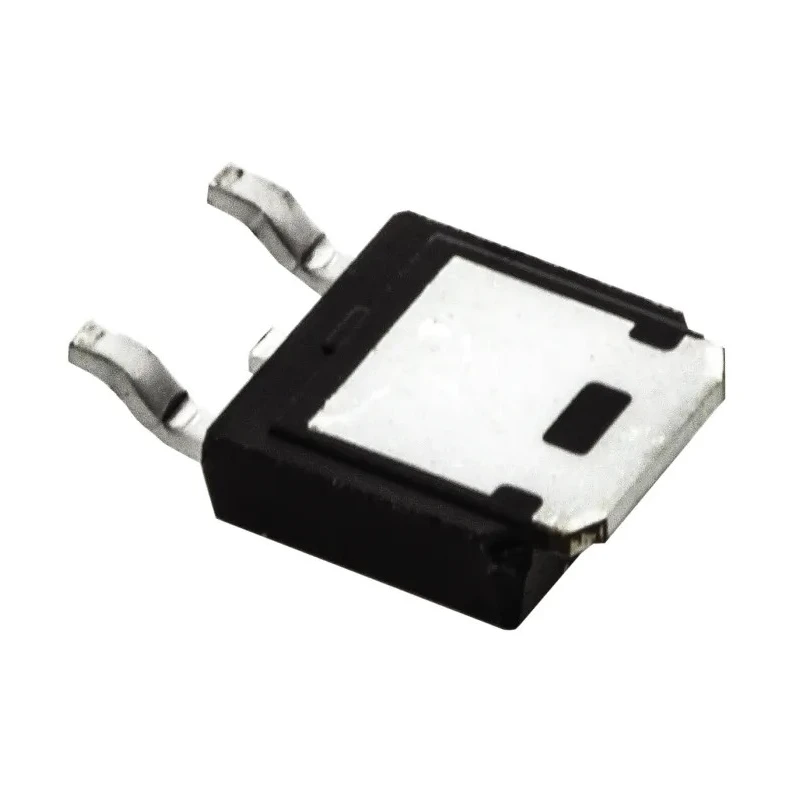

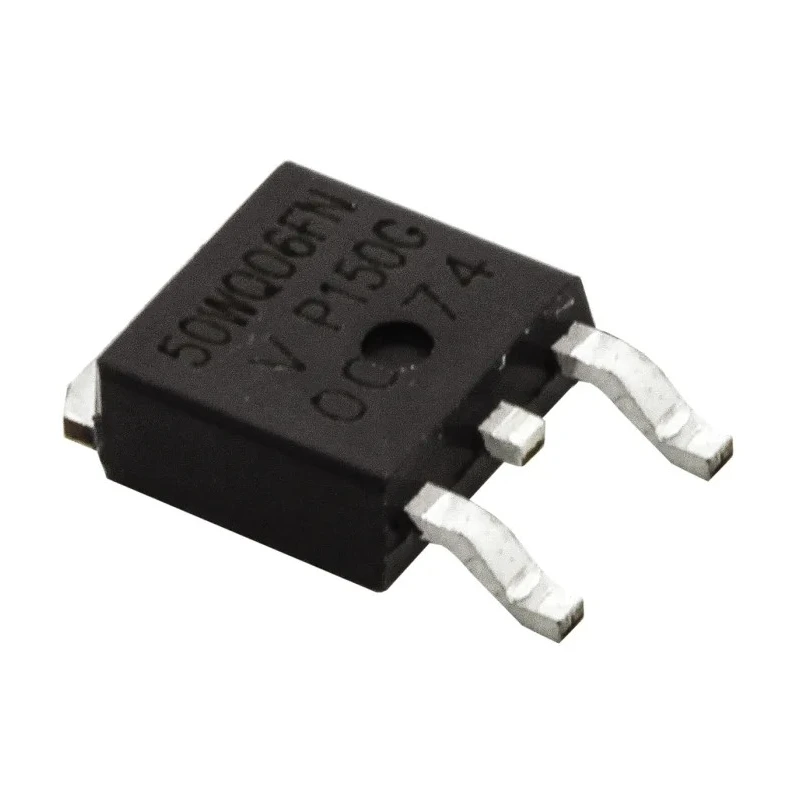

Vishay High-Performance 60 V 5.5 A Schottky Diode 3-Pin DPAK VS-50WQ06FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-50WQ06FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5.5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 570mV |
| Vishay 60V 5.5A, Schottky Diode, 3-Pin D-PAK 50WQ06FNBrand | Vishay |
Key Features
- This surface-mount diode comes in a TO-252 3-pin DPAK package, suitable for space-constrained circuit boards.
- It features a low maximum forward voltage drop of 570 mV, minimizing power losses during conduction.
- The diode supports a high peak non-repetitive forward surge current of 320 A for transient conditions.
- Operating temperature ranges from -40°C to 150°C ensure reliability in demanding environments.
- Peak reverse repetitive voltage rating of 60 V and peak reverse current of 3 mA support robust performance.
- Compact dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height allow easy integration in high-density PCBs.
- Designed for fast switching applications requiring low power dissipation and minimal reverse recovery time.
Product Description
Vishay VS-50WQ06FN-M3 high-performance Schottky diode is a surface-mount semiconductor device designed for power management and switching circuits. Featuring a maximum continuous forward current of 5.5 A and a peak reverse repetitive voltage of 60 V, this diode efficiently conducts current with minimal voltage drop and fast switching capability, making it ideal for industrial electronics, power supply modules, and automotive electronics.
This diode is housed in a compact TO-252 (DPAK) 3-pin package, measuring 6.73 mm in length and 6.22 mm in width, with a height of 2.39 mm. Its electrical characteristics include a maximum forward voltage of 570 mV and a high surge current tolerance of 320 A for short-term overloads. It operates reliably over a wide temperature range from -40°C up to 150°C, suitable for harsh operating conditions.
The Schottky diode's low forward voltage and rapid switching speed reduce power loss and improve efficiency in switching power supplies, DC-DC converters, and protective circuits. Its pin configuration and PCB footprint allow easy application in automated surface-mount assembly processes.
This Schottky diode features low forward voltage drop for energy-efficient operation. Designed to handle high peak surge currents for transient protection. Reliable operation across wide temperature range from -40°C to 150°C.
Compact TO-252 (DPAK) surface-mount package suitable for modern PCBs. Fast switching characteristics enable use in power electronics and automotive systems.
Vishay semiconductors are recognized globally for quality and reliability, supporting applications in industrial automation, consumer electronics, and automotive sectors. This diode is an excellent choice for designers seeking robust power rectification with low losses. Explore more Vishay components for enhanced electronic system performance on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-50WQ06FN-M3 Schottky diode is 5.5 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop for this diode is 570 mV.
The diode can handle a peak non-repetitive forward surge current of 320 A.
The dimensions of the TO-252 (DPAK) package are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
The operating temperature range for the Vishay VS-50WQ06FN-M3 is from -40°C to 150°C.
This model is classified as a Schottky diode.
The peak reverse current for this diode is 3 mA.
The Vishay VS-50WQ06FN-M3 diode has a 3-pin configuration.
This diode features a surface mount type design, suitable for modern PCB applications.
This diode is suitable for applications in power management and switching circuits, including industrial electronics and automotive systems.
The Vishay VS-50WQ06FN-M3 is manufactured in India.
