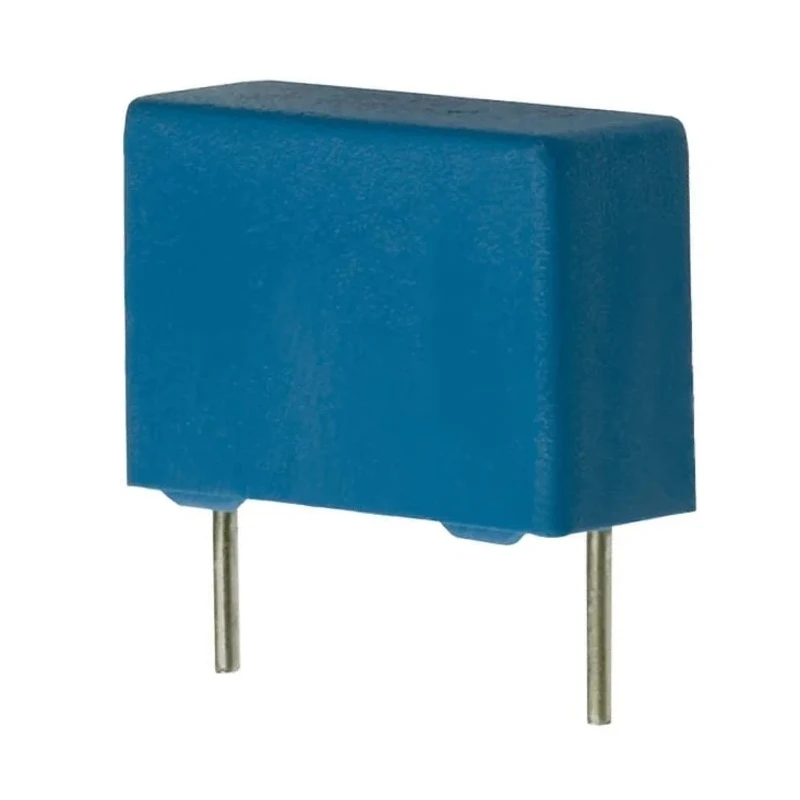

TDK Polypropylene Film Capacitor Through Hole 220nF 305V AC 305V DC B32922C3224M189
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 12.5mm |
| Length | 18mm |
| Model | B32922C3224M189 |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | B32922C |
| Maximum Operating Temperature | 110°C |
| Capacitance | 220nF |
| Pin Count | 2 |
| Rated AC Voltage | 305V ac |
| Rated DC Voltage | 305V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Suppression Class | X2 |
Key Features
- Capacitance rating of 220 nanofarads ensures stable electrical performance.
- Rated for 305 volts AC and DC for versatile applications.
- Through hole mount type with 15mm lead pitch for PCB integration.
- Maximum operating temperature of 110 degrees Celsius enables durability.
- X2 suppression class suitable for EMI suppression tasks.
- Lead diameter of 0.8mm supports reliable wiring connections.
- Polypropylene dielectric material improves self-healing and longevity.
- Manufactured in India ensuring quality and compliance.
Product Description
TDK B32922C3224M189 polypropylene film capacitor is a high-quality component designed for industrial and electronic applications requiring stable capacitance and high voltage ratings. This capacitor features a 220nF capacitance with ratings of 305V AC and 305V DC, making it suitable for suppression and filtration tasks in electrical circuits.
The through hole mounting type with a 15mm lead pitch facilitates straightforward assembly on printed circuit boards. Its compact form factor, measuring 18mm in length, 12.5mm in height, and 7mm in width, allows it to be used in densely packed electronic equipment.
Constructed using polypropylene dielectric material, this Film Capacitor exhibits excellent self-healing properties and high reliability under continuous operation. The 0.8mm lead diameter offers secure lead connections, enhancing durability during installation and use.
Certified to comply with international standards EN 60384-14:2014/A1:2016 and IEC 60384-14:2013/AMD1:2016, this capacitor conforms to rigorous quality and safety requirements. It operates reliably up to a maximum temperature of 110°C and belongs to suppression class X2, making it ideal for EMI suppression in power electronics, HVAC systems, manufacturing controls, and telecommunications.
220nF capacitance with 305V AC/DC voltage rating. Through hole mount with 15mm lead pitch. Dimensions: 18mm length x 12.5mm height x 7mm width. Maximum operating temperature of 110°C. Polypropylene dielectric providing self-healing characteristics.
X2 suppression class compliant for EMI suppression. Lead diameter of 0.8mm for secure connections. Conforms to EN and IEC 60384-14 series standards. Manufactured in India supporting quality assurance.
This capacitor is widely used in industrial electronic circuits, power supplies, and filtering applications requiring reliable capacitance and EMI suppression. Its design ensures long-term stability and performance in demanding environments.
Explore more high-quality components in the Electronics Components category on EnvMart for your manufacturing and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance rating of this model is 220 nanofarads (nF).
It is rated for 305 volts AC and 305 volts DC.
The maximum operating temperature is 110 degrees Celsius.
This model features a through hole mounting type with a lead pitch of 15mm.
The dimensions are 18mm in length, 12.5mm in height, and 7mm in width.
The lead diameter is 0.8mm.
It belongs to the X2 suppression class, suitable for EMI suppression tasks.
It is constructed using polypropylene dielectric material, which enhances self-healing properties.
It conforms to the EN 60384-14:2014/A1:2016 and IEC 60384-14:2013/AMD1:2016 standards.
It is suitable for industrial electronic circuits, power supplies, and EMI suppression in various electronic applications.
This capacitor is manufactured in India, ensuring quality and compliance.
This model has 2 pins.
