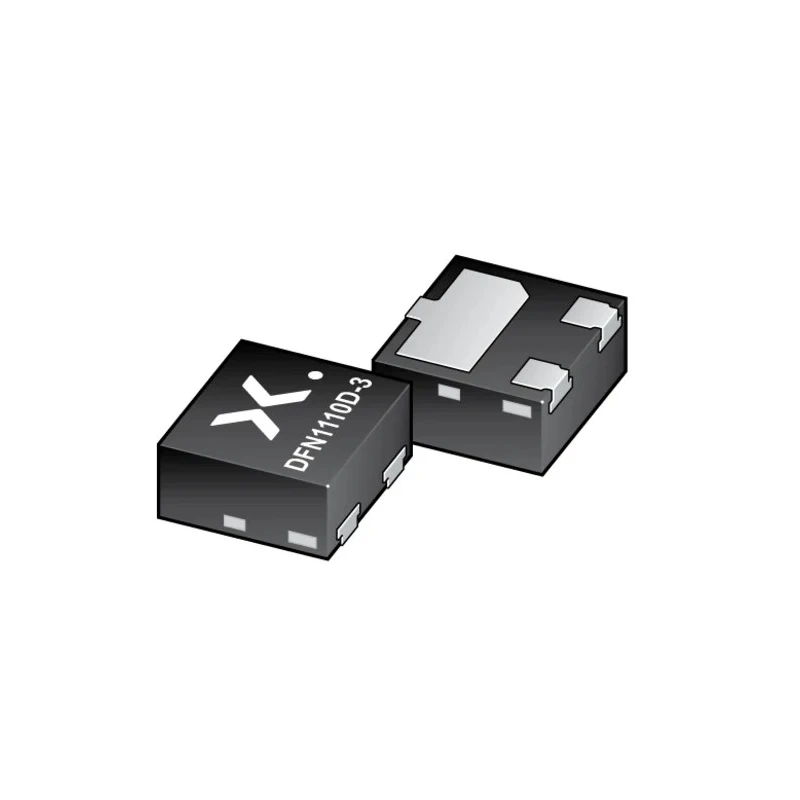

Nexperia Bipolar Transistor PNP 500 mA, 45 V, Surface Mount DFN1110D-3 3-Pin BC807-25QBZ

Nexperia BC807-25QBZ is a bipolar PNP transistor designed for general purpose electronic applications with a maximum collector current rating of 500 mA and maximum collector-emitter voltage of 45 V. It is housed in an ultra-small DFN1110D-3 (SOT8015) leadless surface-mount device package that features side-wettable flanks enabling high reliability soldering and inspection.

The transistor offers high power dissipation capability combined with three selectable current gain options, making it suitable for diverse circuit design demands. Its low 0.5 mm package height supports compact PCB layouts while enhancing thermal performance.

Qualification to AEC-Q101 automotive standard enables use in demanding automotive systems where reliability under harsh environmental conditions is critical. The device is fully RoHS compliant and supports automated optical inspection (AOI) for production quality assurance.

Typical uses include switching, amplification, and driver circuits within industrial, automotive, and consumer electronics sectors. Its small form factor is optimized for surface mount technology manufacturing processes.

High current capability suitable for general purpose applications. Low package height of 0.5 mm for compact designs. Quality and reliability ensured by automotive standard AEC-Q101 certification. Enhanced production yield with AOI-friendly packaging.

Wide operating temperature range from -55°C to 150°C for robust industrial performance. Three current gain selections for matching various application needs. RoHS directive compliance for environmental safety. Compact 3-pin DFN1110D-3 package footprint.

Surface mount technology compatibility. Ideal for automotive, industrial, and electronic circuit applications. Explore an extensive range of Bipolar Transistors and semiconductors from leading manufacturers for your next design at EnvMart.
