| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BC807-40QCZ |
| Mount Type | Surface |
| Series | BC807QB-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -45V |
| Minimum DC Current Gain hFE | 250 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -5V |
| Maximum Collector Base Voltage VCBO | -50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | PNP |

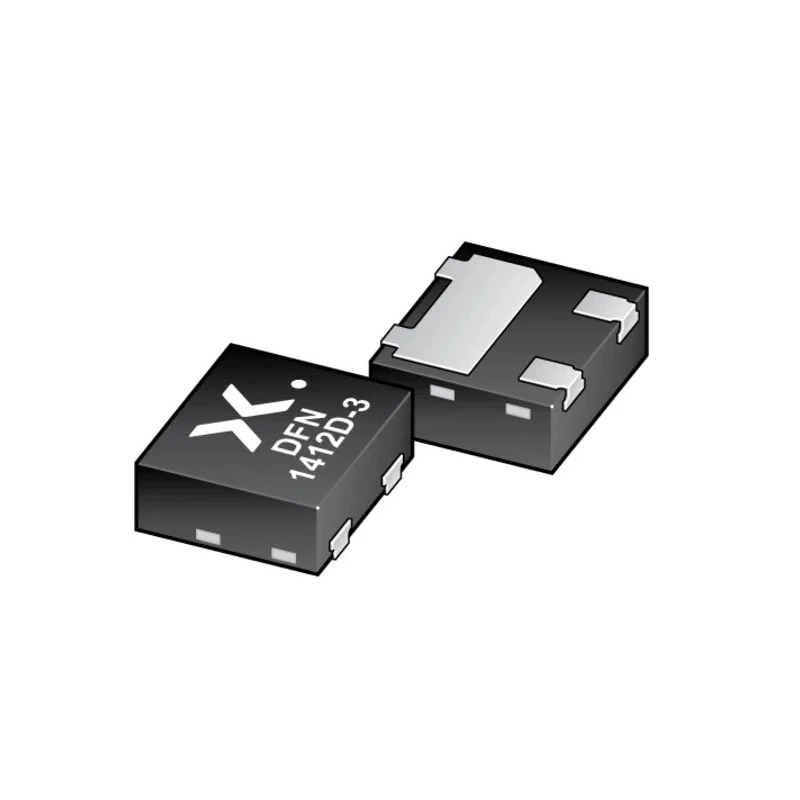

Nexperia BC807-40QCZ is a bipolar PNP transistor designed for a wide range of electronic applications, providing a maximum DC collector current of 500 mA and a maximum collector emitter voltage of 45 V. It features a 3-pin DFN1412D-3 leadless surface-mount package with side-wettable flanks for improved solder joint inspection and long-term reliability.
This transistor supports high power dissipation and comes with three gain selections, making it suitable for various amplification and switching tasks in consumer electronics, automotive circuits, and industrial devices.
The Nexperia BC807-40QCZ is built to meet AEC-Q101 automotive standards, ensuring robust operation over the wide temperature range of -55°C to 150°C. The package's low profile of 0.5 mm helps in achieving compact and lightweight device designs.
The device is compliant with RoHS environmental regulations, making it suitable for environmentally conscious manufacturing and products. The transistor utilizes a PNP configuration with maximum DC collector current of 500 mA.
Maximum collector emitter voltage of 45 V supports medium voltage circuit requirements. Surface mount DFN1412D-3 package allows for automated assembly in high-density PCBs. Side-wettable flanks enable automatic optical inspection (AOI) of solder joints for quality control.
Minimum DC current gain (hFE) of 250 enhances amplification efficiency. Wide operating temperature range and automotive qualification improve durability in harsh environments. Three gain selections allow for flexible circuit design options.
This Nexperia bipolar transistor is ideal for industrial, automotive, consumer electronics, and power management applications requiring reliable switching and signal amplification. Its compact package and robust specifications allow integration in space- and efficiency-sensitive electronic devices.
Explore the full range of Bipolar Transistors and semiconductors at EnvMart for your electronic component needs.
