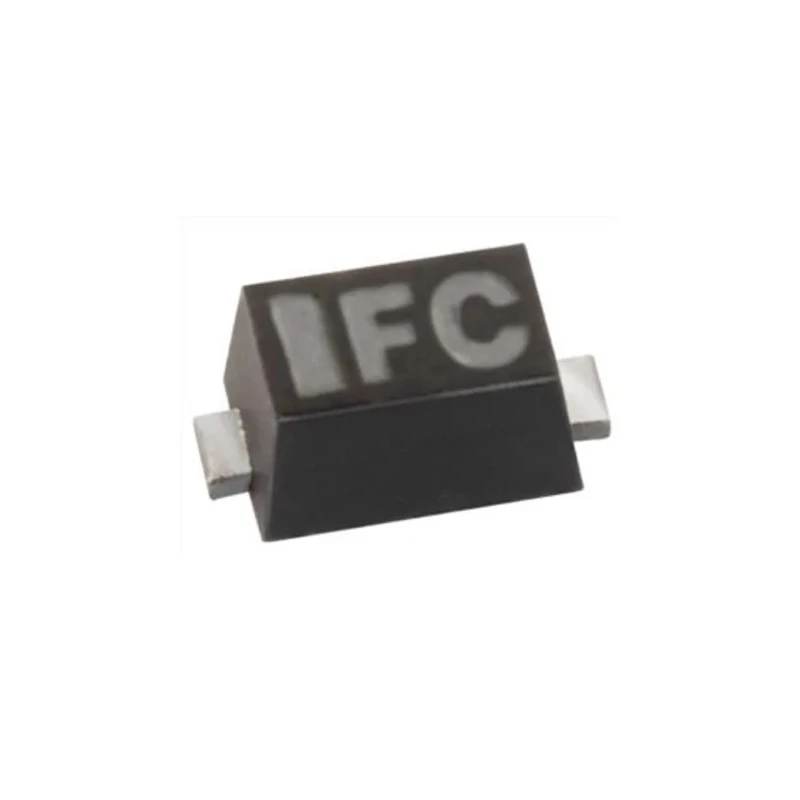

Vishay 6.2 V Nominal Zener Diode, Single Small Signal Surface Mount SOD-523 200 mW ±5% BZX584C6V2-HG3-08

Free Delivery in India | Lowest Global Shipping Charges

Vishay 6.2 V Nominal Zener Diode, Single Small Signal Surface Mount SOD-523 200 mW ±5% BZX584C6V2-HG3-08

Name: Vishay 6.2 V Nominal Zener Diode, Single Small Signal Surface Mount SOD-523 200 mW ±5% BZX584C6V2-HG3-08
Brand: Vishay
SKU: 112289
Price: 20.22 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	0.9mm
Length	1.3mm
Model	BZX584C6V2-HG3-08
Mount Type	Surface
Series	BZX584C
Maximum Operating Temperature	175°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	3μA
Nominal Zener Voltage Vz	6.2V
Zener Type	Small Signal

Key Features

Single diode configuration for precise voltage regulation.
Small signal type packaged in compact SOD-523 surface mount format.
Maximum power dissipation rating of 200 mW ensures reliable operation.
Nominal Zener voltage of 6.2 volts with ±5% tolerance provides voltage stability.
Test current specified at 5 mA for consistent performance.
Maximum reverse leakage current of 3 microamperes minimizes leakage losses.
Operating temperature range from -65°C to 175°C suits harsh environments.
Compliant with RoHS standards and meets automotive AEC-Q101 certification.

Product Description

Vishay BZX584C6V2-HG3-08 is a single small signal Zener diode designed for surface mount applications in electronics and semiconductor devices. This diode features a nominal Zener voltage of 6.2 V with a tight tolerance of ±5%, making it suitable for voltage regulation and reference purposes in compact circuits.

The diode is housed in a tiny SOD-523 plastic package, optimized for space-sensitive applications. With a maximum power dissipation of 200 mW, it provides dependable operation under moderate power loads.

Electrical characteristics include a test current of 5 mA and a maximum reverse leakage current of just 3 microamperes, ensuring low leakage and stable voltage regulation.

Temperature ratings from -65°C minimum up to 175°C maximum allow use in demanding industrial, automotive, and electronic environments. The diode meets RoHS compliance and is AEC-Q101 automotive qualified, supporting reliability in automotive electronics.

Typical package dimensions are 1.3 mm in length and 0.9 mm in height, enabling use in compact circuit board assemblies where saving PCB real estate is critical. Single diode configuration for voltage regulation in electronic circuits.

Compact SOD-523 surface mount package suitable for space-constrained designs. Rated for maximum power dissipation of 200 mW to support different applications. Nominal Zener voltage of 6.2 V with ±5% tolerance ensures stable performance.

Low reverse leakage current enhances efficiency and reduces power losses. Wide operating temperature range supports industrial, automotive, and consumer electronics. RoHS compliant and AEC-Q101 automotive qualified for industry standards adherence.

Small package size aids integration in modern miniaturized electronics. Ideal for use in voltage reference, voltage regulation, and clipping circuits.

This Vishay Zener diode is recommended for applications in power management circuits, voltage stabilizers, industrial electronics, automotive electronic control units, telecommunications equipment, and other systems requiring a reliable voltage reference.
