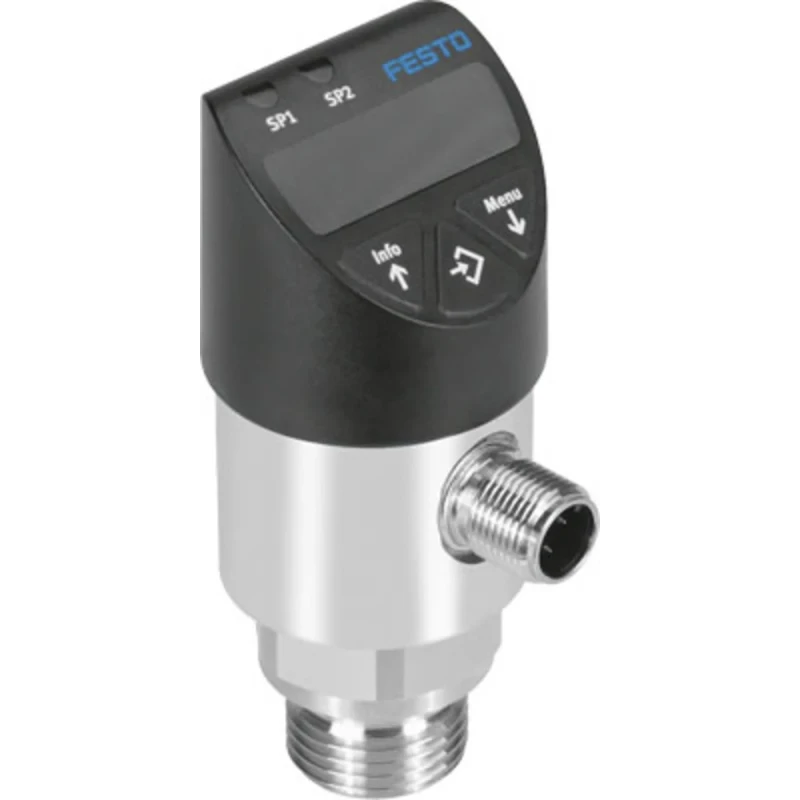

Festo Pressure Sensor, IP67, IP65 Rated, 10 bar Maximum Operating Pressure, 35V DC Voltage, 80°C SPAW-P10R-G12M-2PA-M12

The Festo SPAW-P10R-G12M-2PA-M12 Pressure Sensor is an industrial-grade pneumatic sensor engineered to measure media pressures including air, gas, and liquid under varying pressure types such as differential, vacuum, and relative pressure. It supports a pressure range from 0 bar up to a maximum of 10 bar, and operates reliably with a 35V DC voltage supply. Designed for durable performance, this sensor carries IP67 and IP65 ingress protection ratings allowing it to operate in harsh environments and withstand water and dust ingress.

This sensor is mounted using a screw mount type and features a G 1/2 port size with R (PT), GPT, and NPT connection thread standards. Its electrical interface uses an open-end connection along with an M12 A coded plug connector, facilitating secure and easy installation. The device includes a switchable element with two PNP outputs that can be configured for normally open or normally closed contact states, along with an analogue output range of 4mA to 20mA.

A key highlight is the 4-digit, 320° rotatable LED digital display that clearly presents numerical percentage pressure readings, enhancing usability in monitoring and diagnostics. The sensor’s accuracy is ±1% of Full Scale, ensuring precise pressure readings critical for industrial process controls.

Built for applications such as high pressure pneumatic systems and liquid media pressure monitoring, the sensor complies with RoHS standards and is manufactured in Germany, assuring quality and reliability. It supports a service temperature range from 0°C to 80°C.

Its robust protection ratings and flexible connectivity make this sensor ideal in diverse industrial, hydraulic, pneumatic, laboratory, and manufacturing settings requiring reliable pressure measurement and control.

Measures differential, vacuum, and relative pressure up to 10 bar. Suitable for air, gas, and liquid media. 35V DC operating voltage with screw mounting. G 1/2 thread connection supporting R (PT), GPT, NPT standards. IP67 and IP65 rated for dust and water protection.

320° rotatable 4-digit LED digital display for pressure readout. Switching outputs: 2 PNP type with normally open/closed contacts. Open-end electrical connection with M12 coded plug. High precision accuracy of ±1% Full Scale.

RoHS certified and manufactured in Germany.
