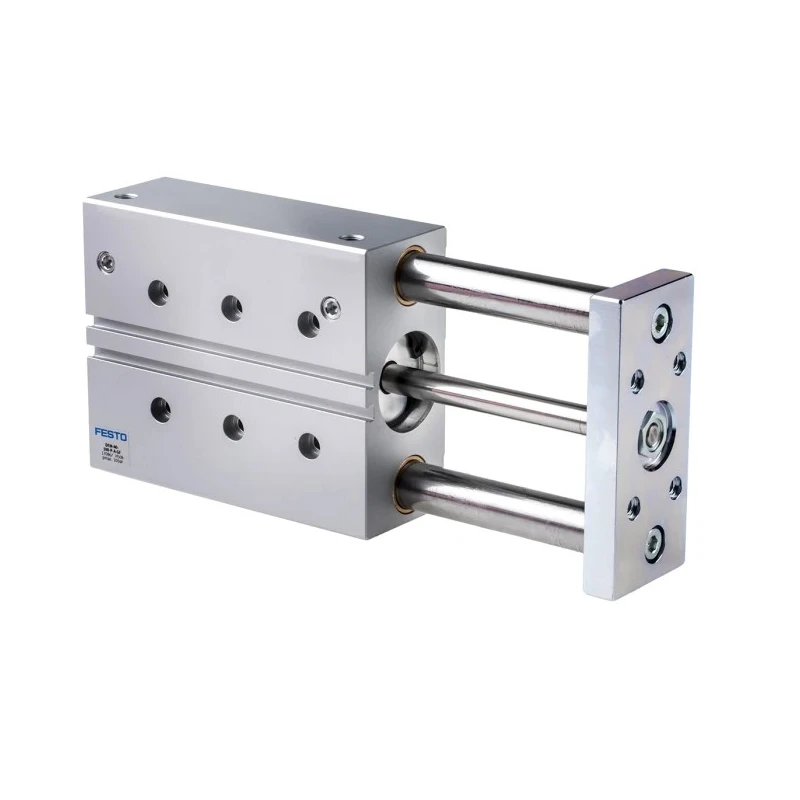

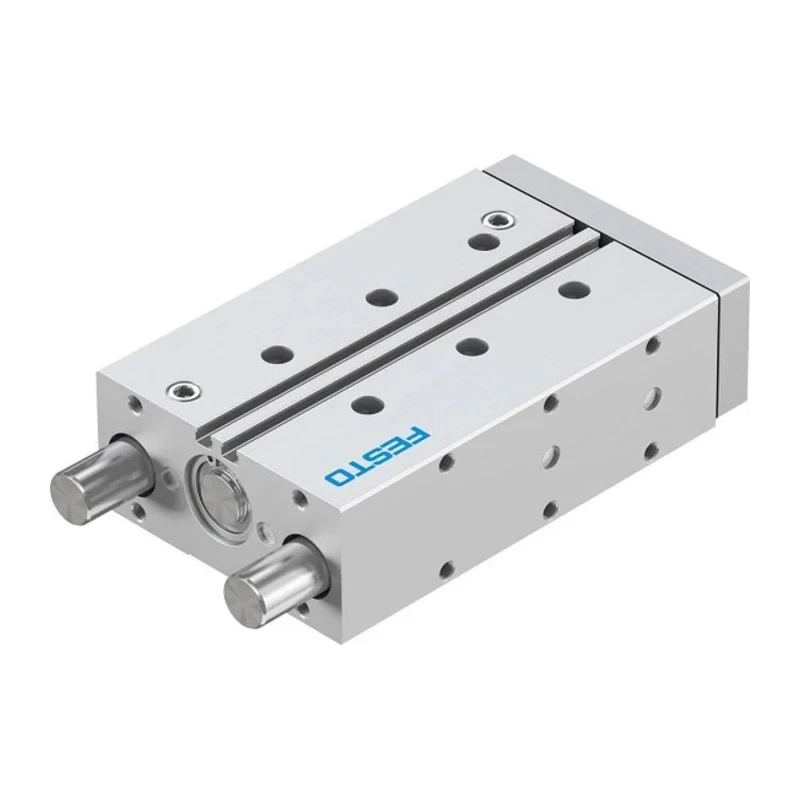

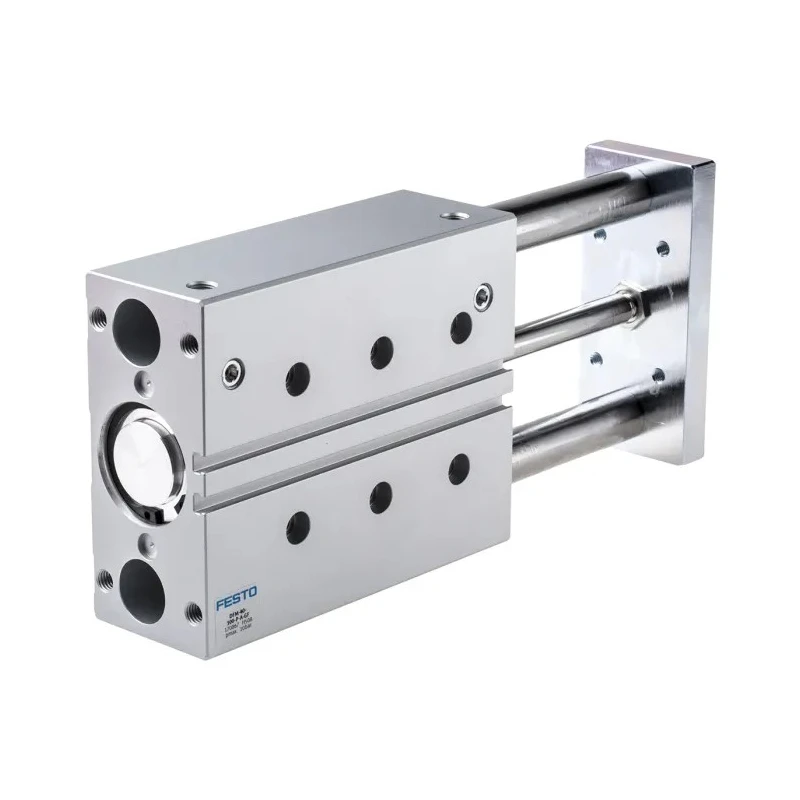

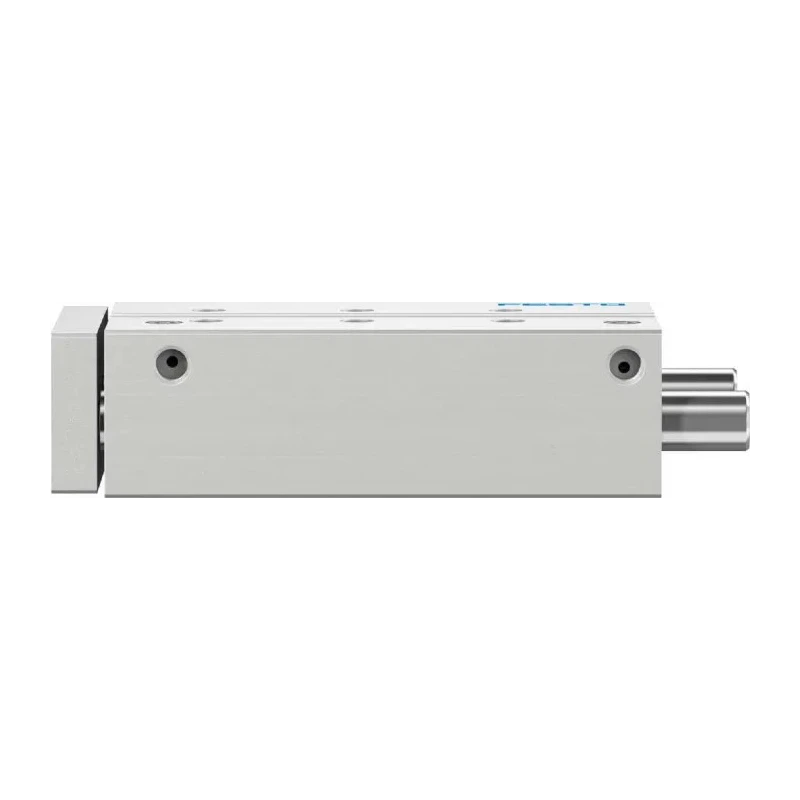

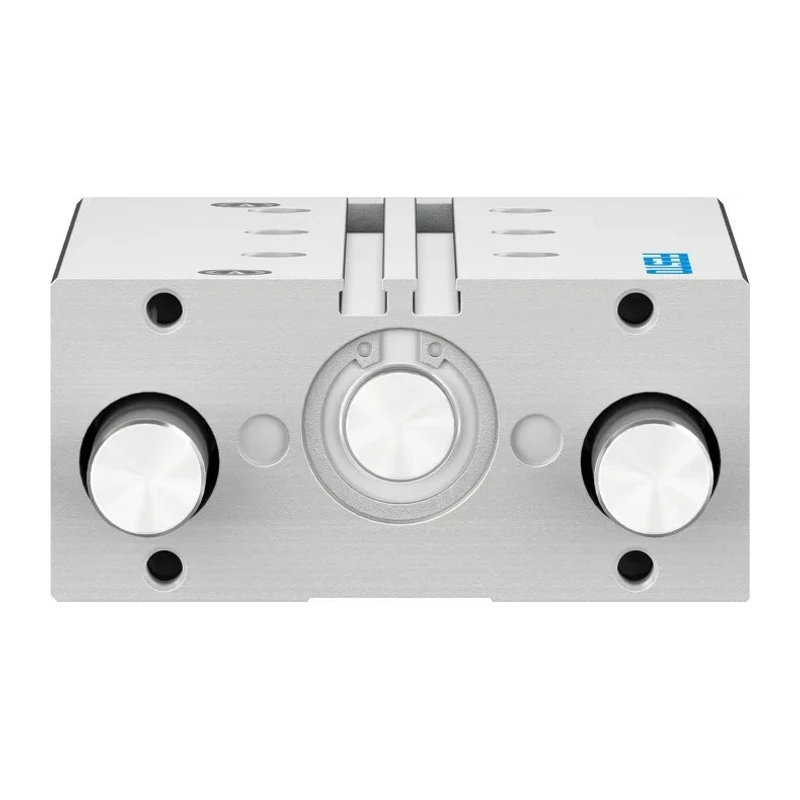

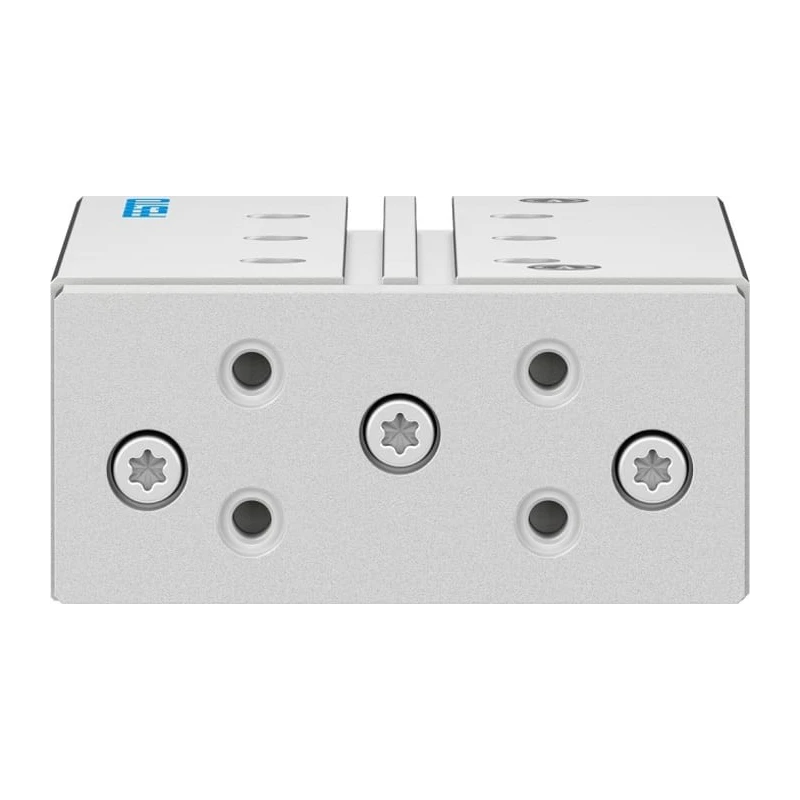

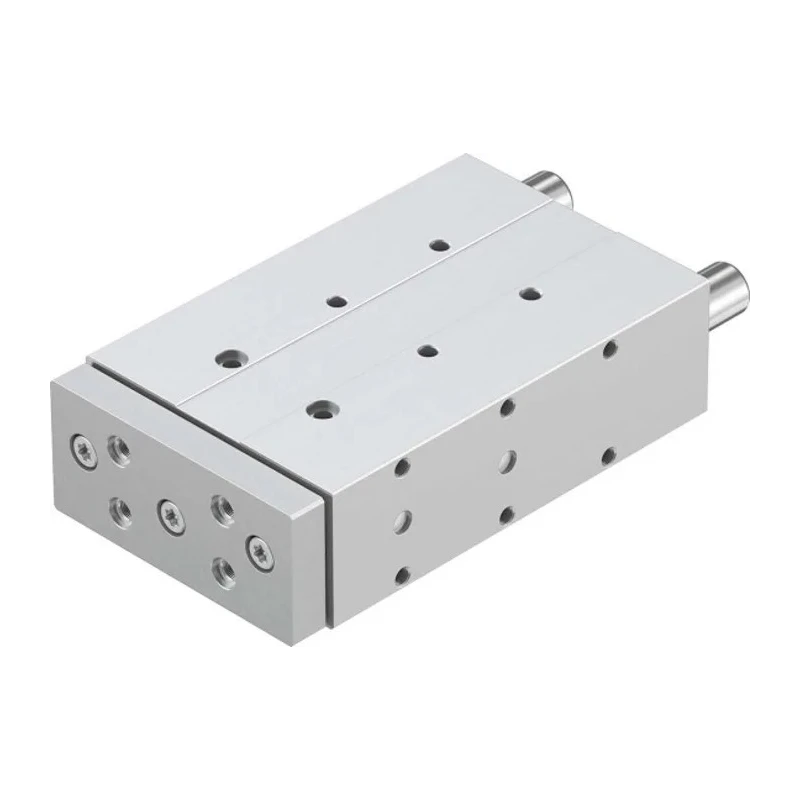

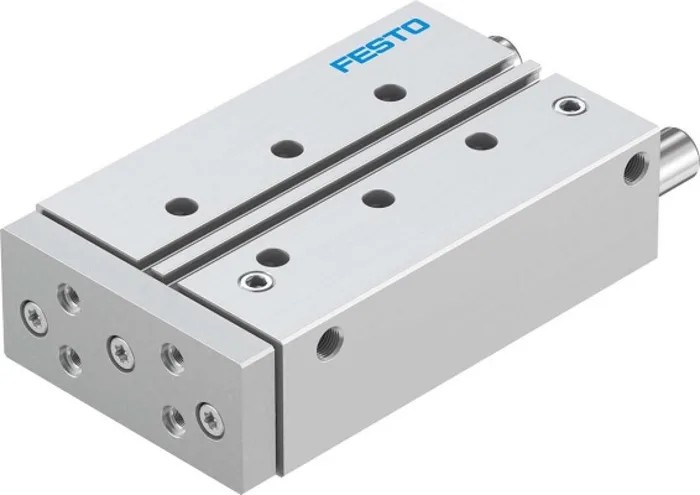

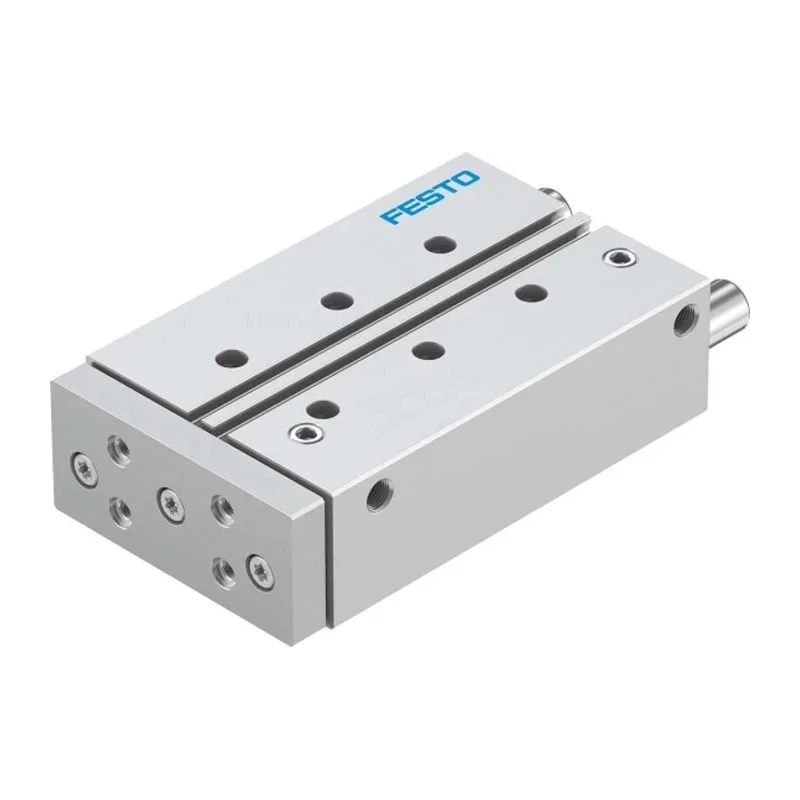

Festo Pneumatic Guided Cylinder 40mm Bore, 100mm Stroke, Double Acting, Anodised Aluminium Body, DFM-40-100-P-A-GF

The Festo DFM-40-100-P-A-GF Pneumatic Guided Cylinder combines robust engineering with precision motion, making it the ideal choice for applications that require consistent, guided output in industrial settings. Featuring a 40mm bore and 100mm stroke, this double acting actuator is designed for high performance, supporting up to 1227N of force at a maximum operating pressure of 10 bar. Its body is crafted from anodised wrought aluminium alloy, providing exceptional resistance to torque, lateral forces, and corrosion.

Engineered with plain and ball bearing guides, the cylinder delivers smooth, stable linear motion suited for production lines, material handling, and process automation. The high-alloy steel piston rod resists corrosion in damp environments, while the elastomer cushioning at both ends mitigates mechanical impact and reduces operational noise.

Festo’s advanced guided cylinder integrates seamlessly with automated systems, supporting proximity sensors from the SMT or SDBT series. Standard ISO G1/8 threads and through-hole mounting provide straightforward installation, ensuring compatibility with existing pneumatic designs.

Delivers 1227N of controlled force for demanding automation tasks. Double acting operation for superior accuracy in repetitive cycles. 40mm bore, 100mm stroke for versatility in packaging, conveying, and process lines. Anodised aluminium body and high-alloy steel rod maximize durability.

Elastomer cushioning ensures smooth end-of-stroke deceleration and quiet operation. Compatible with ball- and plain-bearing guides for excellent linear stability. Temperature-resistant from -20°C to +80°C for a wide range of industrial environments.

Designed for 10 bar operation, accepting ISO standard G1/8 connections. Works effectively with existing automation when combined with appropriate sensors.

Typical applications include component positioning, load transferring, packaging operations, and sorting in industries such as manufacturing, logistics, food and beverage, and process automation. The unit’s rugged build quality and high repeatability make it suitable for continuous industrial, laboratory, and production facility use.

Package includes one Festo DFM-40-100-P-A-GF Pneumatic Guided Cylinder. For alternative sizes or compatible accessories, explore the full Festo range in EnvMart’s Pneumatic Guided Cylinders category.
