SMC Pneumatic Compact Cylinder 20mm Bore, 15mm Stroke, Double Acting, Aluminium Alloy Body, CQ2B20-15D

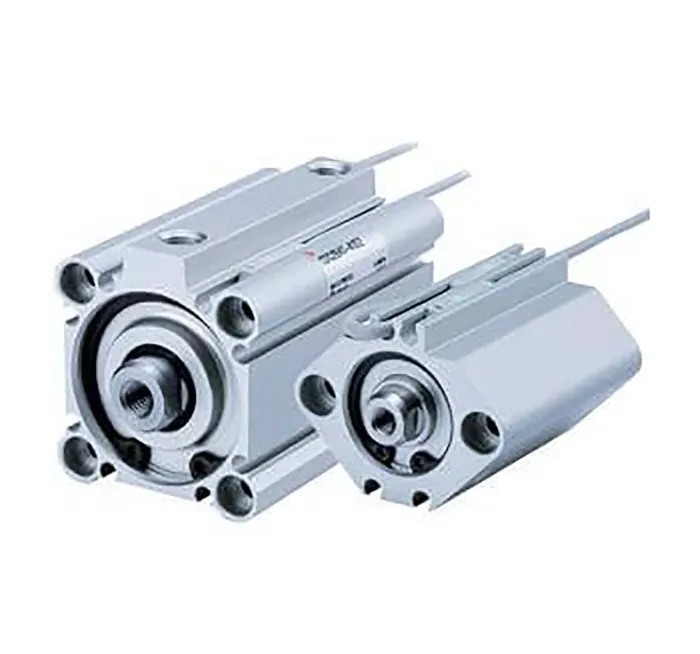

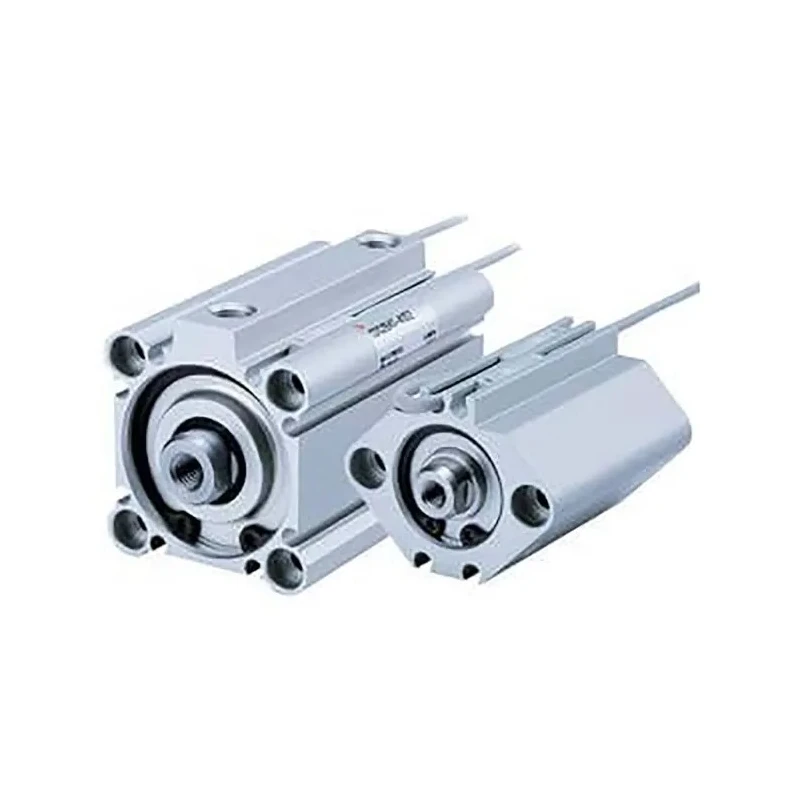

SMC CQ2B20-15D Pneumatic Compact Cylinder represents a highly efficient solution for linear actuation in automation, packaging, and machinery control systems. Combining a compact design with robust functionality, this cylinder features a 20mm bore diameter and 15mm stroke, supporting precise motion in restricted spaces.

As a double acting pneumatic cylinder, it utilizes air pressure on both sides of the piston to achieve fast, reliable movement in both directions. The aluminium alloy body provides excellent durability, corrosion resistance, and light weight, ensuring dependable performance even in demanding industrial environments.

The male piston rod is equipped with metric threading, allowing for secure and flexible mounting. Through hole mount configuration simplifies installation, aligning perfectly with the requirements of modern automated assemblies and manufacturing lines.

This model supports a maximum operating pressure of 1 MPa and a maximum piston speed of 500 mm/s, delivering responsive actuation. The cylinder's wide operating temperature window, from -10°C to 70°C, permits use in various climates and process environments. Its compact height of 36mm and width of 39mm make it suitable for space-limited settings, such as robotics, semiconductor assembly, and material handling equipment.

Designed with versatile port thread options for different bore sizes, the CQ2 Series allows for easy integration in pneumatic systems. Small auto switches can be mounted on four surfaces, enhancing control and monitoring flexibility for industrial automation.

The single rod configuration and robust construction guarantee accurate linear motion over many actuation cycles.

Industrial sectors including manufacturing, automation, food processing, packaging, and laboratory equipment benefit from the CQ2B20-15D. Its compact size, precise performance, and flexible mounting suit both new systems and replacement applications requiring high-quality pneumatic actuators.

Compact double acting pneumatic cylinder with 20mm bore diameter and 15mm stroke for precise linear movement. Manufactured with an aluminium alloy body for durable performance and corrosion resistance. Features a single male piston rod with metric thread for secure installation.

Through hole mount type enables easy integration in automation assemblies. Rated for maximum operating pressure up to 1 MPa and piston speed of 500 mm/s. Wide operating temperature range, from -10°C to 70°C, suitable for diverse industrial environments.

Can mount small auto switches on four surfaces for flexible sensor deployment. Ideal for machinery, robotics, and pneumatic actuation applications where space is limited. Explore other Pneumatic Cylinders and automation components from SMC in the EnvMart Hydraulic & Pneumatic Tools category.
