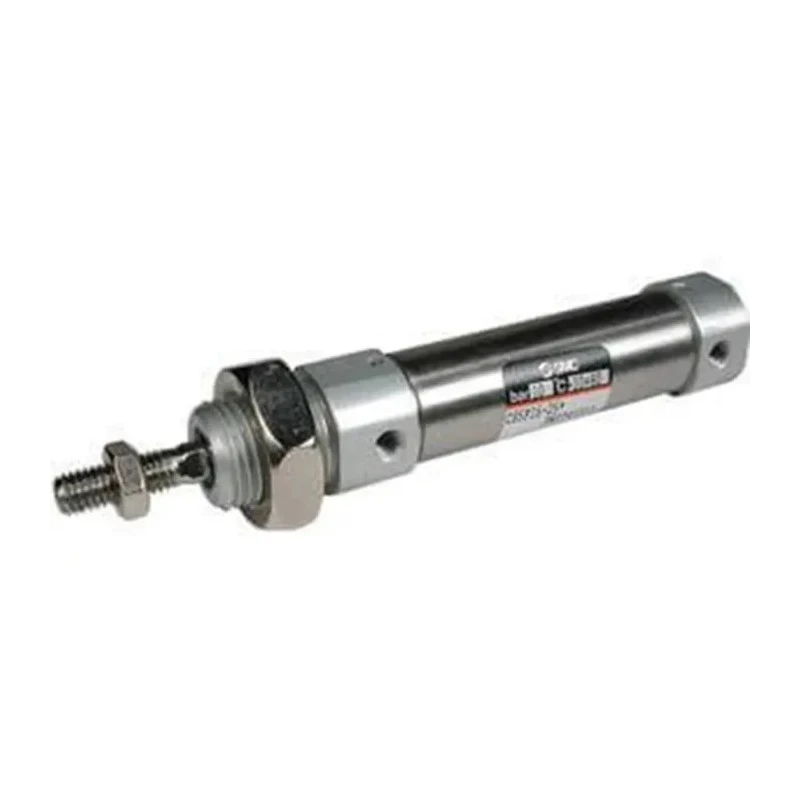

SMC Aluminium Alloy 150 mm Stroke Double Acting Cylinder with Clevis Mounting and Rubber Bumper Cushion CD85
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 150mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M8 |
Key Features
- Double acting operation allows controlled push and pull movements.
- Clevis mounting provides articulated pivoting connection for linkages.
- Rubber bumper cushions reduce impact forces at stroke limits.
- Piston rod is male threaded M8 metric standard for attachment versatility.
- Supports maximum piston speed of 1500 mm/s for high-cycle industrial applications.
- Body made of lightweight yet rigid aluminium alloy for durability.
- Compatible with ISO 6432 bore profiles ensuring interchangeability.
- Rated for continuous operating temperatures up to 80°C.
Product Description
SMC CD85N20-150-B is a double acting pneumatic cylinder featuring a 150 mm stroke and a robust aluminium alloy body. This cylinder delivers precise linear motion through pneumatic actuation, suitable for a wide range of industrial automation and mechanical system applications.
Equipped with a clevis mount, it enables pivoting linkage attachment for articulated movements and is designed to withstand continuous operation up to 80°C. The unit incorporates rubber bumpers that cushion strokes to minimize impact forces and extend component life.
Its M8 male metric threaded piston rod allows standard attachments and is designed for high piston speeds up to 1500 mm/s, making it ideal for rapid cycle operations. The CD85 series meets ISO 6432 standards for easy interchangeability and system compatibility.
This cylinder is widely applied in industrial settings such as assembly line pick-and-place tasks, valve actuation in process control panels, lightweight robotic end-effector actuation, clamping and releasing in test rigs, and pneumatic press operations requiring moderate stroke lengths.
Double acting operation enables push and pull motion control. Clevis mounting facilitates articulated pivot points for linkages. Rubber bumper cushioning protects against end-of-stroke impact. 150 mm stroke length provides repeatable linear travel.
Aluminium alloy construction balances strength with reduced weight. M8 metric-thread piston rod offers flexible attachment options. Supports piston speeds up to 1500 mm/s for rapid cycles. ISO 6432 compatibility ensures interchangeability with similar cylinders.
Maximum operating temperature rating of 80°C allows use in moderately warm environments.
Choose the SMC CD85N20-150-B double acting cylinder when reliability, precise pneumatic motion, and robust construction are required. Explore our category for more pneumatic piston rod cylinders suited for industrial automation.
Explore more products in our Pneumatic Cylinders & Actuators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 150 mm, allowing for precise linear travel in various applications.
It features a clevis mounting type, which provides an articulated pivoting connection for linkages.
The maximum operating temperature rating for this cylinder is 80°C, making it suitable for moderately warm environments.
The body of this cylinder is made from aluminium alloy, which balances strength with reduced weight.
This model operates as a double acting cylinder, allowing controlled push and pull movements.
The piston rod is male threaded with an M8 metric standard, providing versatility for attachments.
It meets ISO 6432 standards, ensuring interchangeability with similar cylinders in the market.
This model incorporates rubber bumpers that cushion strokes to minimize impact forces at stroke limits.
It supports a maximum piston speed of 1500 mm/s, suitable for high-cycle industrial applications.
It is widely applied in industrial settings such as assembly line pick-and-place tasks, valve actuation, and pneumatic press operations.
The clevis mounting facilitates articulated pivot points, enhancing the flexibility of linkage attachments for various movements.
This cylinder features a single rod type, which is standard for double acting pneumatic cylinders.
