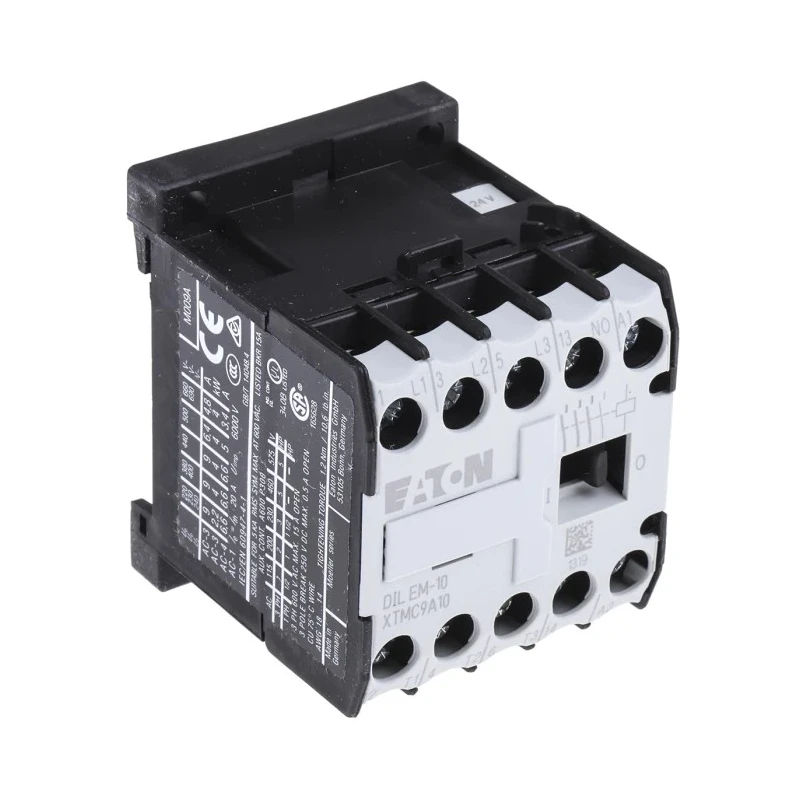

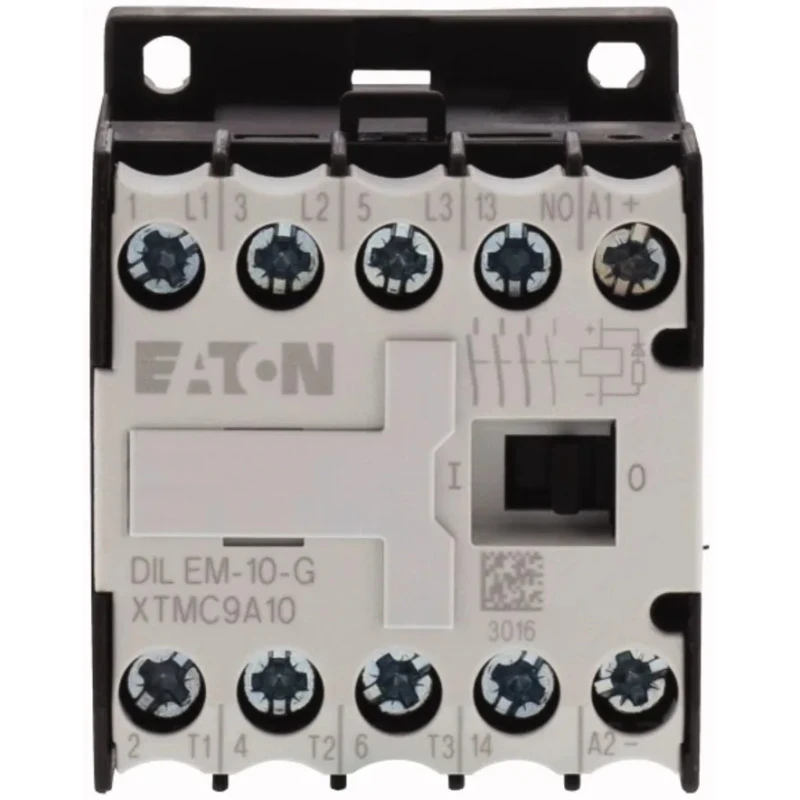

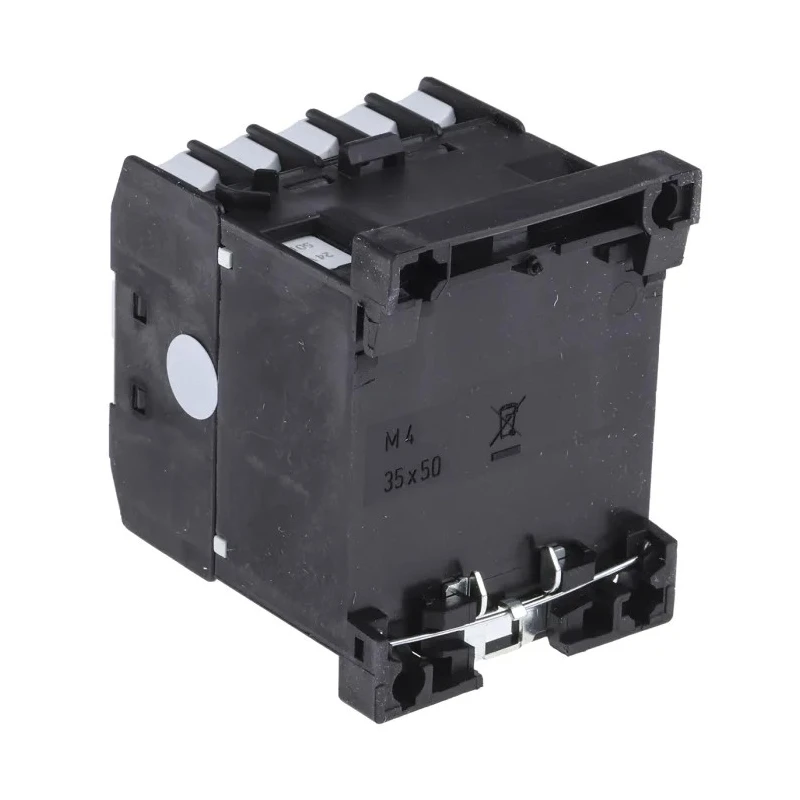

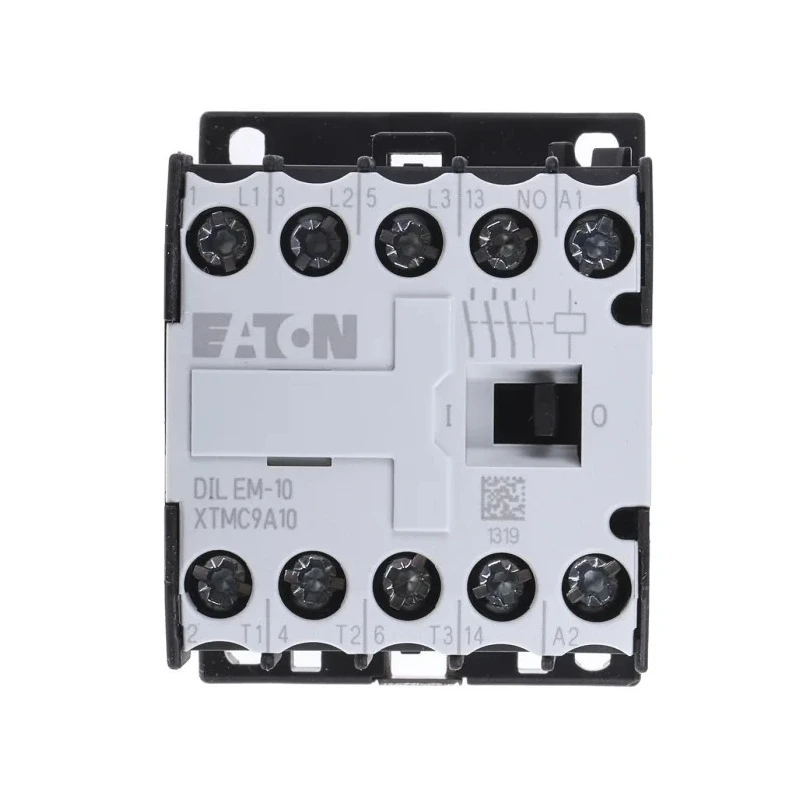

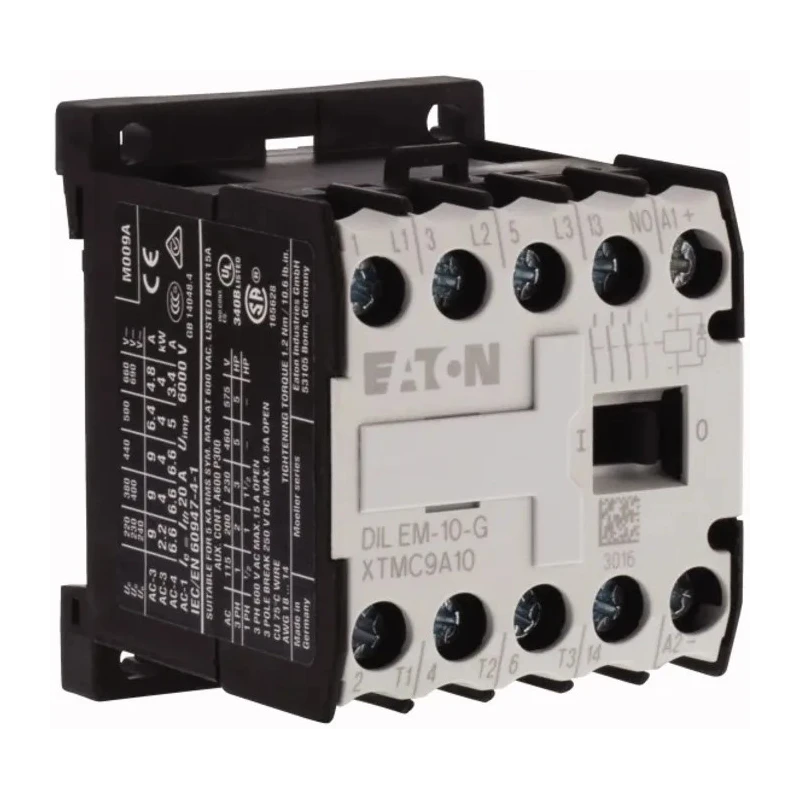

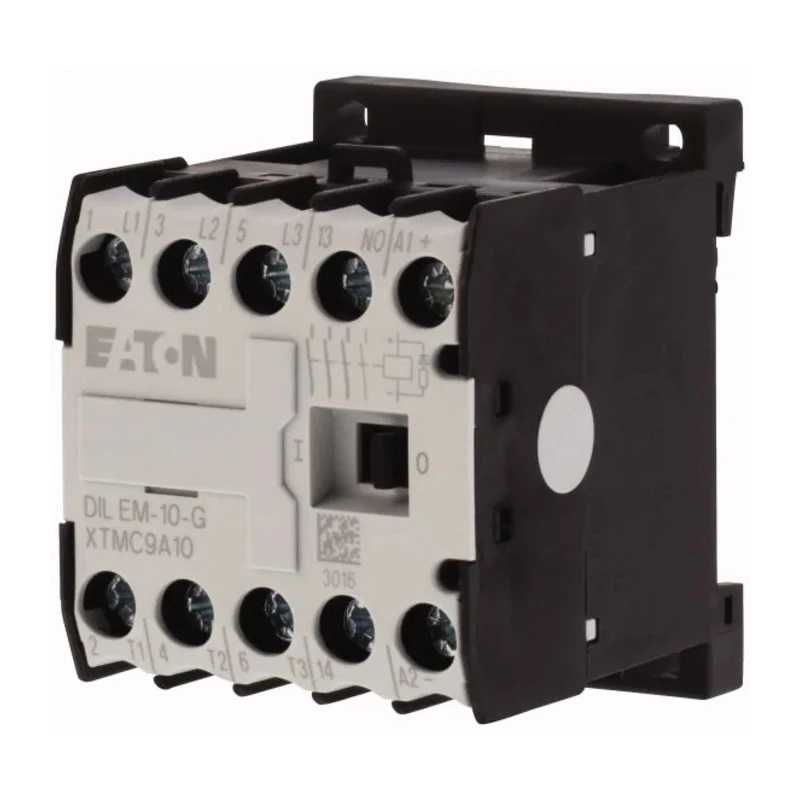

Eaton 24V AC Coil 3-Pole Contactor, 9 A, 4 kW Power Rating, Screw Mount Type 010005 DILEM-10(24V50HZ)
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | 010005 DILEM-10(24V50HZ) |
| Depth | 83mm |
| Width | 45mm |
| Mount Type | Screw |
| Series | DILEM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3P |
| Eaton Contactor, 400 V Coil, 3-Pole, 9 A, 4 kW, 1NOBrand | Eaton |
| RS PRO Contactor, 24V ac Coil, 3-Pole, 9 A, 4 kW, 3V, 400 VRS Stock No. | 277-8398Brand: RS PRO |
Key Features
- The contactor has a durable screw mount type ensuring secure installation.
- It includes 3 normally open (NO) contacts and one normally open auxiliary contact for flexible switching.
- Designed to operate reliably between -25°C and 40°C ambient temperatures.
- Complies with multiple standards including VDE 0660, UL, IEC/EN 60947, and CSA.
- Compact dimensions of 58mm length, 45mm width, and 83mm depth facilitate easy integration.
- The IP20 rated enclosure protects against finger access and objects larger than 12mm.
- Insulated screw terminals ensure safety and minimize maintenance.
Product Description
Eaton 010005 DILEM-10(24V50HZ) 3-Pole Contactor with 24V AC coil voltage and 9 A contact current rating is engineered for motor control and resistive load applications in industrial and commercial electrical systems.
This contactor is designed for reliable and rapid switching to control high current loads, with a power rating of 4 kW and compliance with international standards such as VDE 0660, UL, IEC/EN 60947, and CSA, ensuring safety and robustness.
The screw mount type and durable screw terminals provide secure connections that reduce maintenance efforts. It features three normally open contacts along with one normally open auxiliary contact, offering versatile control circuit configurations.
Operating temperature ranges from -25°C to 40°C allow its use in various environmental conditions. The compact dimensions of 58mm length, 45mm width, and 83mm depth enable easy installation within confined electrical panels.
The IP20-rated enclosure safeguards against accidental contact and intrusion of objects larger than 12mm, enhancing user safety. Insulation on terminals minimizes the risk of electrical shock during handling.
This contactor is ideal for use in industrial motor control systems, HVAC, manufacturing automation, and commercial electrical installations requiring robust and reliable switching performance with 24V AC control voltages.
The contactor has a durable screw mount type ensuring secure installation. It includes 3 normally open (NO) contacts and one normally open auxiliary contact for flexible switching. Designed to operate reliably between -25°C and 40°C ambient temperatures.
Complies with multiple standards including VDE 0660, UL, IEC/EN 60947, and CSA. Compact dimensions of 58mm length, 45mm width, and 83mm depth facilitate easy integration. The IP20 rated enclosure protects against finger access and objects larger than 12mm.
Insulated screw terminals ensure safety and minimize maintenance. Explore more industrial Contactors and control gear products at EnvMart for efficient electrical system management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton 24V AC Coil 3-Pole Contactor has a power rating of 4 kW.
This model has a contact current rating of 9 A.
It features a screw mount type for secure installation.
The contactor is designed to operate reliably between -25°C and 40°C.
This contactor has 3 poles.
It includes 3 normally open (NO) contacts and one normally open auxiliary contact.
It complies with VDE 0660, UL, IEC/EN 60947, and CSA standards.
The dimensions are 58mm in length, 45mm in width, and 83mm in depth.
It features insulated screw terminals for safety and reduced maintenance.
This model is suitable for motor control and resistive load applications in industrial and commercial electrical systems.
The coil voltage for this contactor is 24V AC.
The enclosure is rated IP20, protecting against finger access and objects larger than 12mm.
