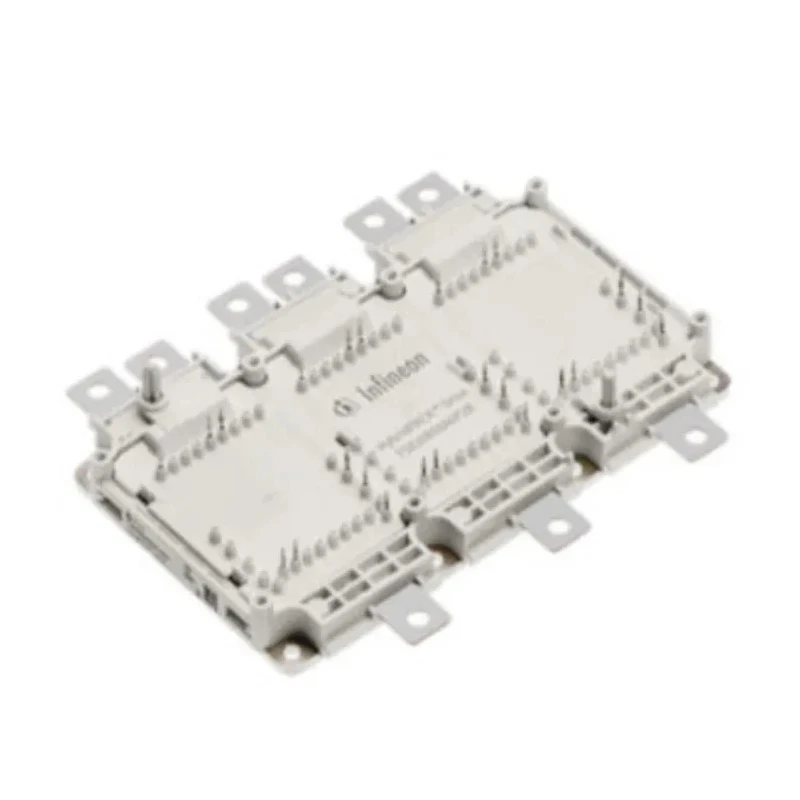

Infineon N-Channel IGBT Module 450 A 750 V 33-Pin AG-HYBRIDD Through Hole FS820R08A6P2LBBPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 26mm |
| Length | 154.5mm |
| Model | FS820R08A6P2LBBPSA1 |
| Width | 100.5mm |
| Mount Type | Through Hole |
| Series | FS820R08A6P2LB |
| Maximum Operating Temperature | 150°C |
| Package Type | AG-HYBRIDD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 33 |
| Maximum Continuous Collector Current Ic | 450A |
| Maximum Collector Emitter Voltage Vceo | 750V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.35V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 20mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Number of Transistors | 6 |
Key Features
- The module features a 450 A maximum continuous collector current rating.
- Designed with a maximum collector-emitter voltage of 750 V for robust power handling.
- Comprises 6 transistors integrated within the hybrid package for efficient switching.
- Equipped with a 33-pin AG-HYBRIDD through-hole mount for reliable PCB assembly.
- Includes integrated NTC temperature sensor for accurate thermal monitoring.
- Operates effectively within a temperature range of -40°C to 150°C.
- Compact form factor measuring 154.5 mm in length, 100.5 mm in width, and 26 mm in height.
- Supports automotive qualified performance for hybrid and electric vehicle power modules.
Product Description
Infineon FS820R08A6P2LBBPSA1 Type N-Channel IGBT Module is a high-performance automotive qualified power module engineered for hybrid and electric vehicle applications as well as industrial power electronics. This 33-pin AG-HYBRIDD through-hole module integrates 6 transistors with a maximum continuous collector current rating of 450 A and a voltage withstand capability of 750 V, making it suitable for high power switching environments.
The module features a compact footprint of 154.5 mm length, 100.5 mm width, and 26 mm height with a direct cooled base plate ensuring effective thermal management. Its operational temperature range of -40°C to 150°C allows reliable performance under harsh environmental conditions.
In addition, this device includes an integrated NTC temperature sensor facilitating real-time temperature monitoring which is critical for automotive and industrial safety systems. The maximum gate-emitter voltage is rated at 20 V, while the collector-emitter saturation voltage is low at 1.35 V, providing efficient switching with reduced power loss.
This IGBT module is RoHS compliant supporting environmentally friendly manufacturing standards. It is specifically designed to support phase current sensor solutions with long AC power terminals for advanced control. Its through-hole mounting style offers robust PCB assembly suitable for various power electronic designs.
The module's high current and voltage ratings enable it to handle demanding power conversion tasks in industrial and automotive sectors. Its compact and integrated design aids in saving PCB space while delivering reliable operation over a wide temperature range.
Direct cooled baseplate technology improves heat dissipation, enhancing module longevity and performance. Integrated temperature sensors provide essential thermal feedback for protective system designs. Compliance with RoHS directives ensures the product meets necessary environmental regulations.
This IGBT module is ideal for applications such as hybrid and electric vehicle inverters, industrial motor drives, renewable energy power converters, and other high-efficiency power switching systems. Discover more power and semiconductor components suited to your industrial design needs by exploring the IGBT Module category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current rating of this model is 450 A.
This IGBT module has a maximum collector-emitter voltage of 750 V.
It operates effectively within a temperature range of -40°C to 150°C.
This model integrates 6 transistors within its hybrid package.
The package type features a pin count of 33.
It utilizes a through-hole mounting style for reliable PCB assembly.
The dimensions are 154.5 mm in length, 100.5 mm in width, and 26 mm in height.
The maximum gate-emitter voltage is rated at 20 V.
The collector-emitter saturation voltage is low at 1.35 V.
Yes, this module is RoHS compliant, supporting environmentally friendly manufacturing standards.
It is designed for applications such as hybrid and electric vehicle inverters, industrial motor drives, and renewable energy power converters.
It includes an integrated NTC temperature sensor for accurate thermal monitoring.
