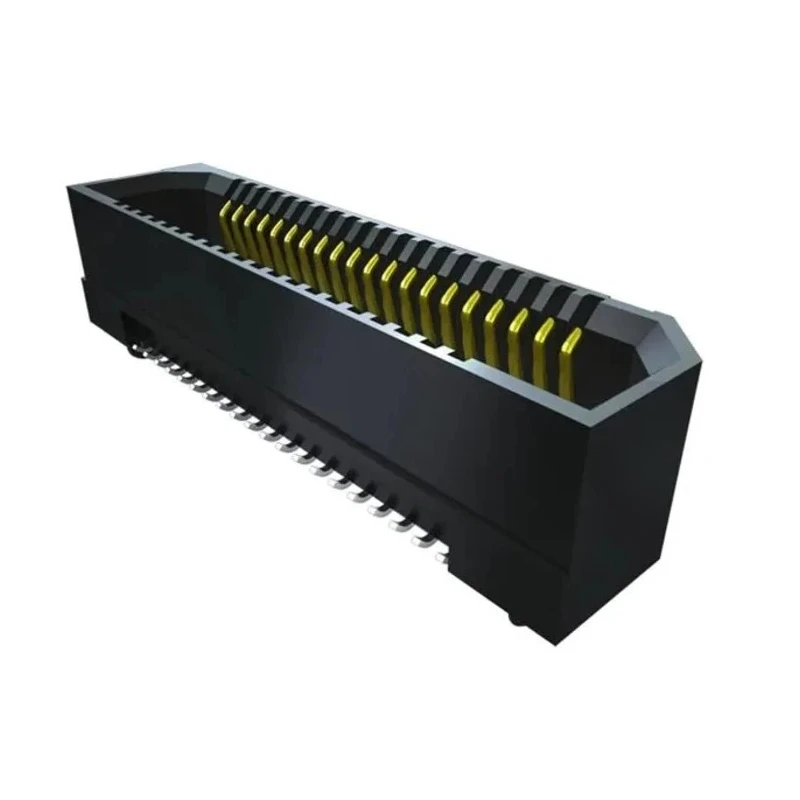

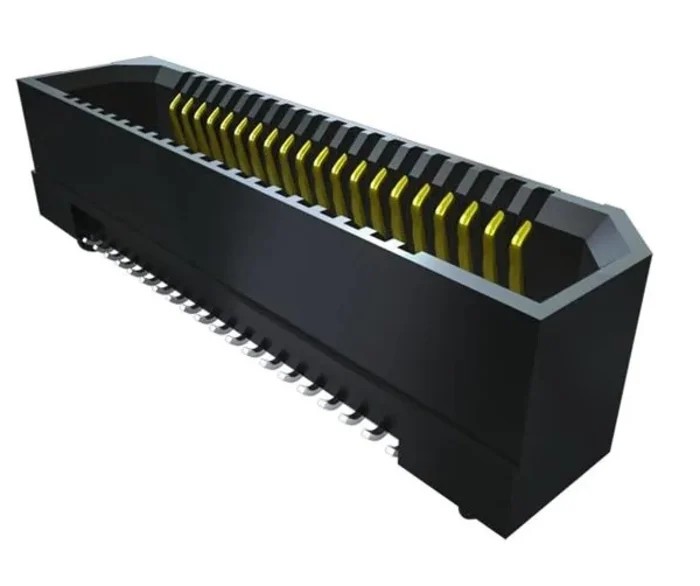

Samtec ERF8 Series Straight Surface PCB Socket 100-Contact 2 Row 0.8mm Pitch Solder

Samtec ERF8-050-05.0-S-DV-L-K-TR is a straight surface PCB socket designed for high-speed, reliable board-to-board electrical connections. This socket features a 0.8 mm pitch with 100 contacts arranged in 2 rows, optimized for solder termination and surface mounting. The housing is made from Liquid Crystal Polymer, offering high durability and thermal stability suitable for industrial electronics assembly.

The contacts are crafted from beryllium copper alloy with a selective 0.000762 mm gold plating that ensures low resistance and excellent corrosion resistance. This design supports a current rating of 2.2A and a voltage rating of up to 318V, making it suitable for a range of electronic equipment operating under demanding conditions.

With a stacking height of 18 mm and a 4.5 mm row pitch, this socket is suitable for compact PCB designs requiring robust connections. It reliably functions within a temperature range of -55°C to 125°C, making it well-suited for industrial, laboratory, construction, manufacturing, and electronic assembly applications.

This product comes in tape and reel packaging to facilitate automated pick-and-place assembly lines, improving throughput and reducing handling damage. The dual row configuration increases connector density while maintaining secure and stable connections.

Its gold-plated contacts and polymer housing ensure longevity and performance in demanding environments. The socket supports a current rating of 2.2A providing efficient electrical performance. Constructed with a Liquid Crystal Polymer housing for robust reliability.

Features beryllium copper alloy contacts plated with gold for excellent conductivity and corrosion resistance. Designed for surface mount with a straight orientation and a stacking height of 18 mm ensuring compact assembly.

Supports a voltage rating up to 318V suitable for various industrial electronic applications. Operates reliably within a temperature range of -55°C to 125°C for harsh environments. Includes dual rows with a 4.5 mm row pitch enhancing connector density and stability.

Offers tape and reel packaging for efficient automated assembly processes. Meets no specific standards or approvals but is ideal for high-speed board-to-board connections. Explore more advanced PCB Sockets and connectors from Samtec in the Electronics Components section at EnvMart for your industrial and commercial electronic assembly needs.
